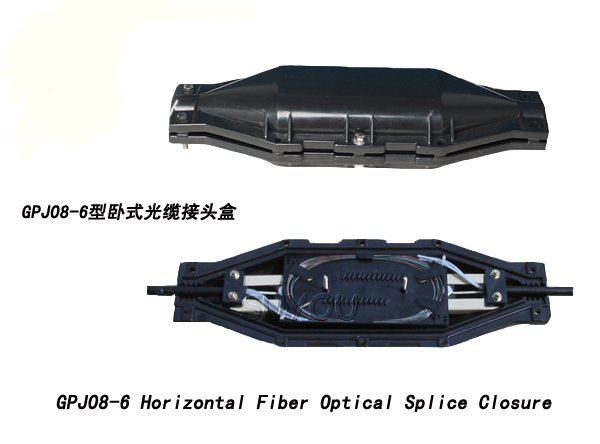

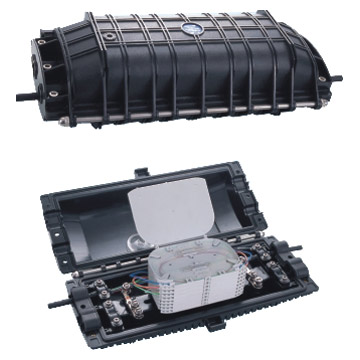

Horizontal Fiber Optical Splice Closure

详情

Horizontal Fiber Optical Splice Closure Product Specification The GTJA****3 Closure allows two cables in and two cables out. It accommodates the splicing and branching of the cable which is used in aerial-hanger, wall-mounting or direct buried. The Closure is an open able box which is made from high-quality PC, and, with the mechanical Sealing Structure fills with sealing materials. The outside structure and tighten pieces are made from stainless steel of good quality. The Closure can be opened and used again by changing the sealing materials after it be sealed. Application: Aerial-hanger, Wall-mounting, Direct Buried Sealing Structure The way of GTJA****3 Fiber Optical Splice Closure with the mechanical Sealing Structure filled with Sticky Cincture Specification Item GTJA****3 Dimension (mm) **2×**2×**4 Weight (Kg) 3.4 Cable Diameter (mm) Φ*-Φ*5 Cable Entry & Exit 2 & 2 Max Capacity of Cores Per Splice Tray *2 (Single) /*4 (Single) / *2 (Ribbon) Max Capacity of Splice Trays / Closure 5(Single, *2 Cores/Tray) / 4 (Single, *4 Cores/Tray) Max Capacity of Cores Single: *0 (*2 Cores/Tray) /*6 (*4Cores/Tray), Ribbon: **4 (6Cores) /**2(8Cores) /**8(*2Cores) Sealing Structure Sticky Cincture
