Infrared webguide sensor work way:

Infrared webguide sensor is used for edge persuit webguide

applications.It transmits the movement of material to infrared

signal,  and then outputs control signal. Pay attention, it only

can be applied for not clear or transparent material.

SS-WSI*1 Infrared webguide sensor  features:
• FPGA ICs inside
• Digital light to electricity ICs inside
• strong anti-electromagnetic interference
• low cost
• small and light
• long service lifetime
• short response time

SS-WSI*1 parameters:
• Power supply                  :DC****4V
• Power consumption        : 0.5W
• Infrared wavelength        : *******0nm
• Detect range                   : *0mm
• Detect precision              : ±0.*5mm
• Output signal                   : 2xNPN + 1xDC**5V

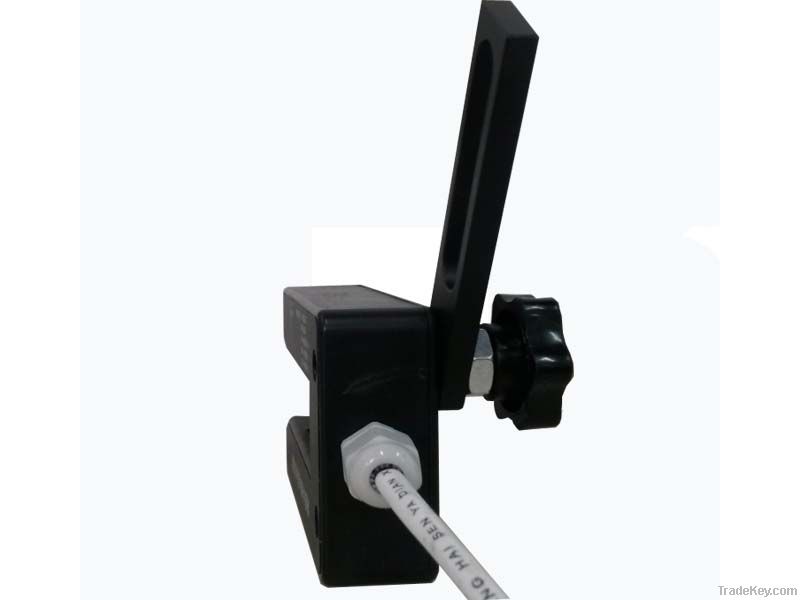

SS-WSI*1 mounting

Using a plum screw and a rectangle aluminium block to fix the

sensor to machine, the rectangle hole in aluminium block helps

to change the distance between sensor and material.

SS-WSI*1 outline & size

**5x*0x*7mm, the gap space is *7x*4mm

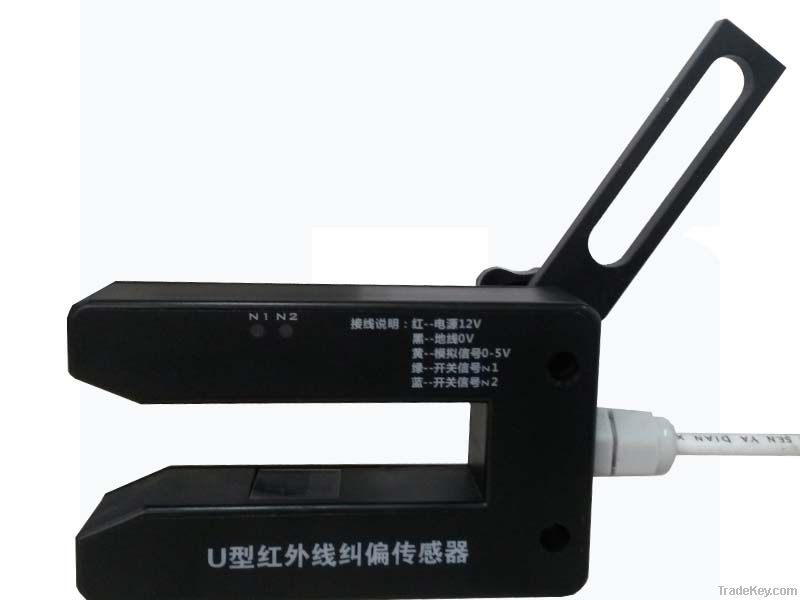

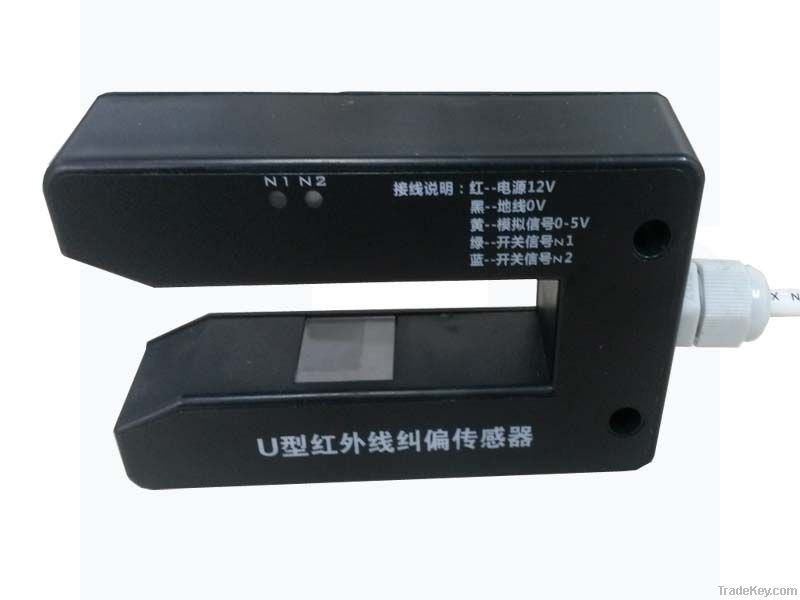

SS-WSI*1 face & signal indication

The N1 N2 leds indicate the output signal.

The wire connection shows how to connect the sensor to

a outside controller according to the wire color.
