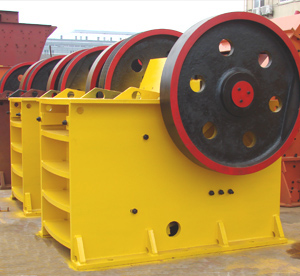

Jaw Crusher

详情

Jaw Crusher Shibo jaw crushers are ideal for primary and secondary crushing. With the increase of production, our jaw crusher can greatly reduce the operating costs. And it is of reliability and flexibility. The large feed opening and force-feeding action from the inward and downward eccentric movement of the swing jaw mean that our jaw crusher can increase the capacity. The jaw has a smaller discharge setting, allowing for a higher degree of flexibility with relative equipment. Positive setting adjustment is easy. This series crusher is applicable for crushing various materials with compression resistance less than **0Mpa in the fields of metallurgical industry, mining, building materials, highway, railway, chemical industry etc. Working Principle of Jaw Crusher: The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet. Characteristics of Jaw Crusher: -High ratio of crushing, -Even final size, -Simple structure, -Reliable working condition, -Easy maintenance, -Low operating cost. Technical Data of Jaw Crusher: Model Max. Feeding Size (mm) Discharge Size (mm) Capacity (t/h) Motor Power (kW) Overall Dimensions (mm) Weight (t) PE**0×**0 **5 ****0 **3 5.5 **6×**5×**5 0.8 PE**0×**0 **0 ****0 ***0 *5 ***0×***5×***0 2.8 PE**0×**0 **0 *****0 ****0 *0 ***0×***2×***3 6.5 PE**0×**0 **5 *****0 *****0 *5 ***5×***1×***0 *0.3 PE**0×**0 **0 *****0 *****0 *5 ***0×***6×***0 *6.5 PE**0×***0 **0 *****0 *****0 **0 ***0×***2×***0 *9 PE**0×***0 **0 *****5 ******0 **0 ***9×***6×***5 *4.5 PE***0×***0 **0 ******5 *1
