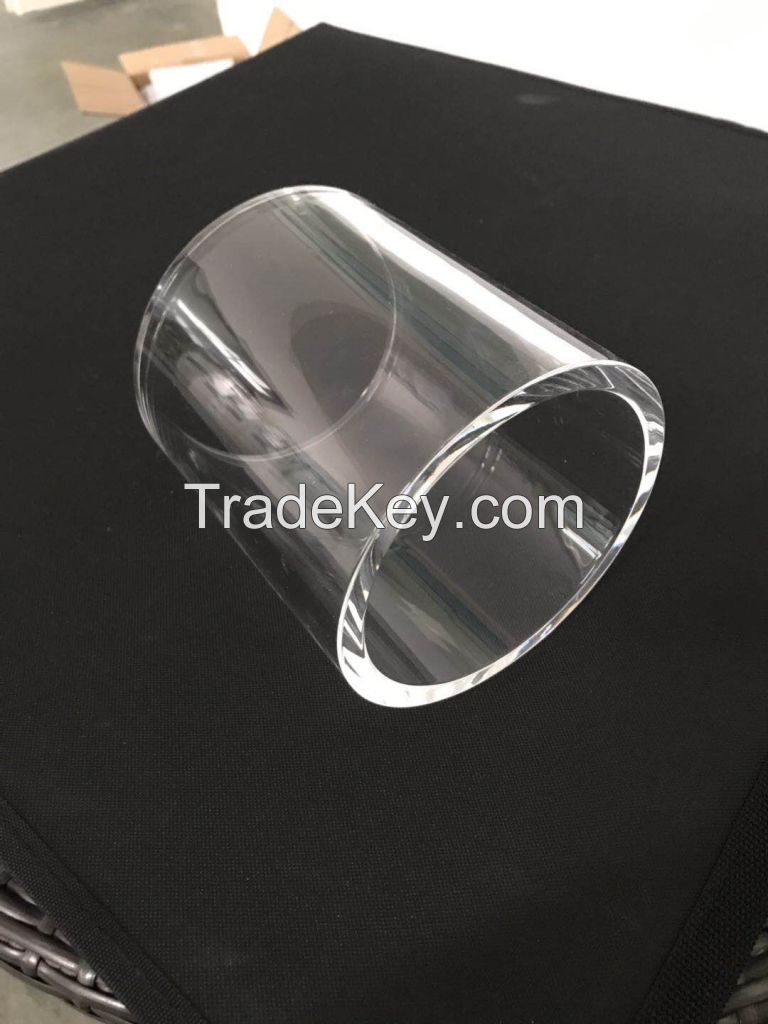

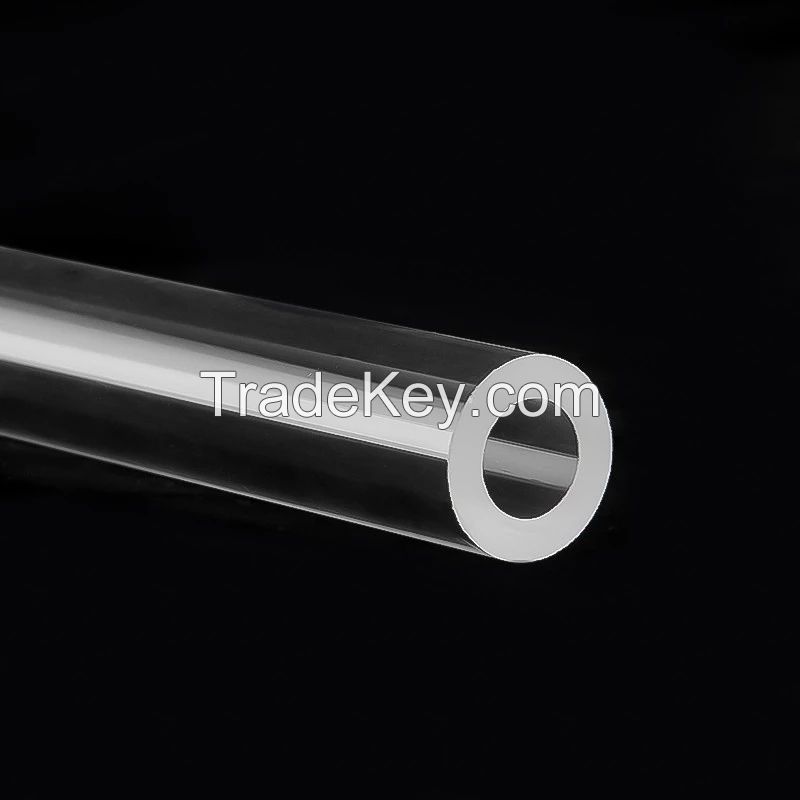

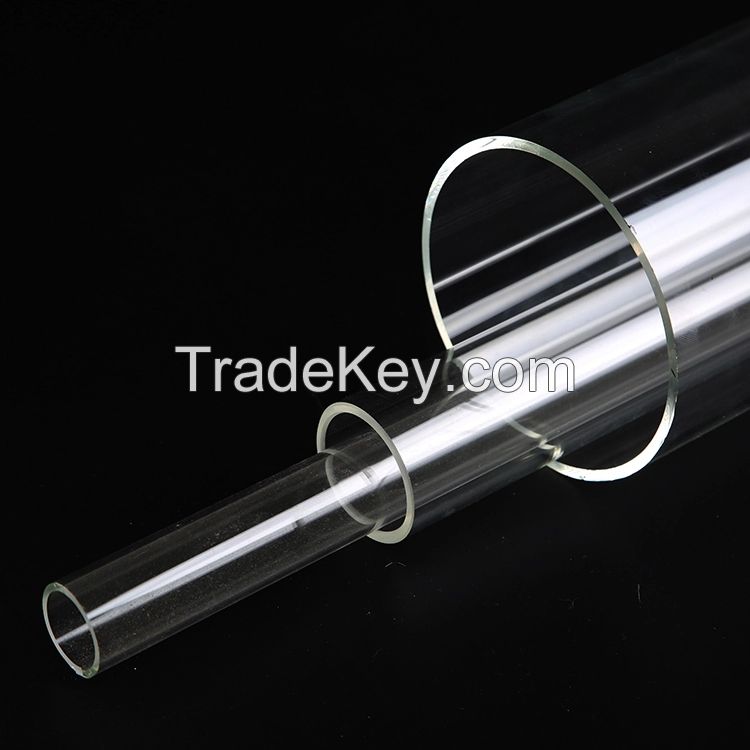

Large Clear quartz glass Tube Open End

China

-

1.5 ~ 500 / Piece ( Negotiable ) 获取最新报价

China

1.5 per Piece

1 Piece

Inner: Bubble wrap air cellular cushioning Outer: Carton and wooden case

small qty:7 days Large qty:negotiated

100000 Kilogram per Month

T/T, Other

quartz tubes

现在联系

产品规格

Brand Name : NA Type : Clear Quartz Pipe Color : Transparent/clear Application : optics/semiconductor/industrial/heating Surface Treatment : Polished Shape : two ends open/one end closed Outside Diameter : 33-400mm Ozone Content : -

详情

Product Features:

  • These tubes advantages are high purity, good spectral transmission, well controlled dimension and low OH, etc.
  • They're the best heat resisting material for lamps like: halogen lamps, mercury lamps, metal halide lamps, etc.
  • We can produce the tubes within a very large diameter rang: OD 3-400mm, thickness wall 0.7 10.0mm , length maximum 3000mm.
  • We also can apply some further processing like trim cutting, fire polishing, bending, pinching, grinding and others according to customers requirements.
  • We also can control our tubes OH content within 20ppm\ 15ppm\10ppm\5ppm\2ppm as your special needs.

Dimensional Tolerance:

Range of OD

OD

WT

Siding

Out of Round

Bow/1220mm

≤6mm

±2.0%

±10%

12%

2.00%

2.5mm

6.00mm-15.00mm

±1.25%

±8%

10%

1.50%

2.5mm

15.00mm-20.00mm

±1.25%

±10%

15%

1.50%

2.5mm

20.00mm-25.00mm

±1.25%

±10%

15%

1.50%

3.0mm

25.00mm-30.00mm

±1.35%

±12%

15%

1.50%

3.0mm

30.00mm-300.00mm

±1.5%

±14%

15%

2.00%

3.0mm



Physical Property:



214

219

254

Density (g/cc)

2.2

2.21

2.21

Coefficient of Thermal Expansion(cm/cm°C)

5.5*10-7

5.9*10-7

6.7*10-7

Softening Point (°C)

1683

1660

1615

Annealing Point (°C)
