PL
seriesof
LED Panel lights features and
applications:
1.The best choice for high-end office
space.
2.Slim LED Panel Light, two sizes choose 600 *
600 and 300 * 1200 can be designed to replace traditional
fluorescent lamps.
3.Using high-quality light guide plate products,
effectively ensure the uniformity of light
output.
4.Innovative light module heat sink, using the
maximum extent effective cooling area, to ensure product cooling
capacity.
5.Reasonable and effective cooling structure
design, less than 30% light degradation within 40,000 hours
lifespan.
6.Stable and reliable quality, 5-year
warranty.
7.Border quality aluminum powder coating, anode
process to increase product texture.
8.Ultra-thin design, the thickness of only 9mm,
simple and elegant appearance.
9.Light body compact, to meet different
installation methods: T-keel (flat type), plaster ceiling
(embedded),
suspended.
PL
series of

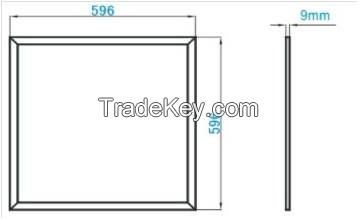

LED Panel lights Dimension:
PL
series of
LED Panel lights Technical
Parameters:
|
Model
|
Input
Power
|
Input
Voltage
|
LM Flux
|
Power
Factor
|
CRI
|
CCT
|
Beam Angle
|
Dimension
|
Body
material
|
|
GL001
|
16W
|
90-264V
|
1520lm
|
0.95
|
Ra82
|
4000-6500K
|
120°
|
300x600mm
|
Aluminum
|
|
GL002
|
24W
|
90-305V
|
2280lm
|
0.95
|
Ra82
|
4000-6500K
|
120°
|
300x600mm
|
Aluminum
|
| 国家: |
China |
| 型号: |
PL001
|
| 离岸价格: |
( Negotiable ) （面議）
获取最新报价
|
| 位置: |
- |
| 最小订单价格: |
- |
| 最小订单: |
50 Carton |
| 包装细节: |
carton box or plywood |
| 交货时间: |
15 to 20 days |
| 供应能力: |
5000 Case per Month |
| 付款方式: |
T/T, L/C, Western Union, PayPal |
| 產品組 : |
LED Panel Light
|
