Machine Vision System

详情

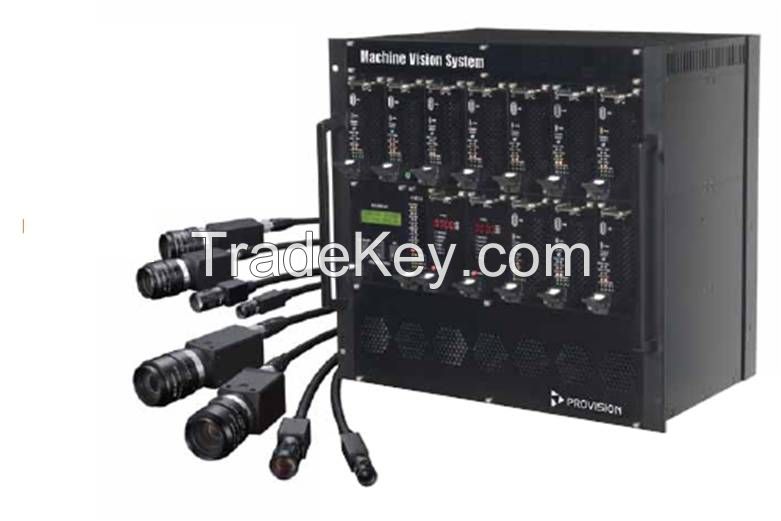

PC based general-purpose Vision System PS**1VS (controller Embedded)

Support GigE camera which don't worry about the maker.

Realization of Inspection program based on PC.

the system relixed that able to Inspection individually by each computer.

Controller is contained.

Standard *9 inch *0U size

Gigabit switching hub is contained

Support the best camera connection in the industry

Max *4 PC can be connected with *7 PC by using 2EA Gigabit EthernetPort 1 PC ( 1 Slot ) - Add Extension

Inspection environment for large scale inspection system be relized

 Break from the way of existing network camera connection

Max *4 PC can be connected with *7 PC by using 2EA Gigabit Ehternet Port of 1 PC ( 1 Slot ) (Add Extension)

Prevention Frame dropping and Delay thanks for 1:1 connection between Camera and PC

Improve stability of inspection system by supporting individual inspection environment.

Wide compatibility

Support various OS as the inspection system based on PC

Support Network camera without classifying Vender in contrast with Vision system of other companies which only support selected company camera.

After upgrading System, Can be reusable and compatible

Support USB 3.0 Camera by using fornt USB 3.0 port (Need compatibility test for USB3.0)

Can select System Spec for user inspection environment in contrast with H/W Spec already be selected ( reduce costs)

controller be contained

To inspect various physical distribution environment, *2 channel Strobe illumination controller be contained to support Incremental controller and Absolute Controller, contained Camera illumination. (Possible group control)
