milling bit router machine

China

FMJ

获取最新报价

-

-

1 Set

wooden box

45day

100 Set per Month

T/T

-

现在联系

详情

milling bit router machine is extensively used in printing box, printing, packaging, electronic die cut, high precision die cut ;processing wood board mould, electricity board mold, PVC board mould, acrylic board mould, aluminum plate mould, also can soffit formwork mould, stripping plate mould


milling bit router machine  application patent technology support machine update, different material and different thickness of single, double, multi-layer die mould,

For instance:

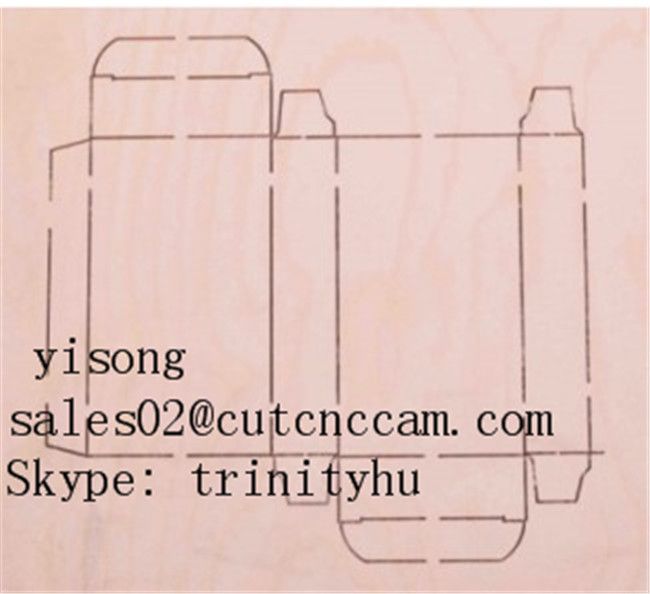

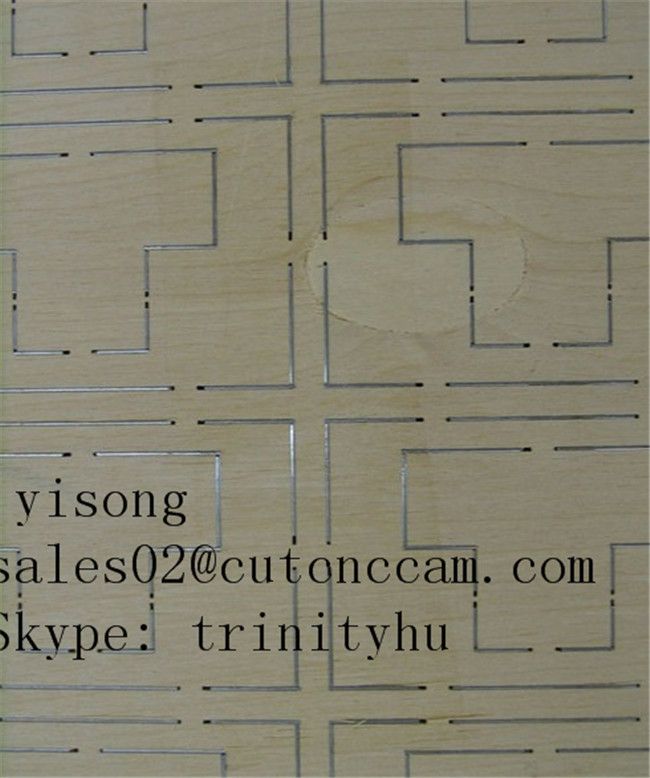

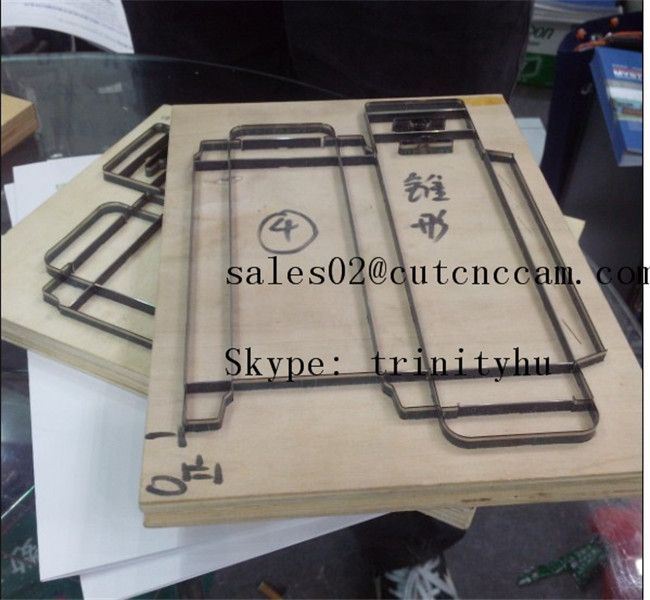

1.Single layer die board 18 mm: one-time processing is completed, the efficiency extremely high, It  is the best solution for general die-cut.

2.Two layers die mould (9 + 9) mm: two times processing, high efficiency and  precision, It is the solution for middle and high-end die-cut .

3.Two layers reinforced die mould (9 + 9) mm: two times processing, high efficiency and strength ,high precision, It is the best solution for middle and high-end die-cutting .

4.Sandwich type (3 + 12 + 3) mm die mould: three times processing, general efficiency, high precision, is a solution for high-end die-cutting, such as sandwiches aluminum mould.

5.Sandwich reinforced type(3 + 12 + 3) mm die mould: three times processing, general efficiency, very high strength and accuracy, It is the best solution for high die-cut.

6.YiSong die mould milling machine can process different thickness and multilayer die mould according to the technological requirements.

 milling bit router machine  VS laser cutting machine:

Item

YiSong die board milling machine

High power(1200W)laser cutting machine

Low power (300W)laser cutting machine

Milling Way

Milling

Laser cutting

Laser cutting

Machine Precision

±0.03mm~±0.05mm

>±0.03mm

>±0.05mm

Repeatability

±0.01mm

>±0.01mm

>±0.05mm

Milling Speed

1.2~3.2m/min.

<1m/min.

<0.6m/min.

Kerf Gap Precision

upper and lower side is exactly the same

upper and lower side is nearly the same

upper and lower side is not the same

Kerf Gap Width

>0.5mm adjustable

0.3mm ~3mm adjustable

0.3mm ~3mm adjustable

Milling Thickness

3mm ~25mm

5mm ~25mm

5mm ~25mm

Quality

No matter curved line or straight line, the kerf gap of upper and lower side is exactly the same with vertical blade closure.

The kerf gap of upper and lower side is nearly the same with vertical blade closure.

Knife is not vertical. Blade closure is terrible.

Consumables

Few consumable,only common routing bit.

Consumable cost is very high.  Consumables includes: Gas, laser tube, lens, etc.

Consumable cost is very high.  Consumables includes: Gas, laser tube, lens, etc.

Update Functions

Engraving counterplates and stripping boards besides die board

Only for die board

Only for die board

Stability

Diameter of router ensures the same kerf gap

Laser attenuates,unstable power cause different kerf gap

Laser attenuates,unstable power cause different kerf gap

Environment Protection

No pollution

Serious pollution

Serious pollution

Using Cost

Very low consumable cost

Very high consumable cost, nearly RMB90, 000/year.

Very high consumable cost, nearly RMB30, 000/year.

Boot Cost

No boot cost, immediate use

High boot cost, at least RMB30 each time.

No boot cost

Operating Cost

Very low

Very high, at least RMB100,000 for machine and laser generator

Low

Set-up Time

No set-up time, start at any time

40 minutes

No set-up time, start at any time

Working Materials

Aluminum board, wood board, bakelite plate, PVC board, acrylic board

Wood board, bakelite plate, PVC board, acrylic board

Wood board, bakelite plate, PVC board, acrylic board

Health

No radiation, no dust.

Generate harmful radiation and dust

Generate harmful radiation and dust

Safety

No lasers, no gas container

With lasers, gas container

With lasers, gas container

Daily Maintenance

Simple

Structure complicated with long maintenance time

Structure complicated with long maintenance time

Cooling Water

No need.

Pure water needed

Pure water needed

Gas

No need.

Auxiliary inactive gas needed

Dry oil-free air needed

Operation

Simple

Complicated

Simple

Occupy Dimensions

Small space, only machine area.

Large space,several individual spaces needed for laser generator, machine, gas disposal room, etc.

Large space,especially laser generator, machine occupy much space.
