Mini RGB
LED Strip Controller
Functions
of Keys
1. Mode
Key: Switch to dynamic mode. Press this key to switch among *6
dynamic modes. Keep pressing mode key
over one second
will switch to demo mode which automatically changing dynamic
mode in loop.
2. Color Key:
Switch to static color mode. Press this key to switch among *0
static colors.
3.
Speed/Brightness Key: Adjust speed and brightness. At dynamic
mode, press this key to change the speed among
5 levels; at
static color mode, press this key to change the color
brightness among 5 levels.
Specifications:
*Working
voltage:DC 8~*6V
*Max output current:3x4A
*Max output power:**4W
*Working temperature :**0℃~**5℃
*Dimension:*2x*2x3 (mm)
Features:
Dynamic
modes:*9
Static colors:*0
PWM control level:**6 levels
Speed grade of dynamic mode:5 levels
Brightness level of static color:5 levels
Installation
Instruction:

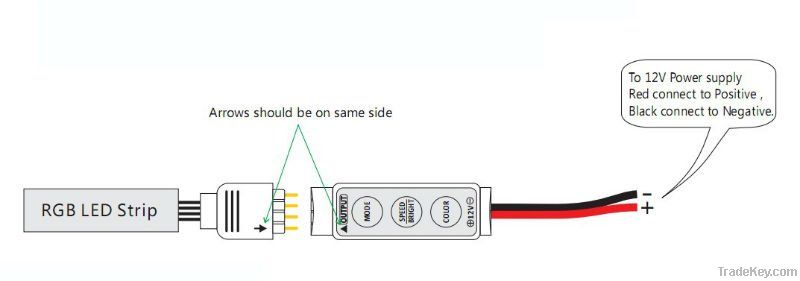

1. Connect
RGB led strip to OUTPUT jack as the picture, align the arrows of
the strip plug
and output
jack. Make sure the cable is well isulated and no short
circiut.
2. Connect
the **2V cable to DC *2V power supply as the picture.
3. Power on
and play.
Warranty:
2 years
If use the product
as per the using specificaion, we will promise 2years warranty,
and please provide the original proof of purchase(warranty card
or invoice), from the purchasing date to calculate for the
warranty.
If appearing one
of the situation as follow, we will not provide the
warranty
1. Any change,
damage or no proof of purchase without permission.
2. Failure of the
non LED lamp of the intrinsic factor leaded, such as: Thunder,
flood, fire or other failure leaded.
Application:
This mini RGB
led controller is used for RGB led strip or RGB
module.
