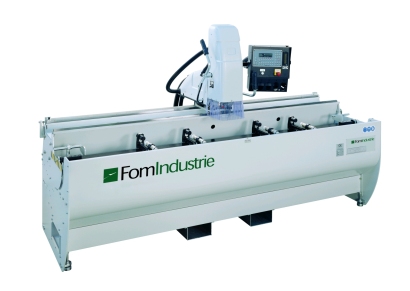

Numerically controlled copy router

详情

· Tool rotation inverter kit (1.**0/*2.**0 rpm) · Spindle speed with inverter 1.**0/1.**0 rpm · Interpolating numerical control of machining movements on X and Y axes · Manual lever with adjustable stop rod for the Z axis · Electronic panel with graphic display to simplify program use and to program a working sequence on 3 faces · Preset for receiving a working program made up of ***** in office with program Arescam · X axis movement with DC motor, high precision reduction unit and belt drive.Y axis movement with DC motor and recirculating ball screw transmission · Work table with pneumatic rotation from **0° to 0 to **0° · Work table height: **0 mm · Work table rotation in complete safety for operators thanks to the selector and the deadman push control circuit · Horizontal pneumatic vices movable along the work table (n°4) with double (low and high) operating pressure with safety valves · Capability for machining intermediates angles with manually adjustable indexed stop · Manual tool change cone ISO *0 with tool collect for n° 5 cones in ergonomical position · Micro-drop lubrification system with pure oil · Tool diameter correction software compensates for sharpening · Milling sizes: X=***0, Y=**0, Z=**0 · Three-phase motor: 1, *5 kW – ***0 ***** – **0/**0V; *0 Hz · Working in complete safety thanks to the two deadman levers · Profile reference stops on right and left ends of the machine · Profile can be longer than X milling capacity (***0 mm) with the possibility of alternate use of stops on right and left of the machine · Working pressure: 7 bar · Air consumption per work cycle: *4 NL (normal litres) · Chip bin · Adjustable feet for machine location and anchor brackets · Set-up for the installation of fumes · Set-up for loading/unloading with shunter
