pebble sand making machine By Shanghai Minggong Heavy Equipment Co., Ltd.,

产品规格

keywords:sand making machines
type:as customers' requirements
capacity:70-500t/h
feeding size:35-50mm
rotary speed:1300-1900 r/min
power(kw):55x2 90x2 132x2 200x2
using:sand making and crushing line
manufacture:professional in this field
training:free
after- service:one year warranty

详情

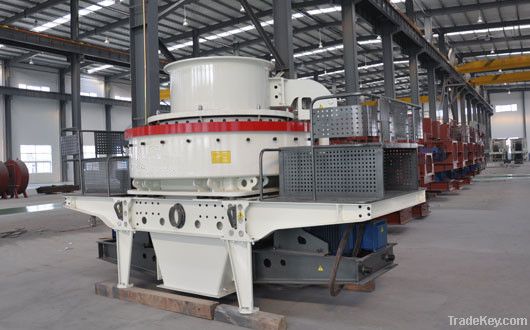

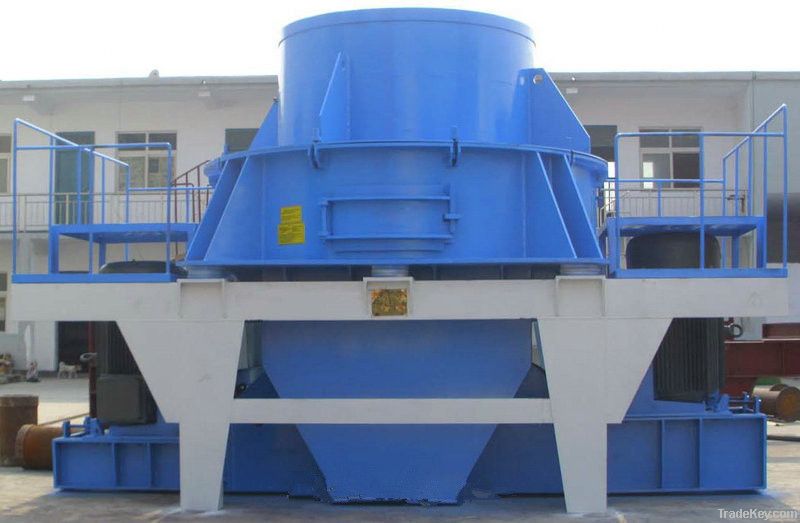

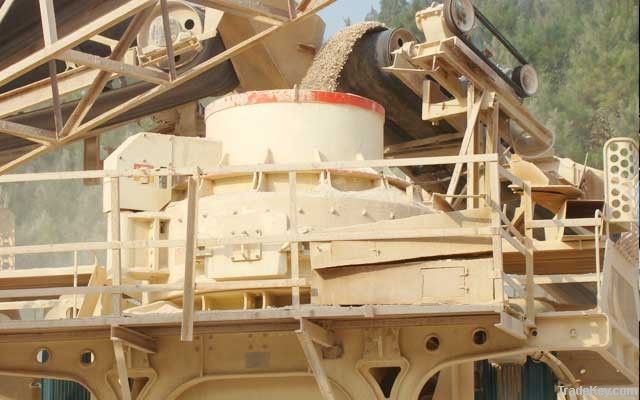

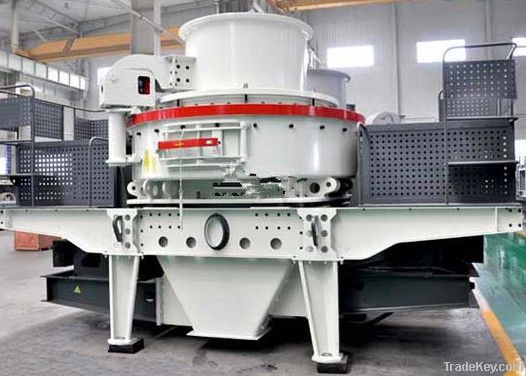

pebble sand making machine

I.Vertical Shaft Impact Sand Making Machine Brief Introduction:

Vertical Impact Sand Making Machine is one of the kinds of sand making machines developed by our company. It integrates the international high-level and productivity and low cost. Its performance plats an irreplaceable role in kinds of ore crushing and it is the most effective and reliable rock machine. Since ***1 our company achieved most of the domestic market share. Perfect performance wins most customers' trust at home and abroad. This product is widely used in various fields. Welcome to our company to visit and learn more about our products and us.

II. Vertical Shaft Impact Sand Making Machine Features:

1. Simple structure, law running cost.
2. High crushing ratio, energy saving and environmental protection.
3. Fine crushing and coarse grinding. Low wearing of the impeller liner and easy to maintain.
4. The moisture of the material can up to 8%. Lighter impact to the moisture of materials.
5. Is suitable to crush the hard and medium-hard materials.
6. Cubic final product, high packing density and minimal contamination of the iron.
7. Work noise is below *5 decibels, little dust pollution.

III. Vertical Shaft Impact Sand Making Machine Working principle:

Materials get into machine from feed hopper, which are divided into two parts by distributor. Parts of materials by the middle of the distributor get into the impeller of the high-speed rotation, where materials are rapidly accelerated. The acceleration can reach several hundred times gravitational acceleration. Then with the speed of ****0 m / s, materials are ejected out from the impeller three uniform flows. First be crushed with falling materials around distributor. Then the two parts are impacted onto material lining of vortex cavity, where they are rebound. Materials' oblique impacting on the top of the eddy chamber also changes direction of motion, doing a deflection downward movement. Materials emitted from impeller form a continuous material curtain. So a piece of material in crushing chamber gets twice as well as several times effects of impact, friction, grinding and crushing. Broken materials are discharged from the lower part of the discharge opening. Throughout the crushing process, materials themselves impact and crush mutually. They don't contact metal components directly, and they are crushed because of impact and friction with material lining, which reduces angle pollution and extends the time of mechanical wear. Ingenious airflow circulation inside the whirl chamber eliminates the dust pollution.

IV the main parameter of Vertical Shaft Impact Sand Making Machine

Model	Max. Feeding Size(mm)	Power (Kw)	Impeller Speed (r/min)	Capacity (t/h)	Overall Dimension (mm)	Weight (including motor)(T)
PCL***0	*0	****5	********0	****0	*0×Φ0×**0	5.6
PCL***0	*5	****0	********0	****5	*0×Φ0×**0	7.3
PCL***0	*5	*****0	********0	*****0	*0×Φ0×**0	*2.1
PCL****0	*0	******4	********0	******0	*0×Φ0×**0	*6.9
PCL****0	*0	******0	*******0	******0	*0×Φ0×**0	*2
PCL****0	*0	******0	*******0	******0	*0×Φ0×**0	*6

About us

Before Sale

Be a good consultant and assistant of our customer, to ensure our customer's investment will be rewarded with great profit.

1. Select the right model of equipment for customer.

2. To meet our customer's special needs, we can design and develop customized products.

3. Provide training for customer's technician.

4. We will send engineer to observe customer's working field to come up with an optimized solution.

During Sale

Respect every customer and provide them convenience and reliability. We are devoted to help customer gain more.

1. Inspect before accept the products sent by us.
2. Assist our customer to make a construction plan.

After Sale

1. The installation and testing of equipment.
2. Train the workers at present.
3. When the installation is finished, there will be one or two service engineer staying to ensure customer's production run well.

Welcome to our company!

If you have any requirement or question about our classifier, please contact us at any time

phone:*************7

skype: shmg*1

国家:	China
型号:	various
离岸价格:	1000 ~ 100000 / ( Negotiable ) （面議）获取最新报价
位置:	shanghai, China
最小订单价格:	1000
最小订单:	1 Set
包装细节:	packing with standard export package, adjustable, according to customers requirements
交货时间:	asap, negotiable
供应能力:	10 Set per Month
付款方式:	T/T, L/C, D/A, D/P, Other
產品組 :	Sand Making& Washing Plants
