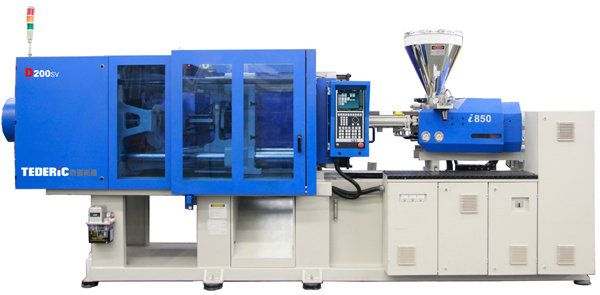

PET Preform Injection Moulding Machine

详情

PET preform injection moulding machine is one of the series special designed for PET preform production  withspecial screw for PET and the screw L/D ratio 25:1.

Mostly popular machine are 160T, 200T, 250T, 300T, 400T and 450T.

For 8cavity, 16cavity, 24cavity, 32cavity up to 48cavity PET preform mould with different neck diameter and weight.

For more information, please feel free to contact us.



Variable Pump Injection Molding Machine

One series of UGO standard plastic injection molding machines, which adopt Yuken proportional variable displ-acement pump from Japan and Techmation computer with colored screen from Taiwan. This series owns bigger internal space between tie bars and mold opening stroke after com-puter optimized designing. With higher speed and stability, UGO series are suitable to make products need high precision and better surface. OPERATING PRINCIPLE BETWEEN VARIABLE DISPLACEMENT PUMP SYSTEM MACHINE AND FIXED PUMP SYSTEM MACHINE   In the operating period of injection molding machine, the speed of motion in each section is different, but the output of pump in traditional fixed pump system machine is fixed, according to the formula: p=p × q (p: power, p: pressure, q: rate of flow). Regardless of motion speed, the output of pump is fixed under the same pressure, then superfluous output volume wi l l return to oi l tank through rel ief valve, so plenty of energy is wasted. These the pump output of variable displacement pump can vary according to the instructions of control ler, so there is no extra energy lost via the rel ief valve. Compared to the fixed pump system machine, the variable displacement pump can save energy by 30%-kinds of machines can not save energy.60% (differs according to working conditions).   THE TECHNICAL ADVANTAGES OF THEVARIABLE DISPLACEMENT PUMP MACHINE. Water Saving:No overflowing heating, low oil temperature saves cooling water, and increases life of sealing elements.
Power Saving: Save Power30%-60%。
High Speed:Increase 20% performance capacity by using variable displacement pump.
Oil Saving:Using high performance filter device to increase life hydraulic oil.



UGO SERIES THERMOPLASTICS (THERMOSETTING PLASTICS) INJECTION MOLDING MACHINE, CLAMPING FORCE FROM 60T TO 4000T

UGO(M) SERIES HIGH PERFORMANCE THERMOPLASTICS ( THERMOSETTING PLASTICS ) INJECTION MOLDING MACHINE, CLAMPING FORCE FOR 60T TO 500T



UGO U（C）PVC、PPR、PE SERIES FITTINGS AND PIPE INJECTION MOULDING MACHINE

UGO-PET BOTTLE(CPAS) PREFORM FAST INJECTION MOLDING MACHINE AND PRODUCTION LINES

UGO-C SERIES MARBLE DUAL COLOR INJECTION MOULDING MACHINE

UGO-D SERIES CLEAR DUAL COLOR INJECTION MOLDING MACHINE

UGO-EH SERIES ELE-HYD INJECTION MOULDING MACHINE

 PNEUMATIC ASSISTED INJECTION MOLDING SYSTEM

 OTHER AUXILIARY EQUIPMENT AND PLASTIC MOULD



国家:	China
型号:	160T-400T
离岸价格:	20000 ~ 40000 / Set ( Negotiable ) （面議） 获取最新报价
位置:	-
最小订单价格:	20000 per Set
最小订单:	1 Set
包装细节:	PP bag
交货时间:	45-60days
供应能力:	100 Set per Month
付款方式:	PayPal, Western Union, L/C, T/T
產品組 :	Injection molding machine
