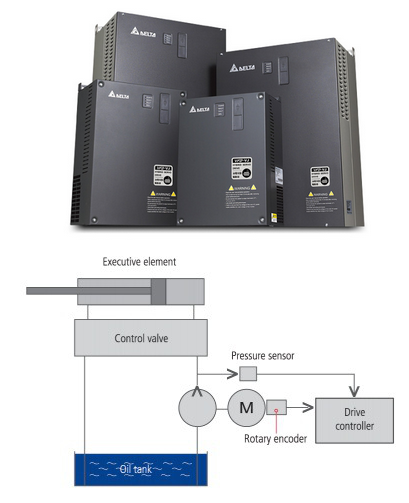

HIGH ENERGY-SAVING

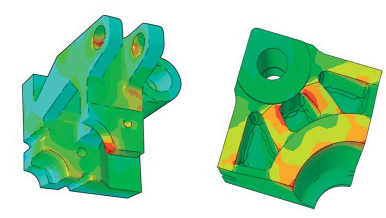

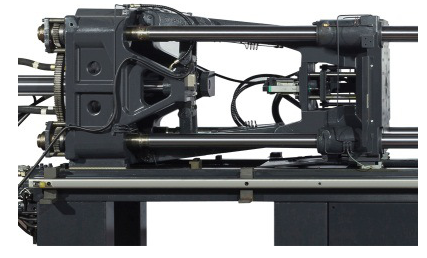

FIXED PLATEN WITH CENTRALIZED FORCE LOADING AND LESS PLATEN
FLEXING
NEW PERFORMANCE WITH TWIN INJECTION CYLINDER DESIGN

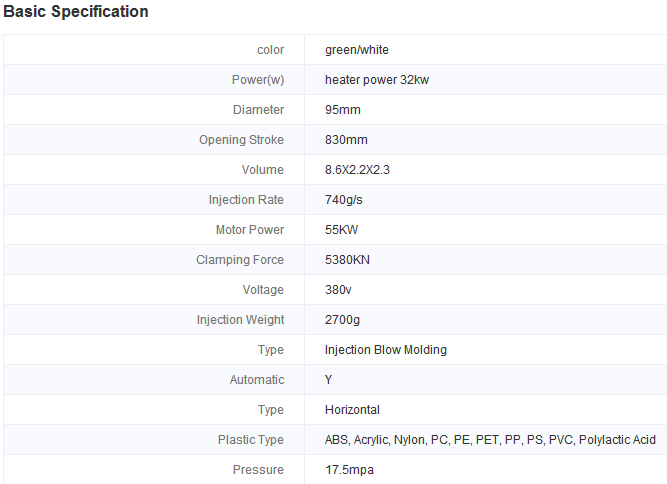

Specification
| INJECTION UNIT | ||
| Screw diameter | mm | 95 |
| Screw L/D ratio | L/D | 18.5 |
| Shot volume(theoretical) | cm3 | 2977 |
| Injection weight(ps) | g | 2700 |
| Injection pressure | Mpa | 131 |
| Injection rate | g/s | 740 |
| CLAMPING UNIT | ||
| Clamping force | KN | 5380 |
| Open stroke | mm | 830 |
| Space between tie bars(WxH) | mm | 830x830 |
| Max Mould height | mm | 330-810 |
| Ejector force | KN | 125 |
| Ejector stroke | mm | 200 |
| OTHERS | ||
| Pump pressure | Mpa | 17.5 |
| Motor power | KW | 45 |
| Heating power | KW | 29.5 |
| Machine dimension(LxWxH) | m | 8.2x2.13x2.3 |
| Machine weight | T |
17 |

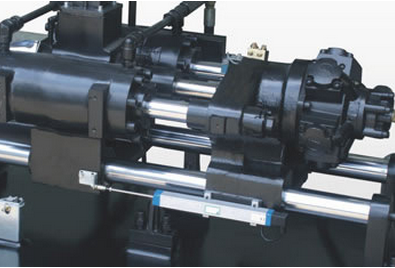

NEW PERFORMANCE WITH TWIN INJECTION CYLINDER DESIGN
The rigid one-piece injection base supports the common slide rail for injection and screw movements.
| 国家: | China |
| 型号: | BN538IID |
| 离岸价格: | ( Negotiable ) 获取最新报价 |
| 位置: | - |
| 最小订单价格: | - |
| 最小订单: | 1 Set |
| 包装细节: | - |
| 交货时间: | 50 days within receipt of payment |
| 供应能力: | - |
| 付款方式: | T/T, L/C |
| 產品組 : | - |
