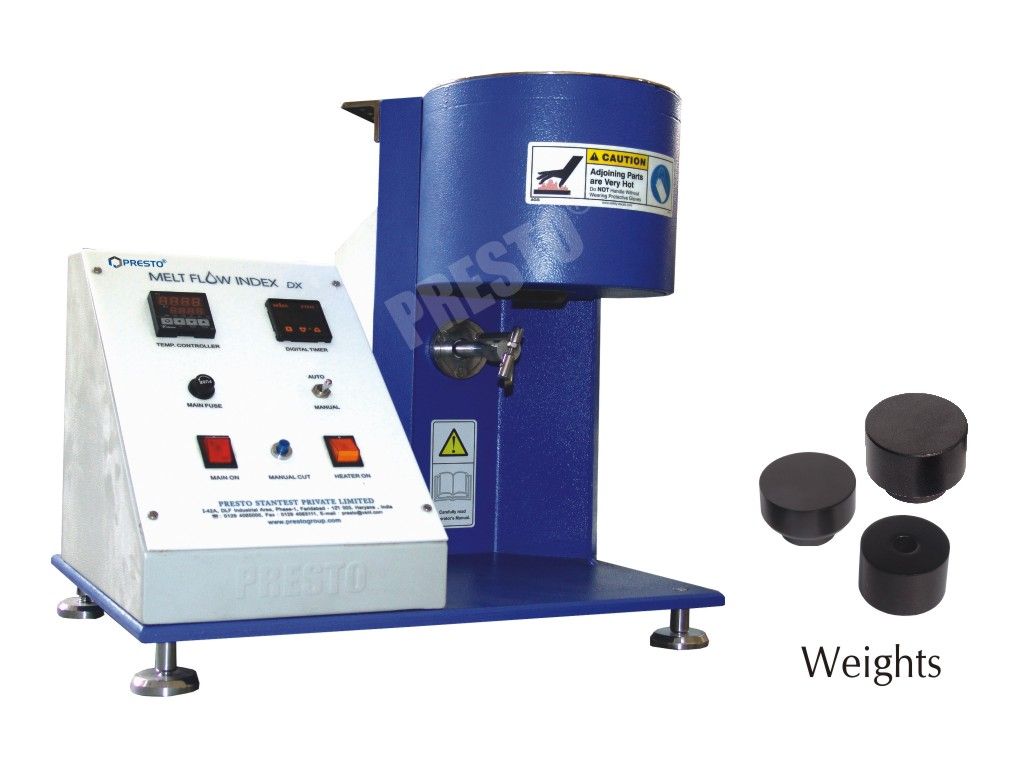

Plastic Melt Testing Machine

The Presto Melt Flow Index tester is used for evaluating the flow properties of molten plastics or resins.
The Melt flow Index of thermoplastic materials is defined as the rate of flow (in grams per ten minutes) of extrudates of molten resins through a jet of a specific length and diameter. The test is carried out under prescribed condition of temperature, load and piston position in a cylindrical cavity inside a heated metallic tube barrel. The Presto Melt Flow Index tester accurately provides all standard conditions of temperature and load strictly as per ASTM standards.

Specification:-
Dimensions of piston head :  9.*7mm diameter
Diameter of heater tube cavity :  9.*5mm
Dimensions of Die  :  2.**5mm
Weights :  1.2 kg; 2.*6 kg; 3.8 kg; 5 kg & *0kg

Related Standards:
IS ********2  : Specification for polystyrene molding materials
IS ********3  : Methods of test for polyethylene moulding Materials & polyethylene

Compounds
Is *********4 : Methods for test for cables part *3: melt flow Index
ASTM D********2 : Standard Test method for flow rates of Thermoplastic by extrusion lactometer

Optional Accessory:
Lab Weighing Balance **0gms Least Count 0.*1gms
