Pneumatic riveting machine

详情

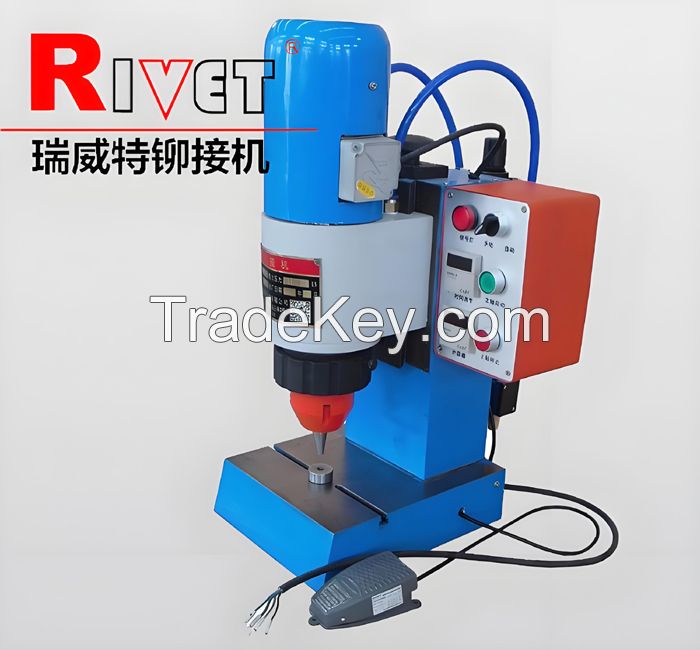

The model of JM3TQ-B is a kind of smaller desktop pneumatic riveting machine with radial structure. The machine's power head adjustment up and down to meet variety of workpiece's body and shape. The pneumatic system equipped with aerosol lubricating,double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.*5mm.

Specification:

▲ Max. riveting diameter                      Ф 3mm (solid steel rivet )

▲ Max riveting pressure                       3.5Kn

▲ Working stroke                                  *0mm

▲ Available work space                       *5mm

▲ Throat deep                                       *0mm

▲ Riveting tool length                            *0mm

▲ Eccentric angle                                   4°

▲ Motive force                                      Pneumatic

▲ Workbench dimensions                  **0mm×**0mm

▲ Power                                                0.*8Kw

▲ Physical size                                    **0mm×**0mm×**0mm

▲ Net weight                                        *0Kg

▲ Air source                                         Pressure **5kgf/cm2, and flow 0.2 M3/ Min
