Press Brake Machine

详情

PB***0T/***0 NC hydraulic press brake
Features
❚hydraulic synchronised positive stop design, electronically controlled by Etsun NC programmable controller assuring accurate repeatability and ease of use.
❚deep side throats and wider distances between the vertical frames offering you more application scope.

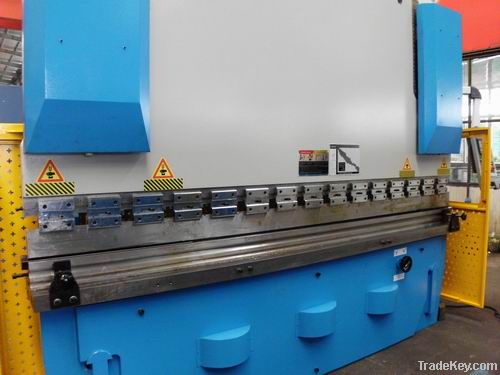

❚segmented heavy duty *6° offset top tool, segmented for return bend clearance, complete with European style quick release tool holders.
❚full length Multi Vee bottom block with a smart selection of openings also including safety edge vee ('V') for over bending.
❚ball screw drive back gauge with quality support fingers also with vertical adjustment
❚front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
❚conveniently mounted control box on pendant for quick swivel and adjustments.

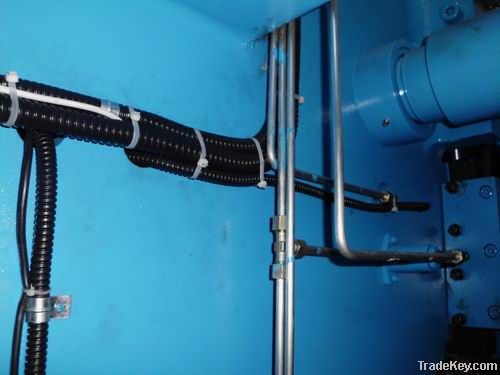

❚integrated hydraulic system allowing rapid approach switching automatically to slow bend.
❚modern designed pendant foot pedal operation with stainless braided cable.
❚variable hydraulic pressure control valving fitted standard
❚safety and material selection bending charts mounted on front beam for easy access.
❚supplied pre commissioned and full off hydraulic *6 grade oil prior to delivery
❚CE compliant
