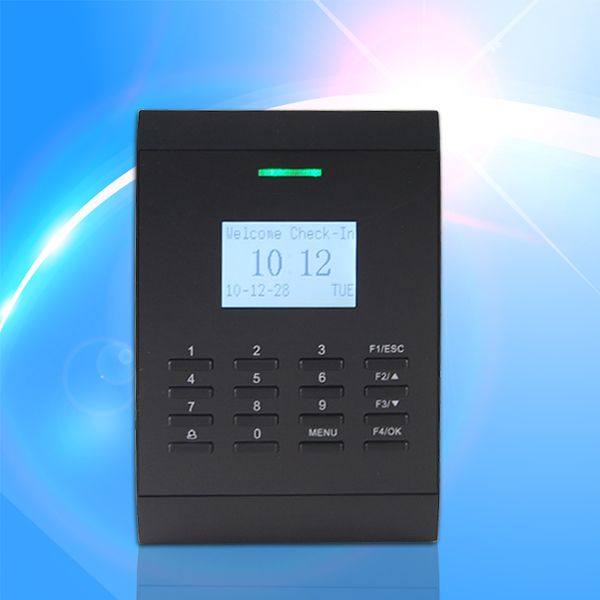

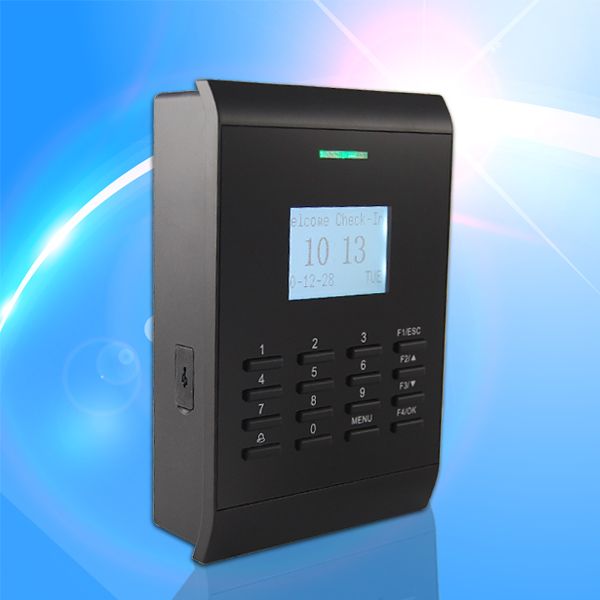

SC403
Introduction:
SC403 is an access control devices, which is made with elegant design and professional surface treatment. The device have lock control, alarm, exit , door sensor. The wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be used to connect with a control panel as a reader by wiegand-out interface. The operation can be done on the device through LCD display, also can be done on PC software and upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload, including user template and record etc. SC403 is suitable for house, small office and factory etc.
Features:
.Tough casing design
.Easy installation, safe and reliable
.Simple and convenient operation method
.ID card standard, Mifare card optional
.Full door lock control system
.Wiegand out to connect with control panel
.Wiegand in to construct master and slave system
.Audio prompt and LED feedback guide the user to operate

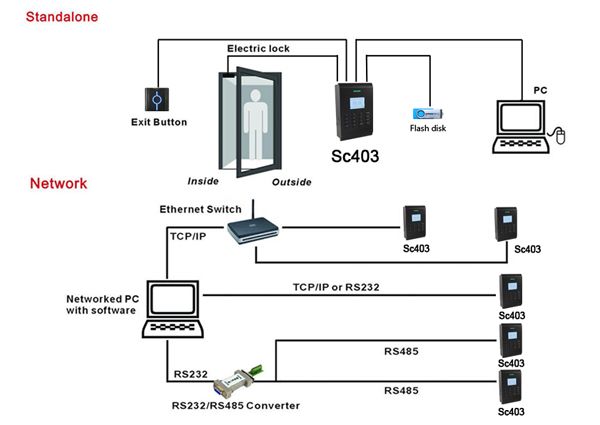

Diagram
Specifications:
|
ID card Capacity |
30000 |
|
Transaction Capacity |
50000 |
|
Communication |
TCP/IP, RS232/485, USB-Host |
|
Access Control Interface for |
3rd party electric lock, door sensor, exit , alarm, Door Bell |
|
Wiegand Signal |
Output&Input |
|
Standard Functions |
Anti-passback, SMS |
|
Optional Functions |
Mifare, HID, Workcode, Webserver |
|
Display |
LCD |
|
Power Supply |
12V DC |
|
Operating Temperature |
0C -45C |
|
Operating Humidity |
20%-80% |
|
Dimension(L*W*H)mm |
143x95.5x39.5 |
|
Gross Weight |
0.8KG |
