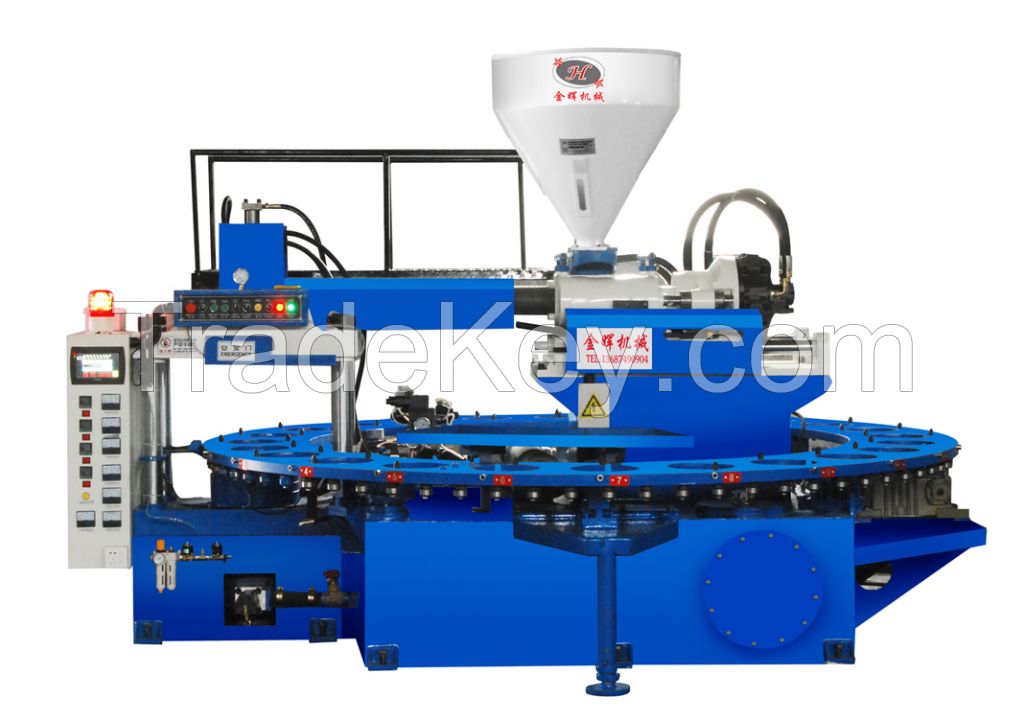

PVC 3 Color Shoe Injection Molding Machine
Features
This machine is specifically used
for producing shoes soles, shoelaces, one time
molding footwear which are made
of PVC、TPR、TPU materials.
1. Hydraulic motor
drives the bolt, multiple sectional
pressures and multiple sectional speed control the shooting
system.
2. Charging barrel heater adopts
independent 4 sectional type to insure melting
quality.
3. Full automatic material
transferring control system,Production mould station could be
freely open and closed .
4. A strong mould locking mechanism
is set in mould clamping system; it can be used for producing large
size mould or plastic products which demands very high shooting
pressure.
5. 2 sectional speed drives the
round plate, stable and fast.
6. This machine adopts high
performance computer control, industrial level human and machine
interface .
7. Adopt high technical oil pressure
loop design, and combine the feature of the proportional type
pressure flow valve to exert high speed,safe,low noise
efficiency,bring up best system operation
efficiency.
8. Adopt safety protection device to
insure the safety of operation
Technical
parameter
|
项目 Item |
单位 Unit |
规格 Measurement |
|
原材料 Raw material |
kind | PVC、TPR、TPU |
|
工位数 Workstation |
pcs | *0 |
|
螺杆直径 Diameter of bolt |
mm | φ*5、φ*0、φ*5 |
|
螺杆转速 Turning speed of bolt |
r.p.m | **2*0 |
|
最大射出容量 Max shot capacity |
cm3 | **0 |
|
额定注射压力 Rated injection pressure |
mpa | 8 |
|
合模力 Mould clamping force |
kn | ***0 |
|
电机功率 Motor power |
kw | *8.5*6 |
|
电热功率 Heater power |
kw | *0 |
|
温控段数 Temperature control section number |
point | 4 |
|
机械尺寸 Machine size |
mm | ***0****0****0 |
|
机器重量 Machine weight |
kg | Aboout 48*0 |
| 国家: | China |
| 型号: | PVC 3 COLOR SHOE INJECTION MOLDING MACHINE |
| 离岸价格: | ( Negotiable ) 获取最新报价 |
| 位置: | CHINA |
| 最小订单价格: | - |
| 最小订单: | 1 Set |
| 包装细节: | - |
| 交货时间: | 30DAYS |
| 供应能力: | 30 Set per Month |
| 付款方式: | T/T |
| 產品組 : | - |
