PVC pipe extrusion machine line

详情

SPECIFICATION

1.international famous brand control system
2.reliable performance
3.competitive price
4.CE certificate
5.oversea service




~GF series plastic pipe production line is mainly used for manufacturing plastic PVC pipes with various tube diamters and wall thickness in the aspects of agricultrual and contructional plumbing ,cable laying etc.

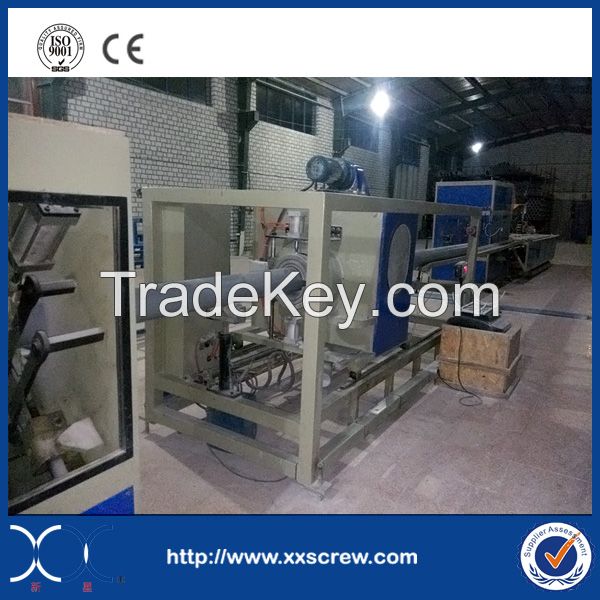

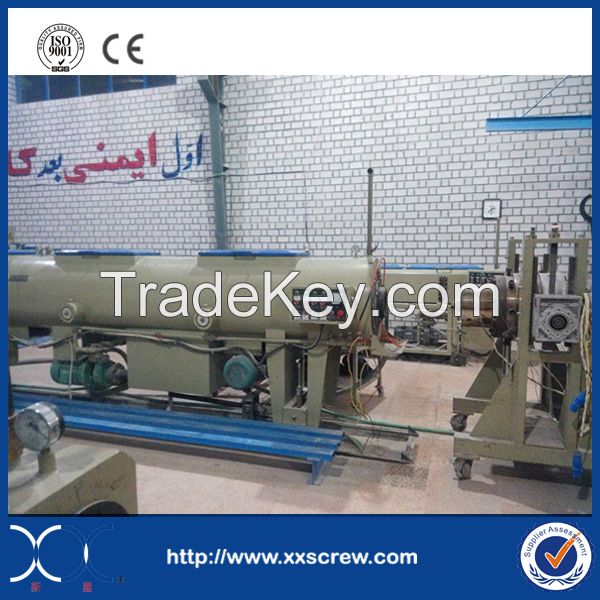

The machine group includes: Conical twin-screw extruder, vacuum forming tank, dragger, cutter, core layer foaming, stacker etc.

The twin-screw extruder and haul off adopts imported AC frequency conversion speed regulation device.

The motor of vacuum pump and dragger are all of famous brand.

The haul off has the traction modes of two-claw, three-claw, four-claw, six -claw etc.

May chose the cutter of saw blade type or planetary type.

Can attached with length measuring and thickness increasing device.

We can offer the special spiral muffling pipe and core layer foaming machine group according to customer's requirement.

The operating system of the whole line:

               AC motor,ABB speed governor

                 Low-voltage apparatus:

                 Button, toggle switch:       France Schneider

                 Contactor:                   SIMENS

                 Air switch:                   DELIXI

                 Intermediate relay:             OMRON

                 Temperature controller:         Japanese RKC

                 Ring heater adopt the stainless steel cast aluminum heater

Constitute of the line

ref.#

Equipment list

qty


1.0

High speed single screw extruder model SJSZ*5/**2

1pc


2.0

Identification line co-extrusion mold model

1set


3.0

Identification line co-extrusion single screw extruder mold SJ*0X*5

1pc


4.0

Vacuum forming tank mold

1pc


5.0

three caterpillars traction machine mold

1pc


6.0

Planetary cutting machine mold

1pc


7.0

Turn over stacker

1pc
