Remote Control Wiegand RFID Access Control for Outdoor Use Remote Control Wiegand RFID Access Control for Outdoor Use Remote Control Wiegand RFID Access Control for Outdoor Use Remote Control Wiegand RFID Access Control for Outdoor Use
Next

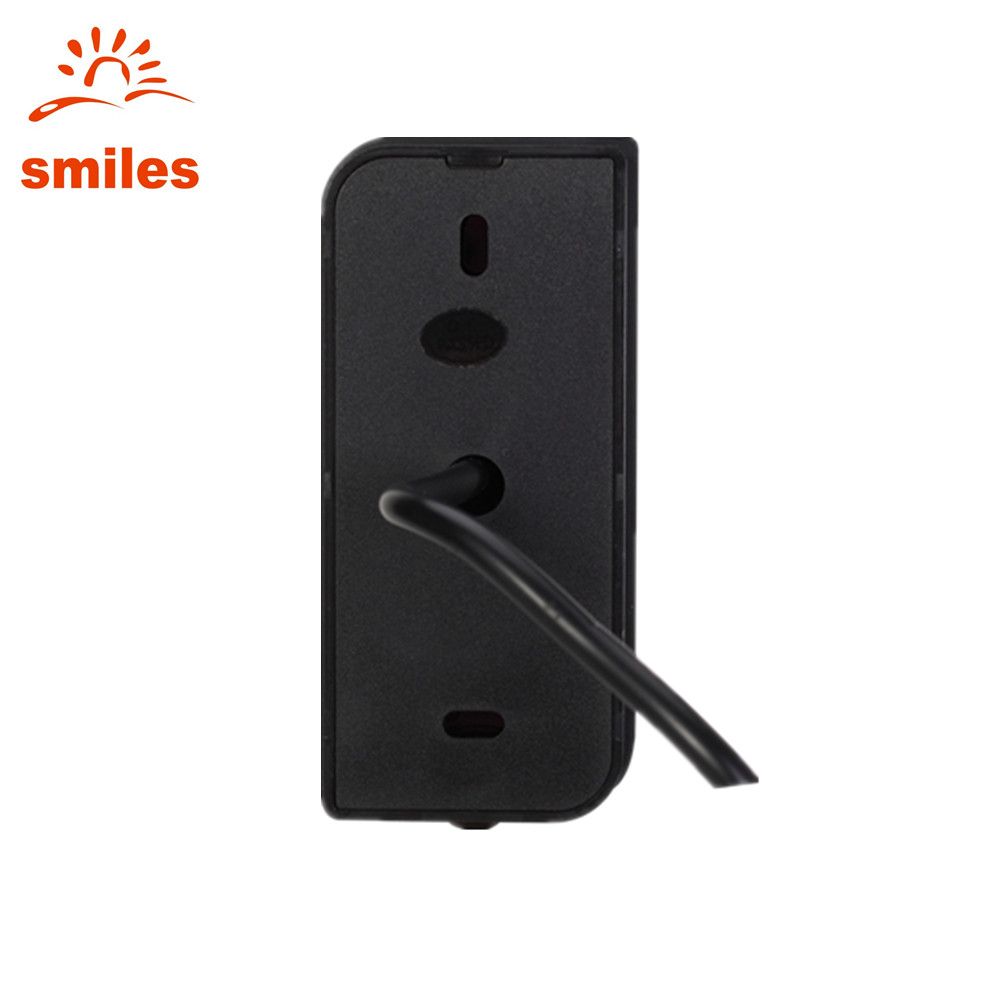

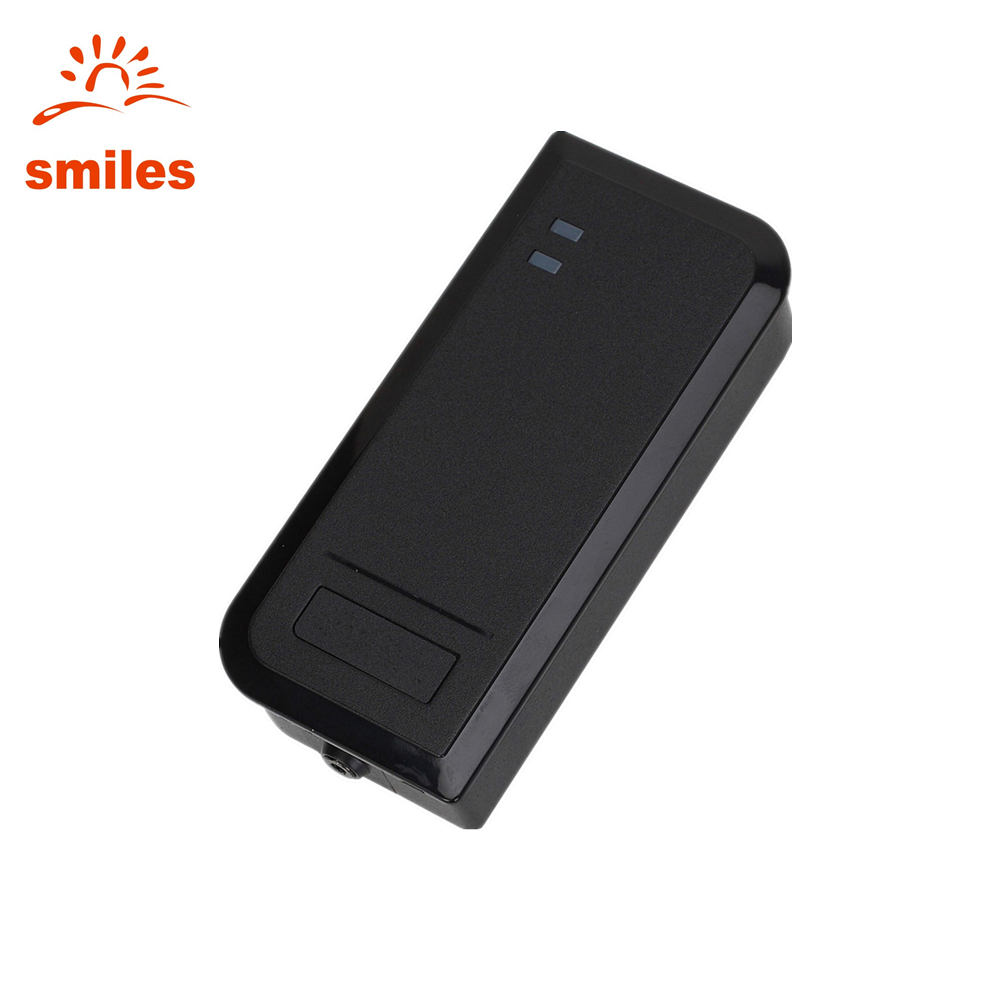

Remote Control Wiegand RFID Access Control for Outdoor Use

离岸价格

获取最新报价

12 ~ 15 USD / Piece ( Negotiable )

|

1 Piece Minimum Order

国家:

China

型号:

S003

离岸价格:

12 ~ 15 USD / Piece ( Negotiable ) 获取最新报价

位置:

China

最小订单价格:

12 per Piece

最小订单:

1 Piece

包装细节:

Carton box

交货时间:

Within 3 days

供应能力:

5000 Piece per Week

付款方式:

PayPal, Money Gram, Western Union, T/T

產品組 :

现在联系
免费会员

联系人 Annie

Shenzhen, Guangdong

现在联系

产品规格

  • Model Number: S003:User Capacity: 2000 pcs
  • Proximity Card Reader: EM&HID:Waterproof degree: IP66
  • Operating Voltage: 9~18V DC:Wiring Connections: Relay Output, Exit Button
  • Support: rfid card, remote control:Dimensions: L103* W48 * H20 (mm)

详情


































Specification

 Product Name

Proximity Entry Stand-alone Access Control

User Capacity Card

***0 EM card & HID card

Wiring Connections

Relay Output, Exit Button

Waterproof degree

IP*6

Relay

NO, NC, Common

Operating Temperature

**0℃ ~*0℃



  Features


Waterproof, conform to IP*6



Read **5KHz EM&HID card



One programmable relay operation



Pulse mode, Latch mode

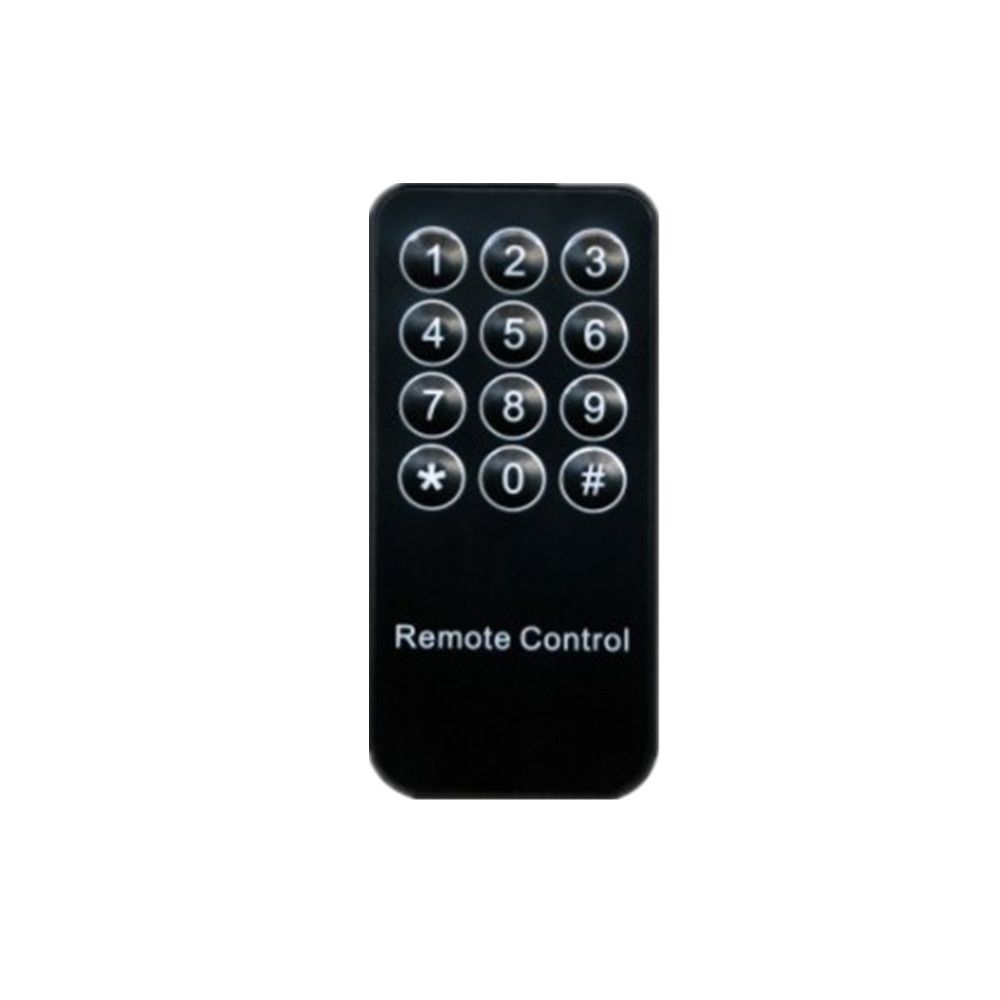

Remote infrared programmer



***0 users



Card block enrolment



Tri-colour LED status display



Built in light dependent resistor (LDR) for anti tamper



Buzzer for audible or silent mode



Low temperature resistance(**0℃)




  Wiring



Colour Function Notes



Red Power + 9~*8 Votes DC Regulated Power Input



Black GND Ground



White NO Normally Open Relay Output



Brown COM Common Connection for Relay Output



Green NC Normally closed Relay Output



Yellow OPEN Request to Exit (REX)
          Installation

  Remove the back cover from the unit



Drill 2 holes(A,C) on the wall for the screws and one hole for the cable



Knock the supplied rubber bungs to the screw holes(A,C)



Fix the back cover firmly on the wall with 4 flat head screws



Thread the cable through the cable hole(B)



Attach the unit to the back cover
