RF Remote controller

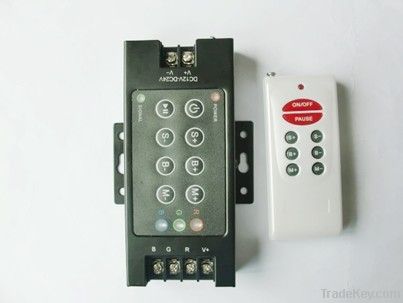

  RF8BT controller adopts the advanced micro-control unit, it is used for controlling a variety of lamps whose source of light is LED. For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; It has power-fail memory, synchronized indicator light and other functions. At the same time, it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of changes.

Technical Parameters

  ◆ Working temperature: *****0 ℃

 ◆ Supply voltage: DC*2V~*4V

 ◆ Output: 3 channels

 ◆ Connecting mode：common anode(default)   □common cathode

 ◆ External dimension: L**1* W*4* H*5 mm

◆ Packing size: L**0 * W*6 * H*1 mm

◆ Net weight: **5g

◆ Gross weight: **5g

◆ Max output current: 3*4A

◆ Max output power: *2V:**4W; *4V:**8W

Direction for use

1. Connect the load wires at first, following by the power wires; Please ensure that short circuit can not occur between connecting wires before you turn on the power;

2. Adopt film and RF for controlling, and there are 8 s in all. The function of each key as follows(the symbol between ‘[ ]’ is remote control Method):

: [ON/OFF]: you could turn on/off controller at any time

    : [PAUSE]: Play/pause ; It is convenient for you to see the static affection of led;

S+: The step of the speed will add one by each press

S-: The step of the speed will subtract one by each press

B+: Brightness control ; The step of the brightness will add one by each press

B-: Brightness control ; The step of the brightness will subtract one by each press

M+: Program choosing , up direction

M-: Program choosing , down direction

3. Standard changes as the following form:

Attentions:

    1. Supply voltage of this product is DC*2V~*4V; never connect to AC**0V;

     2. Never connect two wires directly in case of short circuit;

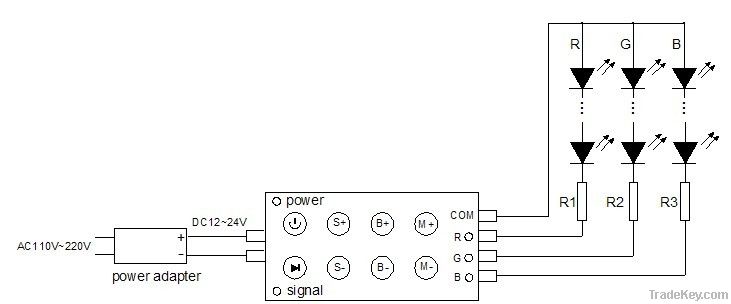

     3. Load wires should be connected correctly according to the connecting diagram offers;

     4. Don't peel off the label on the controller in case any indication of information will be missed;

     5. Warranty of this product is one year. In this period, we guarantee replacement or repairing with no charge, but exclude the artificial situation of damaged or overload working.



Typical Application
