离岸价格
获取最新报价20000 ~ 40000 USD / Set ( Negotiable )
|1 Set Minimum Order
国家:
China
型号:
Track Machine
离岸价格:
20000 ~ 40000 USD / Set ( Negotiable ) 获取最新报价
位置:
Jiaxing city,Zhejiang province
最小订单价格:
20000 per Set
最小订单:
1 Set
包装细节:
Wrapping film
交货时间:
2~3 months
供应能力:
50 Set per Year
付款方式:
Other, T/T
產品組 :
-
China
联系人 Ms. Ariel
No.210,Yazhong Road,Nanhu District,Jiaxing,Zhejiang,China, Jiaxing, Zhejiang

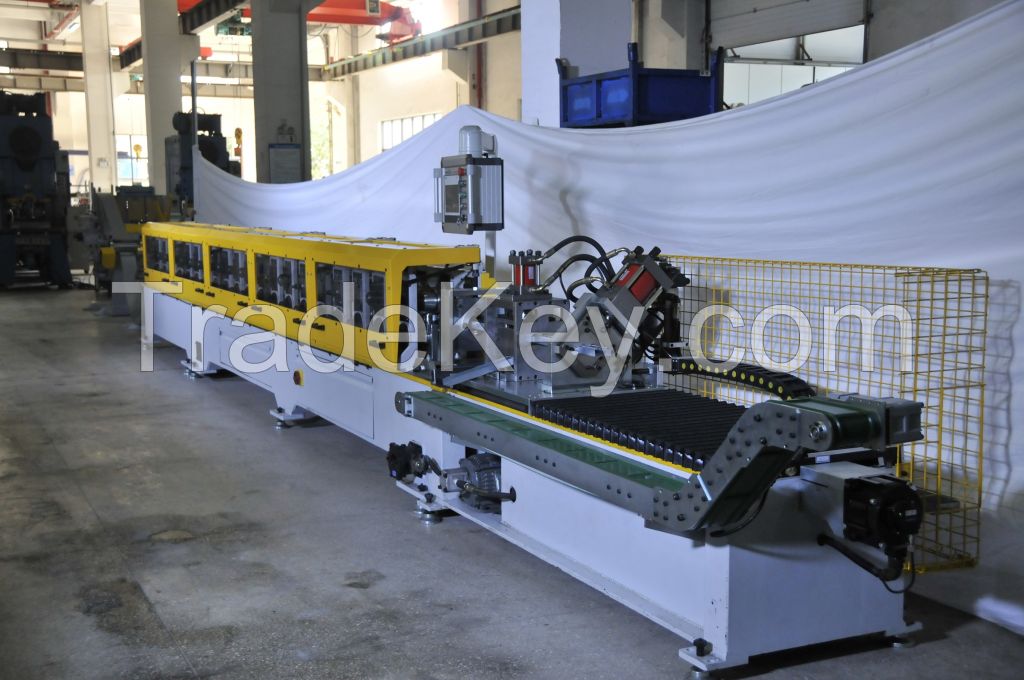

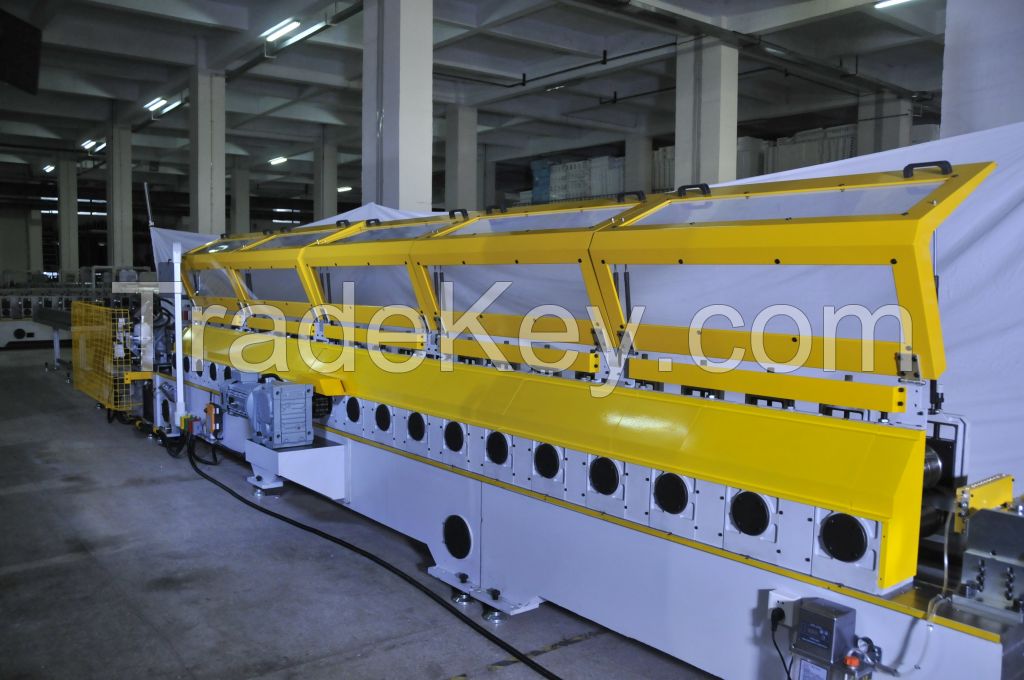

| Roll Forming Machine for track profile factory direct | ||
| 1.Europe design&Top quality: | ||
| Combined Italy design with own R&D innovative thoughts&All raw material and accessories we purchase are good brand. | ||
| 2.Responsible after-sales service: | ||
| Our staff is well-trained and educated in this industry for more than *0 years and ready for over-sea support at any time. | ||
| 3.Guarantee period: | ||
| Within one year since the date of finishing commissioning.The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts. | ||
| 4.Easy operation: | ||
| Machine is controlled by PLC computer controlling systerm. | ||
| 5.Reasonable price: | ||
| We offer the best price in our industry. | ||
|
Our Machine Technical
Parameter
|
||
| Technical process:3T decoiler——Guided feeding——Dispense lubrication——Punching——Roll forming——Cutting to length——Collection table |
| No. | Item | parameter |

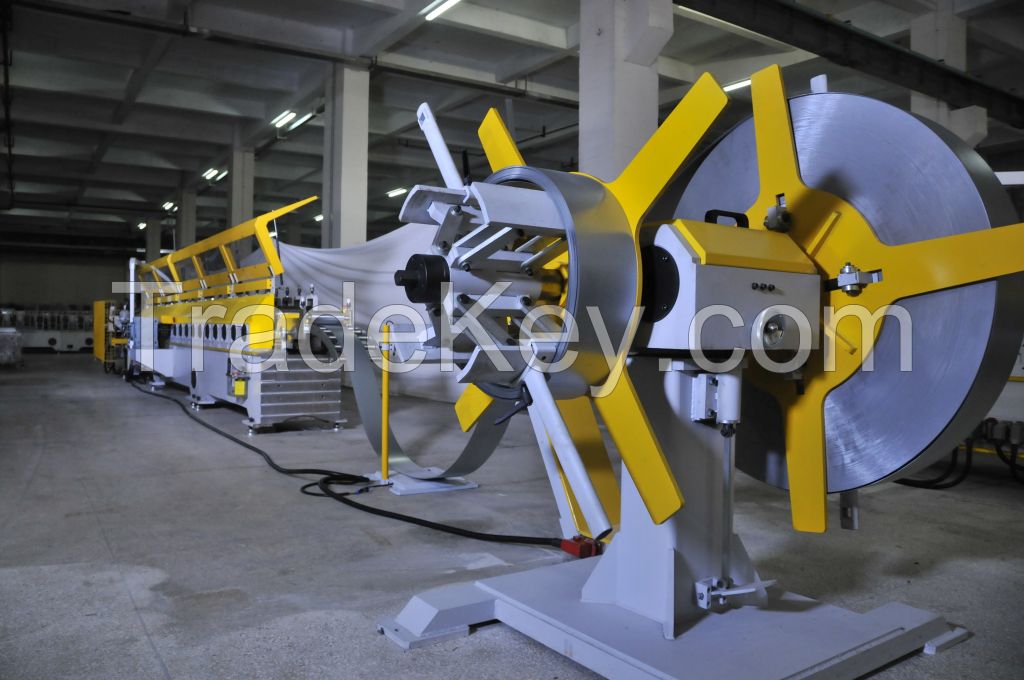

| 1 | Decoiler | 2T Dual-head decoiler(Manual,hydraulic and pnuematic available) |
| 2 | Transmission way | Gear/Chain drive |
| 3 | Voltage | **0V *0Hz 3PH/Customized |
| 4 | Material thickness | 0.**1.2mm/Customized |
| 5 | Forming speed | ****0m/min |
| 6 | Roll stations | *4~*0 stations |
| 7 | Roller material | Cr*2MoV,HRC*8℃~*2℃ |
| 8 | Shaft material | High grade *5# carbon wrought steel |
| 9 | Bearing | C&U brand,9pcs per station |
| *0 | Lining | Seamless steel tube,single surface thickness≥5mm |
| *1 | Cutting | Hydraulic cutting,non-stop fly shear cutting |
| *2 | Material of blad | Cr*2MoV |
| *3 | Control System | PLC,DELTA brand,with touch screen and height adjustable |
| *4 | Encoder and sensor | OMRON brand |
| *5 | Cover | Steel+PC |
| *6 | Collection table | As customer required |
|
|
| 国家: | China |
| 型号: | Track Machine |
| 离岸价格: | 20000 ~ 40000 / Set ( Negotiable ) 获取最新报价 |
| 位置: | Jiaxing city,Zhejiang province |
| 最小订单价格: | 20000 per Set |
| 最小订单: | 1 Set |
| 包装细节: | Wrapping film |
| 交货时间: | 2~3 months |
| 供应能力: | 50 Set per Year |
| 付款方式: | Other, T/T |
| 產品組 : | - |
