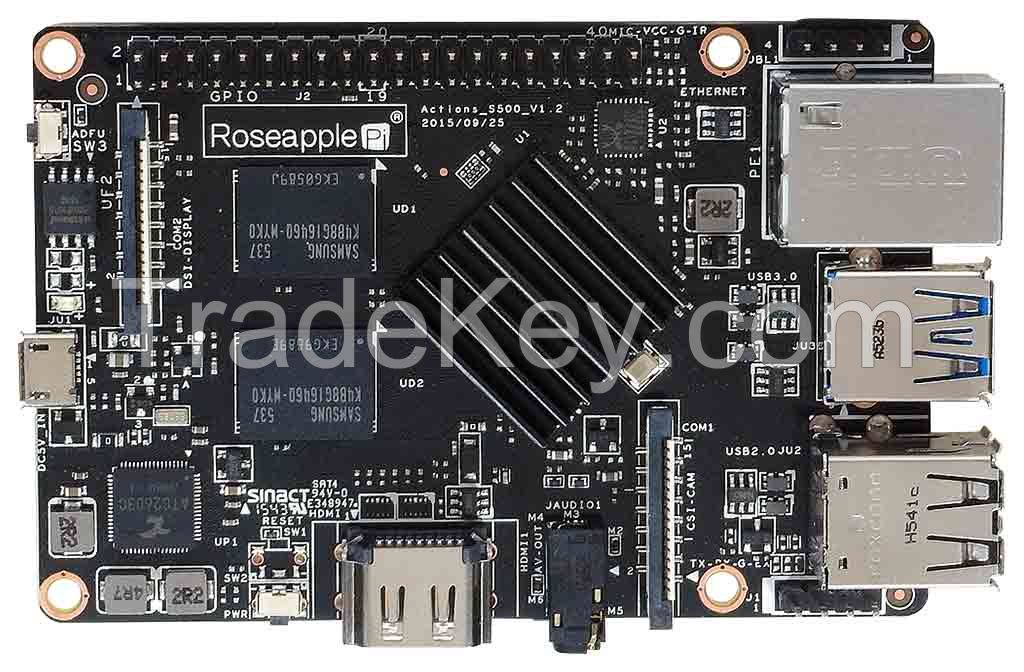

Roseapple Pi is a single-board
computer. Roseapple Pi targets to be a cheap, small and
flexible enough computer for daily life. Built with
Quad-cores ARM Cortex-A9 (*8nm) and PowerVR GPU core- SGX**4, and
open source software, Roseapple Pi can serve as a platform to make
lots of applications for different purposes.
| Functions | Descriptions |
| SoC | Quad-core ARM Cortex-A9 (*8nm) |
| RAM | 2GB DDR3 |
| GPU | Imagination Technologies PowerVR SGX**4 |
| Internal Storage(optional) | 4GB ~ *4GB Support primitive eMMC 4.5 storage |
| Internal Storage | 4MB SPI NOR flash |
| External Storage | Micro SD/TF card extensible (card socket) up to *4GB |
| TV Out | HDMI1.4 with HDCP (HDMI connector type A/C) |
| Audio output | 3.5 Headphone connector |
| USB port | USB 3.0*1 (Type A) |
| USB 2.0*2 (Type A) | |
| Wi-Fi Dongle(option) | Realtek ***8etv, ***8eus supported (**2.*1 b/g/n) |
| PMU and Audio Codec | ATC***3C |
| Ethernet | *0/**0 Mbps |
| External Buttons | On/Off,(Sleep/wake)/Reset |
| Extended header(x*0) | *3.3V,*5V,GND,I2C,I2S, UART,SPI,GCLK,GPIO x*6 |
| Extended header(x4)*2 | Debugging UART*1 |
| Mic-in, Audio R/L, IR receiver | |
| External Camera | MIPI CSI2 |
| External Screen | MIPI DSI interface |
| Power Supply | 5V/2A via MicroUSB connector |
| Operation Systems | Debian, Ubuntu, Fedora, Android 5.0/5.1 |
| 国家: | Taiwan |
| 型号: | M1A50S-200 |
| 离岸价格: | 获取最新报价 |
| 位置: | Taiwan |
| 最小订单价格: | - |
| 最小订单: | 100 Unit |
| 包装细节: | per box |
| 交货时间: | 8weeks |
| 供应能力: | - |
| 付款方式: | T/T |
