Very High-Performance Multi-Zone
Walk-Through Metal Detector SCANMASTER/GRT+Plus

TECHNICAL FEATURES
- DSP (Digital Signal Processing) Technology with high-speed processors in use
- 8 Parallel Overlapping Detection Zones
- Very High Sensitivity Spectrums thanks to its Unique coil geometry and advanced DSP Technology, can detect even very small metal objects performing ultimate sensitivity spectrums
- Separate Zone Sensitivity Setting Feature for each distinct detection zones
- Strong interference filtering circuitry and software preventing false alarms
- Audio-Visual and Remote VIBRATION Alarm indications not likely to the conventional metal detectors
- Zone LEDs on Both at the Entrance and Exit Side of the WTMD Passage providing very high visibility of alarms
- Random Alarm Function at an adjustable percentage of clean visitors
- Automatic Sensitivity Adjustment of all distinct zones for a reference visitor profile after passing through the WTMD at an adjustable number of pass troughs
- Thanks to our advanced controls, the Assembly Direction of the WTMD can be made reverse by changing the IR Sensors to Reverse Mode whereby there are limitations at installation sites and specific usage of the WTMD is required by the authorities (Operation Status LEDs and Traffic LEDs change place automatically and the IN/OUT Counter Values change as well)
- 4x*0 Blue Backlight LCD and Fonts in White Colour
- Real Time Date-Time Feature and display on LCD
- Unique Device ID display at start up
- USB Port on WTMD Keypad to collect statistical info or Machine Cloning
- Exporting statistics of the WTMD with Device ID and Date-Time Stamp to an external flash memory using the USB Port
- Menu languages in English, French and Turkish (other languages are optional)

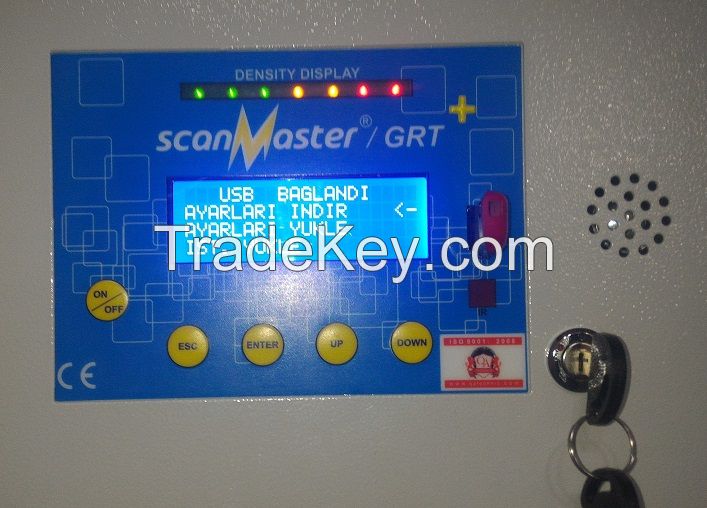

- Tri-colour Metal Density Display LED Indicators on the Control Unit
- Green/Red Traffic Through Indicators at the entrance side of the WTMD
- *5 Security Levels (5 Standard, *0 Programmable), ****9 Adjustable Sensitivity Steps at Each Security Level
- 6 Digit IN/REMAIN/OUT Traffic Counters (Automatically deducts out visitors from incoming traffic) and Alarms count automatically

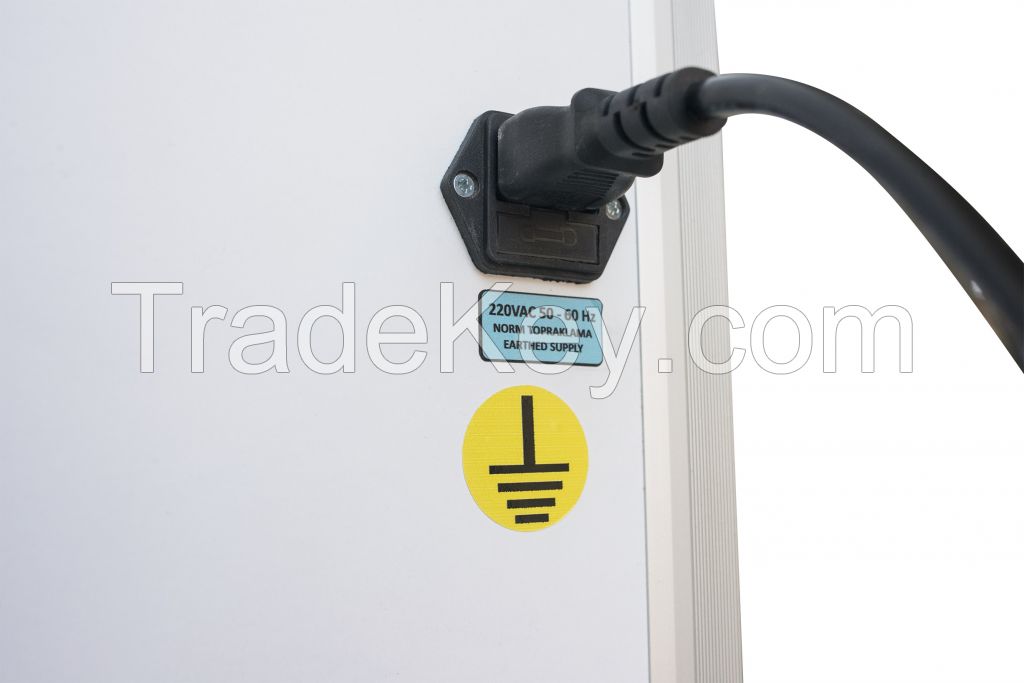

- Power Connector on Control Unit at top and on One Side Panel for power connection from bottom or top
- Electromechanical Hardware Key for access to Menu and 4 Digit Password Protection
- Both RS **5 and RS **2 Ports to Connect to a PC (Software Optional)
- Relay Output to provide dry contact at alarm state to enable the WTMD to integrate to a security system
- Automatic Operation Channel Selection Feature enabling interference free operation of multiple WTMDs in close vicinity without the need for any manual adjustments
- High Visibility Green/Red Operation Status LEDs at the exit side of the WTMD (Green: Proper Operation Red: Failure)
- Built-in Battery Back-Up System for continuous operation of minimum 2 hours against electricity cut offs (Optional)
- Settings of the WTMD does not change when the WTMD is Turned Off or Electricity will be cut off
- IRDA Pilot Remote Controller for WTMD Settings (Optional) Settings can be managed through the keypad or the Pilot Remote (Pilot Remote is Optional)
- GRT (Gun Reveal Technology) Our unique feature enables setting a secondary sensitivity threshold for gun size threat objects other than the General Sensitivity Level of the WTMD to enable the WTMD Deliver wireless signals to a carry on GRT Gun Alert Module, which provides Instant Vibrating Gun Alerts.Vibrating and/or Visual LED alarm indicators automatically alert the operators for high-risk visitors. (GRT Module is Optional)
- Equipment is designed and produced for indoor environment operations
- Robust Design, Laminated MDF Side Panels, Aluminium U Profiles, Sliding LED Cards and Semi Transparent LED Covers, Metal Control Unit Casing
- ABS Plastic Protective Footers and Covers on Top
- Safe for wearers of pacemakers, pregnant women and magnetic storage media, Very Low Frequency Operation.
- Can be assembled in approximately *0 minutes

ORIGIN: TURKIYE (EU Preferential Origin)
Note: Basic features of our WTMDs are as listed above and we reserve the right to make changes prior to announcing. Please refer to our offer for Features and optional accessories of our WTMDs at time of your orders.
