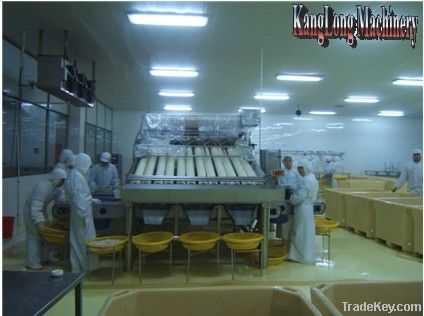

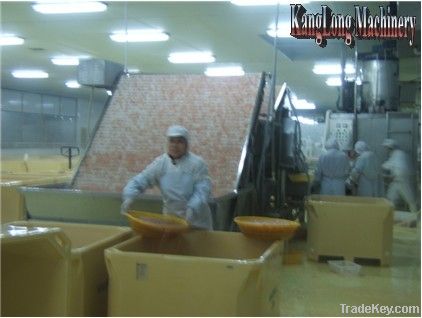

Shrimp garding machine
1,Introduction:
the machine which is accord with the industry standard of food processing equipment, is made of SUS**4 stainless steel in order to wash it conveniently after finishing the working. this device is made up of three parts: one-level conveyor, two-level conveyor and screener roller. screener roller is composed of at least two rollers with the shape of big in top and small in buttom. there are space can be formed between two rollers which selecting the shrimp. it finishes the all the producting process from transporting to selecting automatically and increase the efficiency very much. the device adopt numerical to control specification of shrimp, the precision can reach industry standard, it is the perfect processing equipment for marine product.
application: different specification screening for shrimp with or without head and shrimp meat.
2.Material and Technique:
a,The first two converysuppors is make of*5×*5×1.5mm and *0×*5×1.5stainless steel square pipe, the elevating is make of **4/2B stainless steel panle of 1.5mmthickness
b,The convery is make of high strong polyvinyl chloride metal band of width ***6mm,the baffle height is *0mm, two-stage
lifting,the first is ***0mm,second ***0mm.
c,convery guide rail is 1.5mm thickness **4/2B stainless steel panle and fibreboard.
d,speed-down Motor:2pcs,stainless steel water pump:1.1kw,1pcs,UCF**5 axes 8pcs.
e,body support Φ**4×2.5mm **4/2Bstainless steel square pipe.
f,assorting cylinder is Φ**5×**0mm plastic Steel,*2pcs.
With UCP**7 and UCF**7 axes *4pcs
g,guard plate both sides and exit is 1.5mm thickness **4/2B stainless steel
h,roller drive: slowdown motor 1pcs,1.5kw
i,At bottom,there are 5pcs conveyors,the convery is polyvinyl chloride steel,width:**5mm.each length:***0mm
j,Garding converyor support is 2.0mm thickness **4/2B stainless steel, UCF**4 axes *0pcs.0.4kw motor 2pcs.
k,electrical system:control box 1pcs of stainless steel sheel,the convery and assorting cylinder is controlled by microcomputer
国家: | China |
型号: | KL1500 |
离岸价格: | 17500 ~ 18500 / Set 获取最新报价 |
位置: | china |
最小订单价格: | 17500 per Set |
最小订单: | 1 Set |
包装细节: | wood package |
交货时间: | 30days after advance |
供应能力: | 30 Set per Month |
付款方式: | T/T, L/C, PayPal |
產品組 : | Shrimp Grader |
