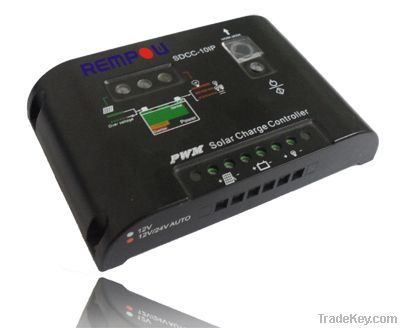

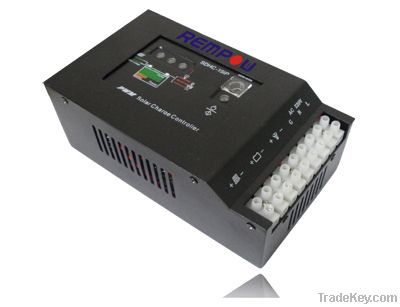

solar charge controller
This is a *2V/*4V auto-sensing charge controller specialized for solar home system. Its stability can be satisfactory to most of the house-holders. Charge controllers or voltage regulators can protect batteries from overcharging, and other mishaps such as gassing, loss of electrolyte and plate damage. Recommended maximum solar power is up to **0 watts.
By monitoring battery voltage they regulate the charging current from the PV Solar Array. This allows the charging of your batteries whilst not overcharging them. The also contain suitable protection to prevent any current drain from battery to the PV Solar Array, during which the PV Solar Array cannot generate enough electricity, such as in night time.
Features:
Both English and Chinese manual included.(instructions on how to install the solar controller)
Low cost, designed for DIY and a push for cheaper solar installation solutions.
High Reliability, advanced control circuit and designed to last.
Electronic protection, separate fuse circuit, overload protection, wiring mistakes during installation will not damage the controller.
LED light indicate you charge status of your batteries. Lower power, full power, over-charged, over-load, over-discharged, reverse connection etc.
Industrial level protection standards.
No adjustable resistance is needed. Flash memory is employed to save control points.
Automatic adjustment for *2V or *4V systems.
Note:
For *2V solar system: Rated voltage: *2V, solar panel rated work voltage: *7V, Max. power: **0W;
For *4V solar system: Rated voltage: *4V, solar panel rated work voltage: *4 V, Max. power: **0W;
Vital technical information:
|
Type |
SDCC**0A |
|
Rated charge current |
*0Amps |
|
Rated load current |
*0Amps |
|
Work voltage |
*2V; *2/*4V; |
|
Over load, short circuit protection |
If the load current exceeds the rated current by 1.*5 times for *0 seconds or by 1.5 times for 5 seconds. Short circuit protection will act if 3 times rated current happens; |
|
Self-consumption current |
≤ 6 mA |
|
Charge circuit voltage drop |
≤0.*6V |
|
Load circuit voltage drop |
≤0.*5V |
|
Over voltage protection |
*7V (2 times for *4V system) |
|
Work temperature |
Industry stage: **5°C to **5°C; |
|
Boost charge voltage |
*4.6V (keep *0 min, 2 times for *4V system, only used when over-discharged last time) |
|
Direct charge voltage |
*4.4V (2 times for *4V system) |
|
Float charge voltage |
*3.6V (2 times for *4V system) |
|
charge return voltage |
*3.2V (2 times for *4V system) |
|
Temperature compensation |
*5mv/°C/2v(Boost charge, Direct charge, Float charge, charge return voltage); |
|
Lower voltage indicate |
*2.0V (2 times for *4V system) |
|
Over discharge voltage |
1.1V(no load, 2 times for *4V system, modified voltage by discharge rate of battery) |
|
Over discharge return voltage |
*2.6V (2 times for *4V system) |
|
Control mode |
PWM charge mode; modified discharge voltage by the discharge rate |
|
Certification |
CE, RoHS |
|
LED indications |
green-yellow-red battery levels for voltage warning and disconnected |
|
Battery type |
Lead acid (GEL, flooded, AGM) |
