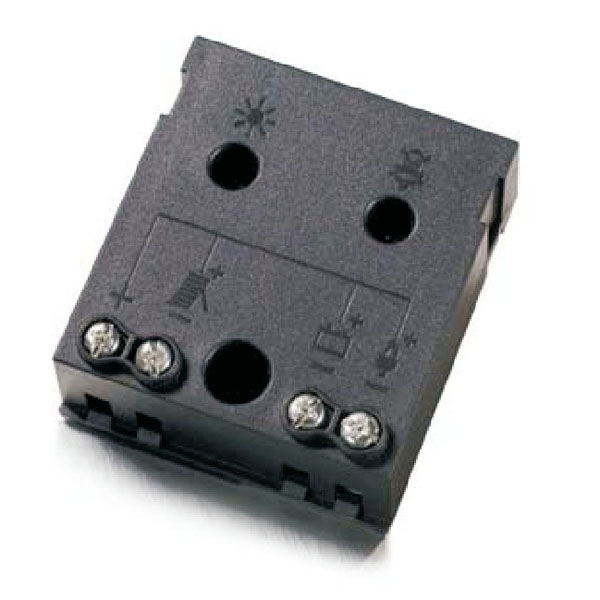

Solar Controller

详情

1) PRCC solar charge controller series is especially designed for small solar systems with the need of a low battery disconnect feature.
The  regulation  circuit  provides  serial  regulation  to  prevent  single  cell  overheat problems (Hotspot) of short-circuited solar panels.
2) The PRCC features a self-resetting fully electronic fuse, that protects the load output from overcurrent. Additionally the regulator is reverse polarity protected on the solar as well as on the battery terminals. The terminals can hold smaller cables as 2 well as thick wires up to *6mm  (AWG 5).
3) 2 LEDs indicate the charging process and the Low Voltage Disconnect function.
4) The PRCC  fits  into many recreational applications as well as solar home systems  for rural electrification. It is a perfect solution for cost-sensitive systems.

TYPE PRCC*4/*8 PRCC*2/*6
Nominal voltage: *2V
Boost voltage: *4.4V
Float voltage:   *3.8V
Load disconnect voltage: *1.5V
Load reconnect voltage:   *2.8V
Max.  solar charge current:  2A/4A
Max. load current: 6A/8A
Self consumption: <4mA
Ambient temperature range: **0 to **0°C
Dimensions: *2 x *5 x *9mm
Weight: *9g
IP protection IP*2 P*2
