solar module laminating machine

详情

INSTRODUCTION:

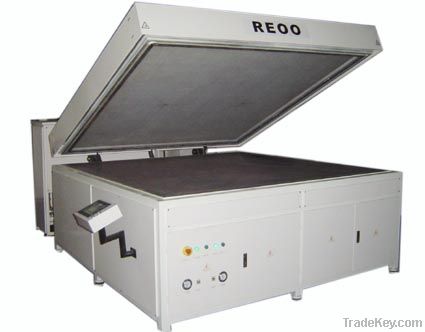

RO-B6 is a semi-auto solar module laminator. The lamination cycle can be controlled by PLC. The operator works the touch-screen to control the cycle ti see the processing data.

BENEFIT:
1. PLC+ touch screen control system
2. All parameters are set up on the touch-screen
3. The touch screen display a diagram with all vacuum and temperature values in English
4. Air pressure are adopted for the upper chamber drive system, ensuring safe and smooth operation
5. Adopt thermal oil heating plate system
6. Vacuum pump with high quality

Technical parameter

Laminating area: *5*0mm x *5*0mm.
Total power consumption: *5KW
( AC**0V, *0 Hz, or according to customer's need)
 Air source: 0.6 - 1.0 MPa.
Operating mode: Manual / Automatic.
Control system : PLC .
HIM system: Touch screen
Heating mode: Oil Heating ( SD**0 heat-conducting oil, capacity: **0 L, flow pressure:0.3 Mpa.),Inculde: Main and adjustable heating.  Temperature control: PID intelligent temperature contol system.Temperature uniformity in working area: ≤ ±1.5 ℃
Temperature control accuracy:≤± 1 ℃
Temperature control range: *0℃ - **0 ℃Pumping rate:  60 L/s .Laminating time: *- 4 minutes( excluding sollidification time )
Heating rate: **5℃ at room temperature with *0 to *0 minutes
Vacuum rate: **0 L / S, the limit vacuum *0 ~ *0 Pa, vacuum Time: *0 seconds
Silicone sheet size: ***0mm * ***0mm, 5 mm thickness. It will be changed after ***0 times.
Lid opening: by air.
Total weight: 5.0T

 3.Production capacity:

Conventional **0 Wp (1**2mm * **6mm);  Module, 2 pcs at 1 laminating times

**0 Wp* 2 pieces/ time * 3time / h*8 hours * **0days = 2.*6 MWp / year

4. Payment terms:

Payment: T/T *0% deposit and balance before shipment by L/C or T/T
