产品规格

stepped tile forming machine:stepped tile forming machine

详情

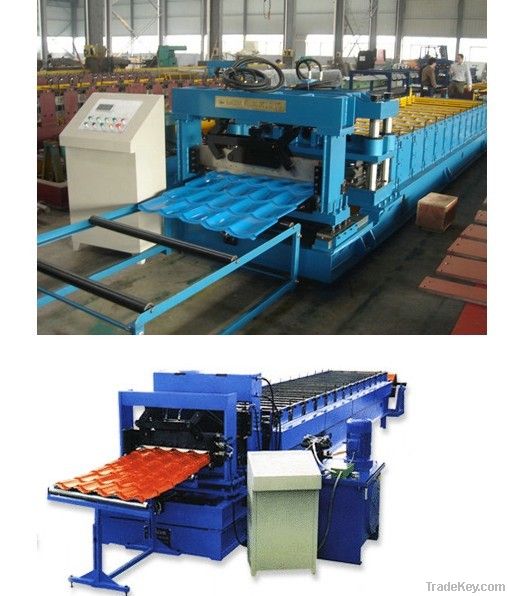

	Steel Tile Forming Machine

Steel Tile Forming Machine

Introduction

The line consists of decoiler, sheet guiding equipment, roll forming section, punching equipment, cutter, supporter, hydraulic system, control system. The tile can be widely used in garden factory, resort, pavilions, hotel and villa, exhibition hall, vacationland.

Main Technical Parameters

1. Material Spec : Q**5 or *4 KSI ; Thickness : 0.4 mm to 0.6 mm

2. Hydraulic decoiler Max. Capacity: ***0kgs

3.Controlling system: PLC
4.Main machine power: 7.5kw;

Hydraulic station power: 5.5kw
5.Step length: ******0mm

Step height: *4mm
6.Working speed: **3m/min

7.Type of cutting: roll-formed and length-set cutting

8.Power: **0V/3ph/*0Hz or at the buyer’s requirement

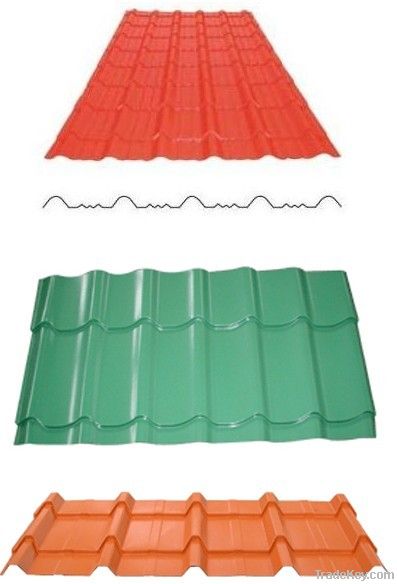

Panel samples

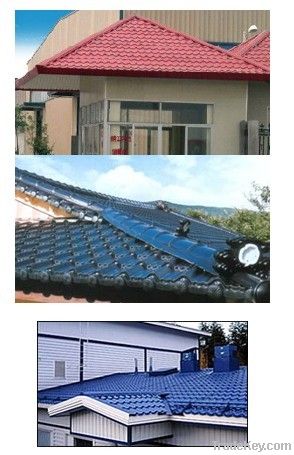

Engineering Examples

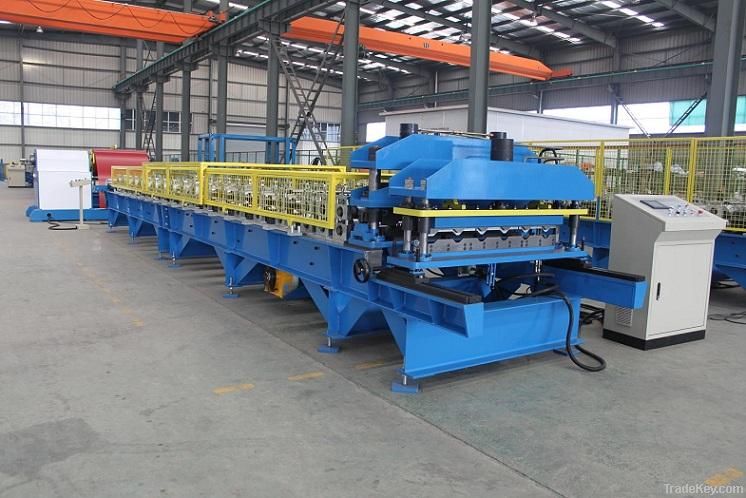

Product Name: Color Tile Roll Forming Machine

Introduction
Colored steel tile forming machine consists of : uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table.

Working Flow
Decoiling the coils—→Sheet Guiding—→Film Covering—→Roll Forming—→Measure Lengh —→ Cutting the Panel—→Panels to the Supporter.

Technical Parameters

Material Spec
Thickness of Coil Sheet
Coil Width
Working Speed
Power Requirement
Hydraulic Station Power
Passive Uncoiler
Quantity of Stands：
Controlling System
Type of Cutting
Machine Dimension
Total Weight
Voltage:

: Colored and galvanized steel sheet
: 0.*5 **0.6 mm
: ***0mm/***0mm/***0mm
: 2.0 ～ 3.0 m/min. (step distance at **0mm,)
: Main motor power: 5.5kw
: 5.5Kw
: Max. Capacity: ***0kgs
: About *5groups
: PLC
: Roll-formed and length-set cutting
: About ***0×***0×***0mm
: About ***0kg
: **0V 3 phase *0Hz or to the buyer's requirement

Machine Features
1. Precise forming.
2. High-solid forming stand guarantees the good and uniform quality of final products
3. The operation automatically minimizes the tolerance of cutting length.

Products Feature
1. A stylish and attractive design,giving the apperance of a traditional roof tile.
2. Resistant to frost,heat,hail and gales : **0% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa, civil construction etc.

We have many other models and we can design & manufacture the machines according to customer’s designing and profiles.
