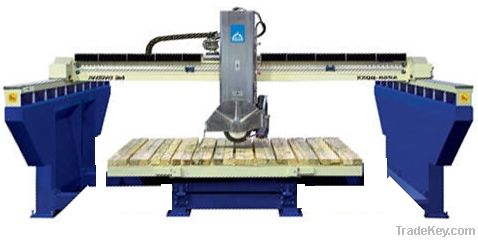

This bridge saw is for cutting marble and granite tiles. PLC controlled with cutting dimensions set by terminal . All operation are executed either manually by the operator or automatically by the program carrying out parallel cuts with max 8 different dimensions repeatable up to ***9 times. The switchboard, with operation s, programmer and liquid crystal display on it, is mounted on the right hand side of the machine. The switchboard make operator easily to control the machine from the sawing area when the stone is being positioned. The saw is equipped with a laser illumination system to aid in lining up the cut. The most important is the blade holder of machine can tilting from 0 to *5 degree for chamfering cutting.

Technical Parameter
Max.working dimensions(LxWxH):  ***0****0***5mm
Max.diameter of blade:                       **0mm
Table dimensions(LxW):                   ***0****0mm
Table tilting degree:                            ***5
Table rotating degree:                        ****0
Head tilting degree:                            ***5
Main motor power:                              *5kw
Overall dimensions(LxWxH):            ***0****0****0mm
Weight:                                                  ***0kg
