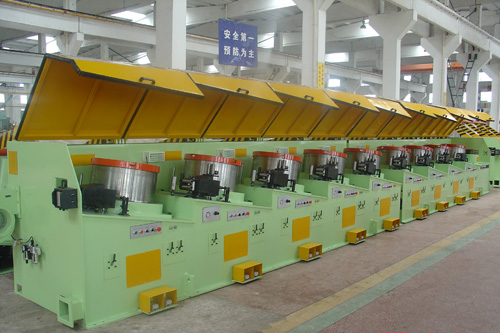

Straight Line Wire Drawing Machine

详情

Production Line Technical Parameter: 1. Capstan: Adopted the cast steel with tungsten carbide sprayed (or wearing resistance alloy), hardness HRC> *0, good wear resistance. With air cooling and narrow tube water cooling for choose. Reasonable taper designed to ensure that steel wire is not breaking and chaos 2. Driven system: The LZ***-LZ**0 series machine are adopted the one-level or two level narrow V-belt with steady driving function. The LZ*******0 series machine are adopted the first-level narrow V-belt + first-level hardened gear (Spiral bevel gear with a deviation correction device) for driving with good function of high engagement factor, smooth transmission, low noise, it also can be driving by first-level narrow V-belt + standard hardened gear box for driving 3. Die-box: Water cooling, with reasonable installation, adjustable on up and down, left and right way, with wire press devices to reduce the vibration of steel wire, so that sure the line is not often occur wire mess status. Optional rotary die boxes, pressure die-boxes or die-boxes with a debris-remove device 4. Tuning Adjustment mechanism: Tuning roller surface with wear resistant coating, with pneumatic anti-tension tuning, the tension can be adjusted 5. Control method: Speed adjust by AC frequency converter, whole digital control, touch screen man-machine interface 6. Wire uncoil method: H-type uncoiler or Pay-Off Rack 7. Take-up coil method: Optional Vertical Take-up coiler or H-type coiler 8. Security and environmental protection: This machine lines are adopted fully enclosed protection system, good security; And we can design a dust-remove pipeline system according to user needs to reduce dust pollution 9. Suitable drawing Material: Welding rod; Welding wire (Gas protection welding wire, submerged arc welding wire, flux cored wire, etc); Steel wire (High, medium and low carbon steel wire, stainless steel wire, pre-stressed steel wire, tire steel wire, hose wire, spring steel wire, steel cord, etc); Electrical wire and cable (aluminum clad steel wire, copper wire, aluminum wire, etc. ); Alloy wire and other metal wire
