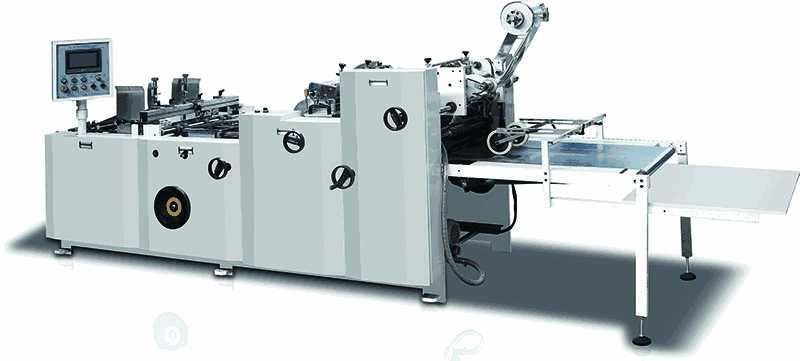

TC-650A/1080A window
patching machine with creasing and punching is widely used in the
window patching to the liquor box,gift box,tissue box,cosmetic
box,toy box,etc.It can be used for window film
cutting,creasing,punching,gluing and patching of card.Its electric
parts are Yaskawa,Schneider,Omron
1)The paper
feeder parts is controlled by the servo motor, the paper pile make
the intermittent movement in the process of the paper feeding, the
belts operate long life, process the paper products to the
conveying parts steady and orderly.
2)The paper
conveying parts installed the four conveying chains with the
four pushing blocks, it can be adjusted according to the paper
shape.
3)The gluing
parts adopt the adjustable parts gluing structure, it is convenient
for adjustable according to the paper requirement and the gluing
position, save the gluing quantity, it is easy for pulling out the
gluing parts, convenient for washing. The gluing roller stopped the
gluing when stopped the machine.
4)The creasing and punching part can move left and
right in one step.The punching is controlled by two cylinders which
can move anywhere.About the scarp from punchingwill be collected in
one box.The pressure of creasing can be adjust the film length
no-stop.Because the advanced orientation design,the film can stay
in the good position.
Main
Technical
Model | TC-650A |
Paper grams | 200-1000g/m2 |
Work capacity | 5000 pcs/h |
Blank length |
150-560mm (5.91-22.04 英寸) |
空白宽度 |
120-500毫米 (4.72-19.68 英寸) |
电影 长度 |
30
-
300
毫米 (1.18-11.81 英寸) |
胶片宽度 |
40
-
300
毫米 (1.57-11.81 英寸) |
薄膜厚度 | 0.08-0.30 |
主电机功率 | 7 千瓦 |
重量 | 3 000公斤 |
机器尺寸(LxWxH) | 6 500x1200x1600毫米 |
