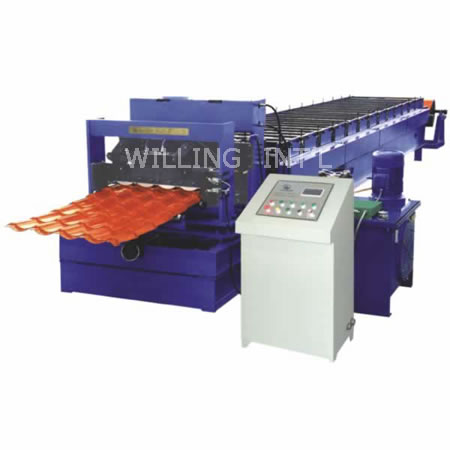

Tile Forming Machine

详情

Tile Forming Machine Features: 1) Consists of uncoiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system, supporter table 2) Material spec: colored and galvanized steel sheet at yield stress *3KSI 3) Thickness of coil sheet: 0.5 - 0.6 mm 4) Coil width: ***0mm5) Working speed: 3.0 - 4.0m/min (step distance at **0mm) 6) Power requirement: a) Main motor power: 7.5kW b) Hydraulic station power: 5.5kW 7) Passive uncoiler max. capacity: 5, **0kg 8) Quantity of stands: *5 groups 9) Controlling system: PLC *0) Type of cutting: roll-formed and length-set cutting *1) Machine dimension: about *8, **0 x 1, **0 x 1, **0mm *2) Total weight: about 9, **0kg *3) Voltage: **0V 3 phase *0Hz or at buyer's requirement *4) Working flow: decoiling the sheet-sheet guiding-film covering-roll forming-measure length -pressing-cutting the panel-panels to the supporter
