Touchless wheel alignment By Lawrence Engineering Company,

Touchless wheel alignment

离岸价格

获取最新报价

2565 ~ 26086 USD / Set

1 Set Minimum Order

国家:

China

型号:

LS8+

离岸价格:

2565 ~ 26086 USD / Set （面議）获取最新报价

位置:

China,GuangDong

最小订单价格:

2565 per Set

最小订单:

1 Set

包装细节:

Wooden box

交货时间:

15-20days

供应能力:

1000 Unit per Year

付款方式:

T/T, Western Union, Money Gram, PayPal, Other

產品組 :

touchless wheel alignment

产品规格

Power: 400w
Power Supply: 110V/220v
Max. Wheel Weight: 280KG
Brand Name: Lawrence

Color:Customized
Warranty:36months
Vehicle Database:40 Thousans Car Databases
Languge:Global Multi-language
Camera:6.4 mega pixel
Package:Wooden Box

详情

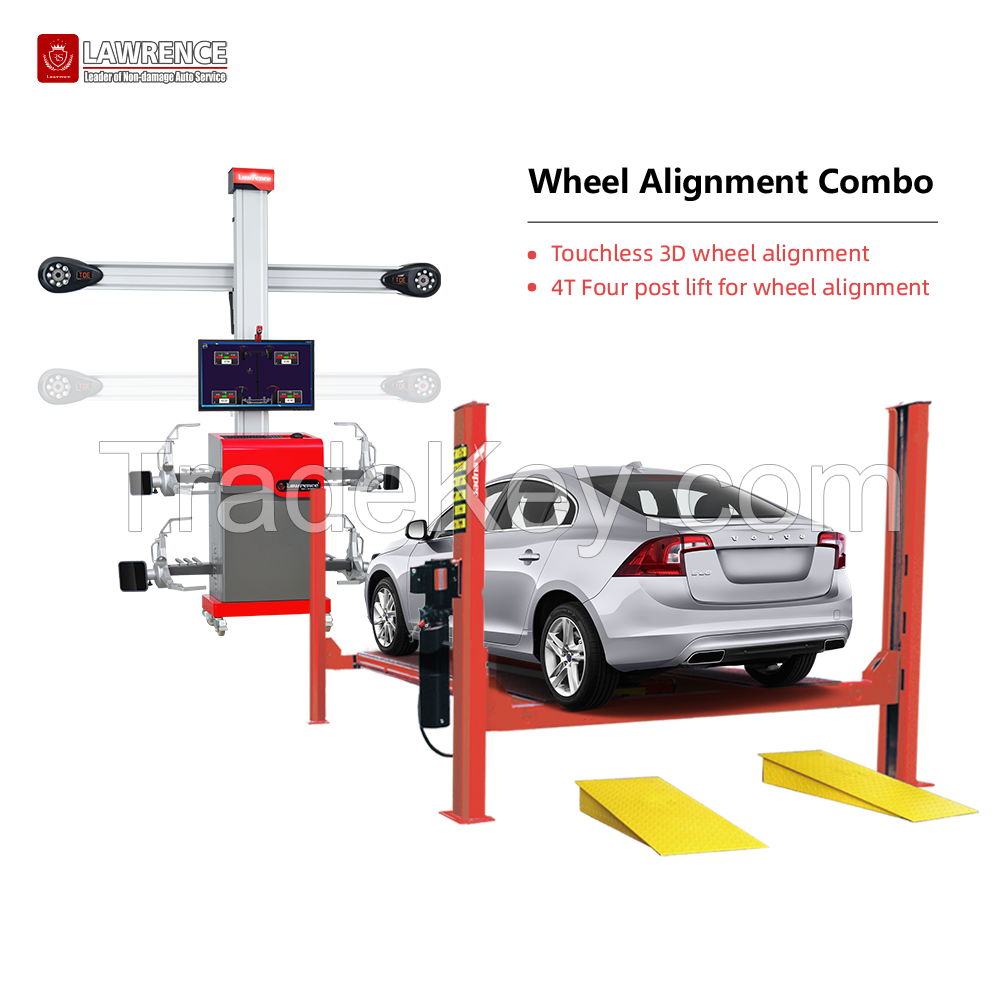

Touchless 3D Wheel Alignment

We are not the common 3D Wheel Alignment

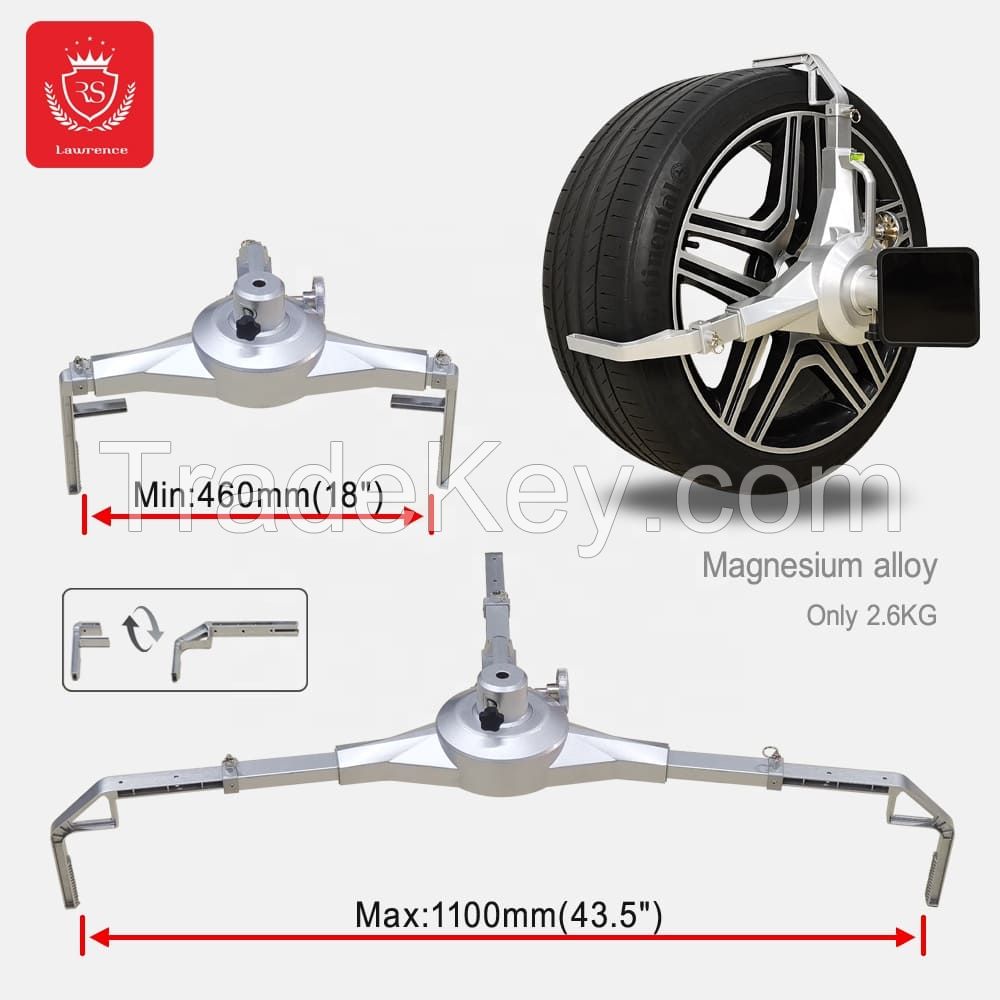

TouchlessWheel ClampMade of Magnesium
MiniTarget (*4cm Size)Black Technology
6.4 MPSONY IC High Defination Camera
IntelligentAuto Lifting 3rd Generation System
What isTouchless 3D Wheel Alignment?
The real touchless 3D wheel alignment is not the common wheel alignment that uses touchless wheel clamp to achieve the touchless measurement. Only 3D wheel alignment with Super Compensation System can achieve the touchless measurement.

* The Super Compensation System is not the ordinary rolling compensation, and only a very few wheel alignments with such Super Compensation System on the current market !
What's the advantage of Super Compensation System?

① A 3D wheel aligner with Super Compensation System can ensure the high measurement precision even uses in a long time.

② If the alignment without Super Compensation System,its measurement precision will greatly reduce as the deformation of target and wheel clamp.
What's the advantage of 3D wheel alignment functions?
1,For the touchless wheel clamp,thereis no metal contact between wheelclamp and rim during the clampingprocess. No damage to the rim !
2, Some brands of machine are promoted with 5MP, 6MP or even 8MP camera, but many of them are false. True high definition cameras can support the use of very small targets.

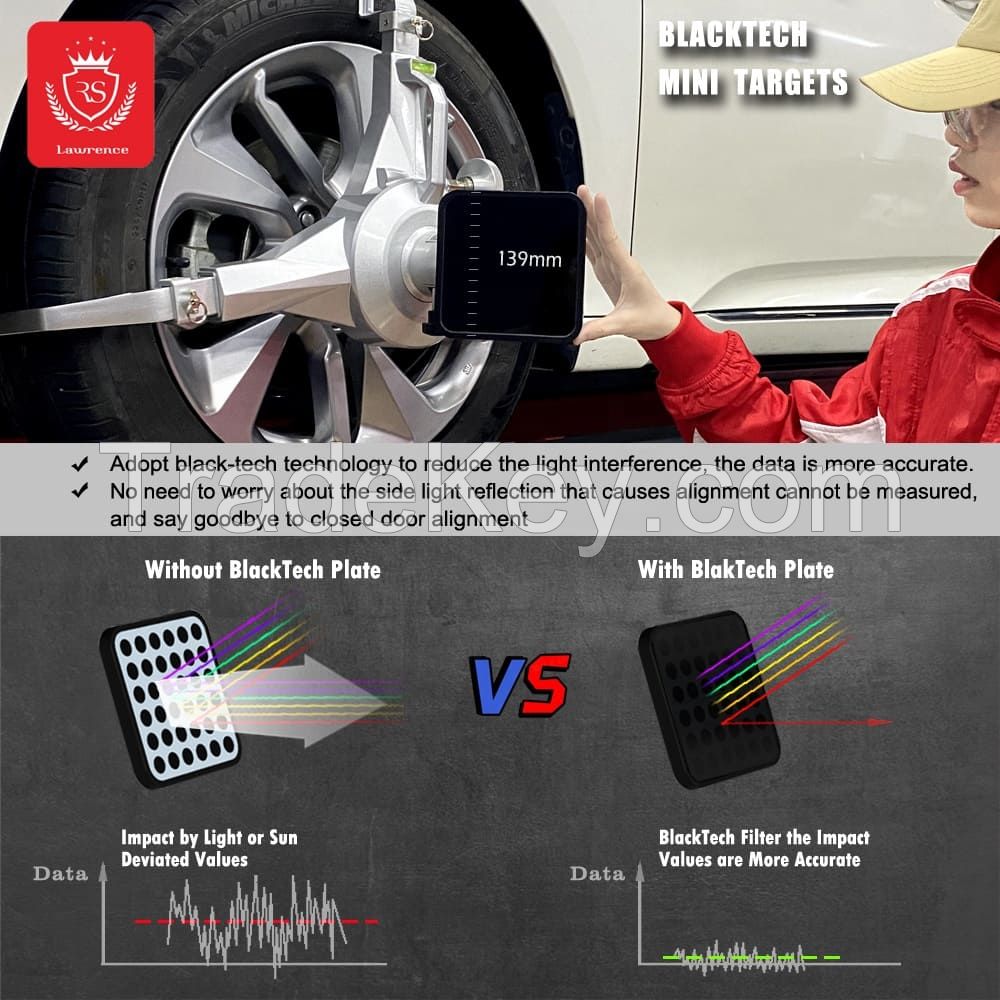

3,Adopt the black-tech panel,which can reduce the interference of external light,make sure the data more accurate more stable.
4,IAA Auto Tracking System(since ***8) can automatically adjust the height of crossbeam according to the length of vehicle wheelbase,avoid the target to appear at the edge of camera,ensure the data accuracy.
5,Smart Window is Lawrence's global patent. It brings a new experience to human-computer interaction. Smart Window can display the current pushing angle in real time,so that users control the whole pushing measurement process in anytime. All in all,pushing measurement is an easy job.
What is AI Steering Wheel Adjustment Function?
For some old cars with loose steering wheel structure,this function can intelligently perceive the condition of gap of steering wheel structure. No need to use steering wheel holder and test car again and again.Fool-style operation, which can solve the problem of repeated adjustment efficiently.

Measurement Item	Accuracy	Range
Display Accuracy	1'/0/*1°/0.1mm	1'/0/*1°/0.1mm
S.A.I(Kingpin)	±5'	*5°
Camber	±2'	*0°
Caster	±5'	*5°
Toe	±2'	*5°
Thrust Angle	±2'	*0°
Setback	±2'	*0°
Track Width	±2mm
Wheel Base	±2mm

Product Spare Part List
Standard Parts

1,Mini Black-tech Target
2,touchless wheel clamp
3,Turnplate
4,Luxury Cablnet
5,CD&Dongle
6,*2''Monitor
7,Steer Wheel Holder&Brake Pedal Depressor
8,PC
9,Printer
*0,Mobile Trolley(For *-point wheel clamp)
*1,Drive-on Camera
*2,Keyboard&Mouse
*3,Antistatic Needle
Optional Parts
1,*8.5''Monitor
2,Calibration Kit
3,*-point wheel clamp&stap
4,Mobile Trolley(For *-point wheel clamp)

国家:	China
型号:	LS8+
离岸价格:	2565 ~ 26086 / Set （面議）获取最新报价
位置:	China,GuangDong
最小订单价格:	2565 per Set
最小订单:	1 Set
包装细节:	Wooden box
交货时间:	15-20days
供应能力:	1000 Unit per Year
付款方式:	T/T, Western Union, Money Gram, PayPal, Other
產品組 :	touchless wheel alignment
