Introduction
Planar Lightwave Circuit Splitter
(PLC Splitters) is a kind of power splitter based on the
integrated quartz baseplate with small size, wide operating
wavelength range, high
reliability,
andgooduniformity so on,especially suitable for passive optical network (EPON,BPON,GPON,etc.)
to connect the central office and terminal equipment
forachievingthebranchingoftheoptical
signal.So far there are two
types of PLC 1—N and 2—N Splitter .PLC 1—N and 2—N Splitter
divide uniformly optical signals from one or two s to
multiple outputs, and splitter can be operated in reverse
direction to combine multiple signals into fiber or two
fibers.
Production
technology
The PLC splitter
adopts semiconductor process (photolithography, etching, and
developing technology so on) production. Waveguide array is
located on the upper surface of the chip, and the shunt function
is integrated on the chip, which is implemented on a chip 1, 1
branching. Then, couple the end and the output end€™s the
multi-channel fiber array and packing separately at both ends of
chip.
Compared with FBT
SPLITTER,PLC SPLITTER has the following few advantages:1.Loss is
not insensitive to light wavelength, so it can meet transmission
needs of different wavelengths.2.spectroscopic uniform, the
signal can be uniformly allocated to the user.3.compact
structure, small size, can be directly installed in the existing
handover box, you do not need to leave a lot of space for
installation.
4.single device has
a lot of shunt channels of, can achieve more than *2
road 5.multi-channel is low cost, and its cost advantage is
obvious if it is divided more and more
At the same time,
the main drawback of the PLC splitter are as follows: 1.device
production Technology is complicated, high technical threshold,
Chip is monopolized by foreign companies because of the domestic
companies producing mass packaging production seldomly1.Compared
with FBT,its cost is much high, especially in the low channel
splitter.
Classification

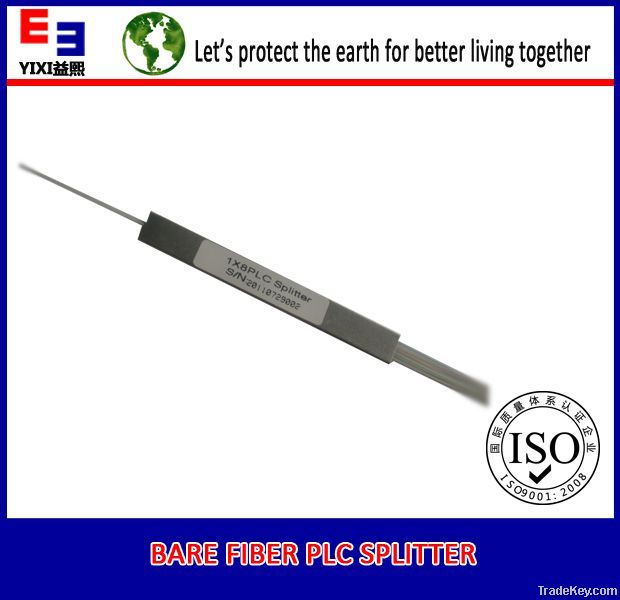

BARE FIBER PLC

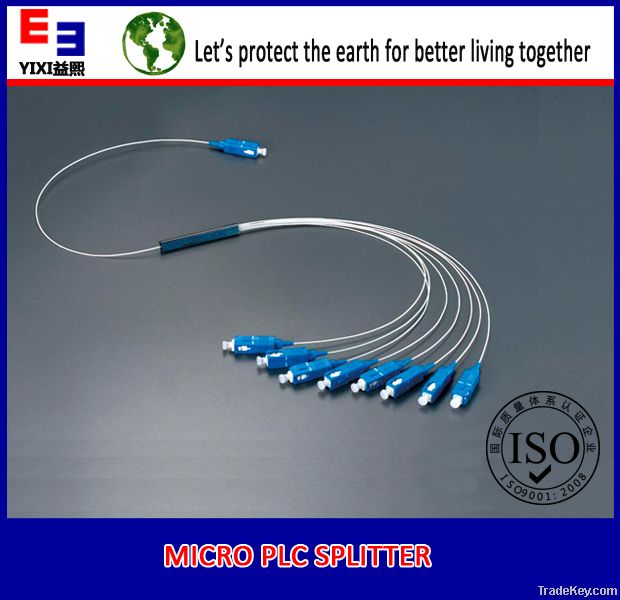

SPLITTER¼MICRO PLC

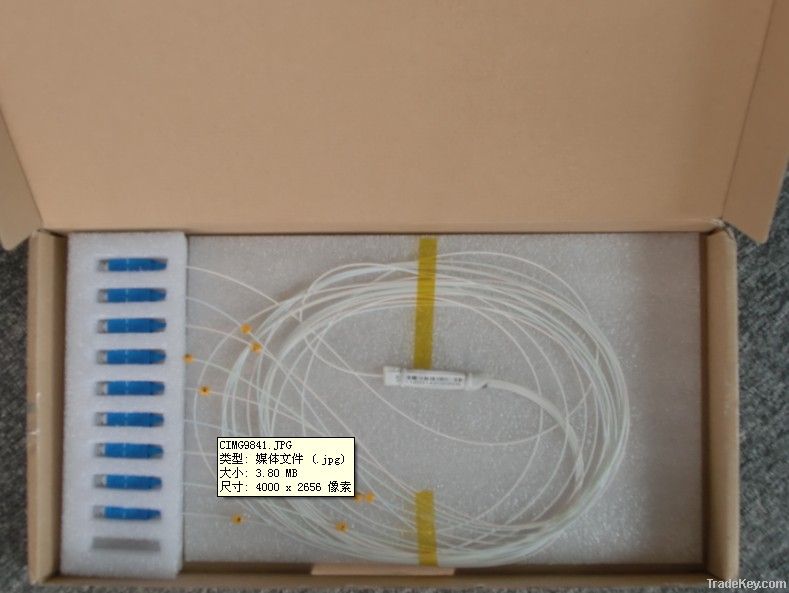

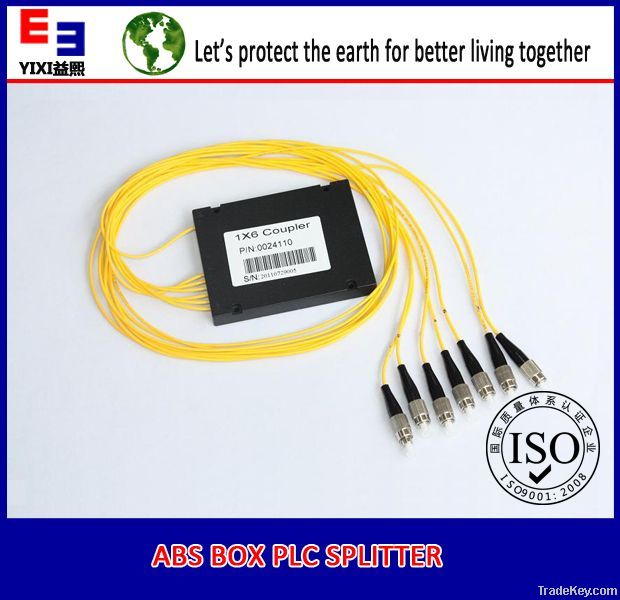

SPLITTER¼ABS BOX PLC SPLITTER¼BRANCH PLC SPLITTER¼tray plc
splitter, Insert cassette PLC　splitter¼FRAME TYPE PLC
SPLITTER€¦€¦
| 国家: |
China |
| 型号: |
pl1*16
|
| 离岸价格: |
35 ~ 36 / Piece （面議）
获取最新报价
|
| 位置: |
Shenzhen |
| 最小订单价格: |
35 per Piece |
| 最小订单: |
50 Piece |
| 包装细节: |
- |
| 交货时间: |
- |
| 供应能力: |
100000 Piece per Month |
| 付款方式: |
T/T |
| 產品組 : |
PLC splitter
|
