1. UL Listed�
2. K=5.6(*0)�
3. NPT1/2 or R1/2 Threaded�
4. *7, *8, *9, *3 deg. C available�
5. Brass, Chrome, White Finish�
�

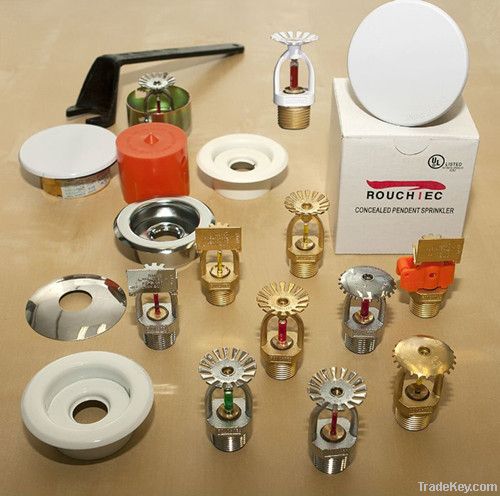

ROUCHTEC� UL listed Fire Sprinkler Head
�
China UL BRAND, WIDELY SOLD ALL OVER THE WORLD BECAUSE OF
RELIABLE QUALITY AND COMPETITIVE PRICES! !�
�
TECHNICAL SPECIFICATION
�
Model & Sprinkler I. D. No.�
SH**3/SH**4
SH**5/SH**6
SH**7/SH**8
SH**7/SH**8
�
Style
Upright
Pendent
Horizontal Sidewall
Concealed Pendent
�
Bulb Nominal Dia. & Response
5mm, Standard Response or 3mm, Quick Response
�
Thread Size [Optional]
NPT1/2 or R1/2
�
Nominal Orifice Size
1/2 Inch
�
Nominal K-Factor
5.6 (U. S. )/*0 (metric)
�
Max. Working Pressure
**5 psig/1.2 mpa (*2 bar)
�
Factory Hydrostatic Test
**0% @ **0psig (3.4 mpa)
�
Min. Operating Pressure
7 psig/0.**8 mpa (0.*8 bar)
�
Sprinkler Finish [Optional]
Natural Brass, Chrome Plated or White Color Coated
�
Escutcheon Finish
Chrome Plated or Color Coated In Any Color
�
Listings and Approvals
UL(United States)/ULC(Canada)
�
AVAILABLE TEMPERATURE RATING
�
Temp. Classification
Ordinary
Ordinary
Intermediate
Intermediate
�
Nominal Temp. Rating
**5� F/*7� C
**5� F/*8� C
**5� F/*9� C
**0� F/*3� C
�
Max. Ambient Temp. Allowed
**5� F/*6� C
**5� F/*7� C
**5� F/*8� C
**0� F/*2� C
�
Max. Recommended Ambient Temp.�
**0� F/*8� C
**0� F/*8� C
**0� F/*5� C
**0� F/*5� C
�
Glass Bulb Color
Orange
Red
Yellow
Green
�
SPRINKLER MATERIALS
�
Frame
Bronze Forging DZR
�
Deflector
Brass UNS*****0
�
Glass Bulb
Glass with Glycerin Solution, JOB� G5 or F3
�
Set Screw
Brass UNS*****0
�
Button
Brass UNS*****0
�
Spring
Stainless Steel
�
Seal
Teflon� Tape
�
Standard Escutcheon(Type E*1)
Cold Rolled Steel
�
UL LISTED ONLINE CERTIFICATE
�
RELIABLE PRODUCTION LINE
�
UL LISTED FIRE SPRINKLER HEAD
| 国家: |
China |
| 型号: |
SH003/SH004/SH005/SH006/SH007/SH008
|
| 离岸价格: |
1.7 ~ 2 / Piece （面議）
获取最新报价
|
| 位置: |
China |
| 最小订单价格: |
1.7 per Piece |
| 最小订单: |
200 Piece |
| 包装细节: |
200PCS/CARTON |
| 交货时间: |
35 DAYS |
| 供应能力: |
300000 Piece per Month |
| 付款方式: |
Other, Western Union, L/C, T/T |
| 產品組 : |
sprinkler
|
