Ultra filtration Mineral/Spring water treatment machine

Capacity range: 300--30,000 liter per hour(other capacity an can be free customized.)

1. system design basis
1). Raw water quality :the raw water can be arrived making mineral water demand.
2). water temperature :25 C
Product water quality: mineral water quality.

2.Technology instruction:
(1)It adopts current advanced ultrafiltration system , the output water no kernel, pure.
(1)this system adopts American ultrafiltration membrane ,the rate of removed� salt is 50-75%,recovery 50%-75%,and shapes the special character. The whole system can get rid of bacterial virus , heavy metallic irons. radioactive elements ,organic pollutant each is 99.99%,95%, 99%,95% ,the quality of water sweet ,clean. Also get rid of poison harmful material in source water , such as four chlorination carbons, benzenes, hydrocarbon, agrochemical, and lead, mercury ,chrome ...etc other radioactive element all Be tested a limit the following.

3. What is Ultrafiltration?
Ultrafiltration (UF) is a variety of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane.
�
Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic, bacterium, virus, colloid and non-ion suspended solid.
�

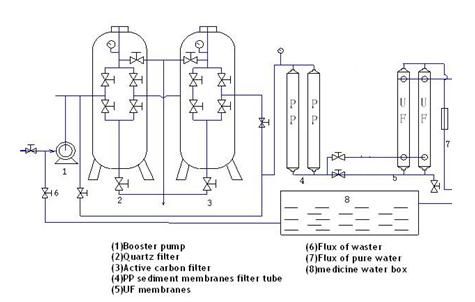

4.system introduction:


5. function

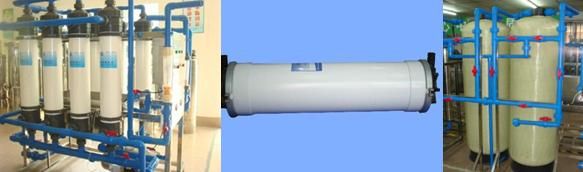

UF membranes auto wash and manual wash
UF membranes manual wash with medicine
Mineral water high water level auto stop, low water level auto start
Multi-phases pump protected without water Protected when no power, poor power, short circuit, larger electric current, creepage of electricity
�
6.Application:
1)Drinking water
2)Clarifying and eliminating bacterial for mineral water

7. Specifications
Capacity of pure water: 1000L/h
UF membranes: 95*1000 2 items
Beforehand filter: 1T/H
PP sediment membranes filter tube: 2 items
Quartz sand filter: SUS 304 shell
Active carbon filter: SUS 304 shell
Booster pump:1 item
Total power:0.75KW
Packing measurement: 1650*650*1100mm

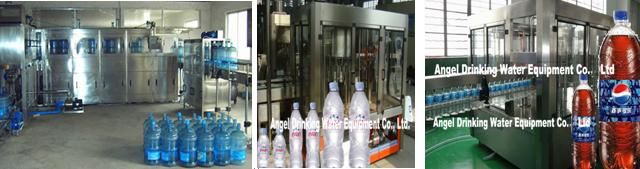

Angel Drinking Water Equipment Co., Ltd.,as advanced machinery manufacture in China, it is specializing in beverage and water equipment production line. It provides perfect project for whole set of beverage production equipments, from water purifying, beverage filling to bottle packing. The company devotes to technology research and development. The R&D team has 50 skilled technicians. Through the concerted efforts, we institute and innovate a number of leading technology and equipment series, including PET bottle blow molding machine, 3/5 gallons bottled water filling production line, completed water bottling line composite beverage bottling production line, 3�10L water bottling equipment, sachet liquid filling machine, self-standing pouch liquid filling machine, cup liquid filling machine and other related device.

Products catalog:

Water treatment equipment(pure water/mineral water)
