Valve Seat and Guide Machine

详情

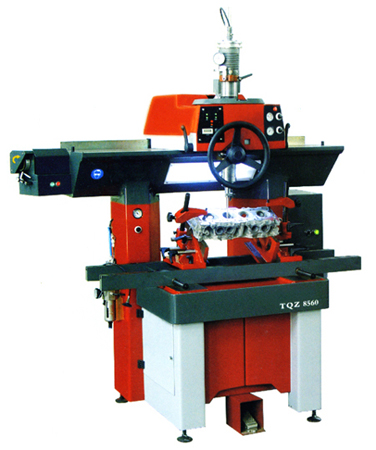

Model TQZ***0 valve seat boring machine is suitable for repairing the valve seat of automobiles, motorcycle, tractor and other engines. It also can be used to drilling and boring etc. The machine features are airfloating, vacuum clamping, high positing precision, easy operation. The machine is set with grinder for cutter and vacuum check device for workpiece. ﹣Moden technic, new design ﹣Air floating, air vacuum clamping, auto-centering, high, positing precision ﹣Straight and “V” valve seats ﹣*0°, *5°, *0°and multy-angle cutter ﹣Central operation, quick clamping ﹣Spindle frequency coverter, unstep speeds ﹣High quality surface, different clour paint Spindle travel **0 mm Spindle speeds *0 – **0/***0rpm Boring range Φ*4 –Φ*0 mm Spindle swing angle 5° Spindle cross travel **0 mm Spindle longitudinal travel *5 mm Ball seat move 5 mm Angle of clamping device swing **0°; **5° Spindle motor power 0.4KW Air supply 0.6 – 0.7Mpa; **0L/min Max. size of cylinder cap for repairing ***0x**0x**0mm Machine weight ***0/***0kg Overall dimension ***0x***0x***0mm
