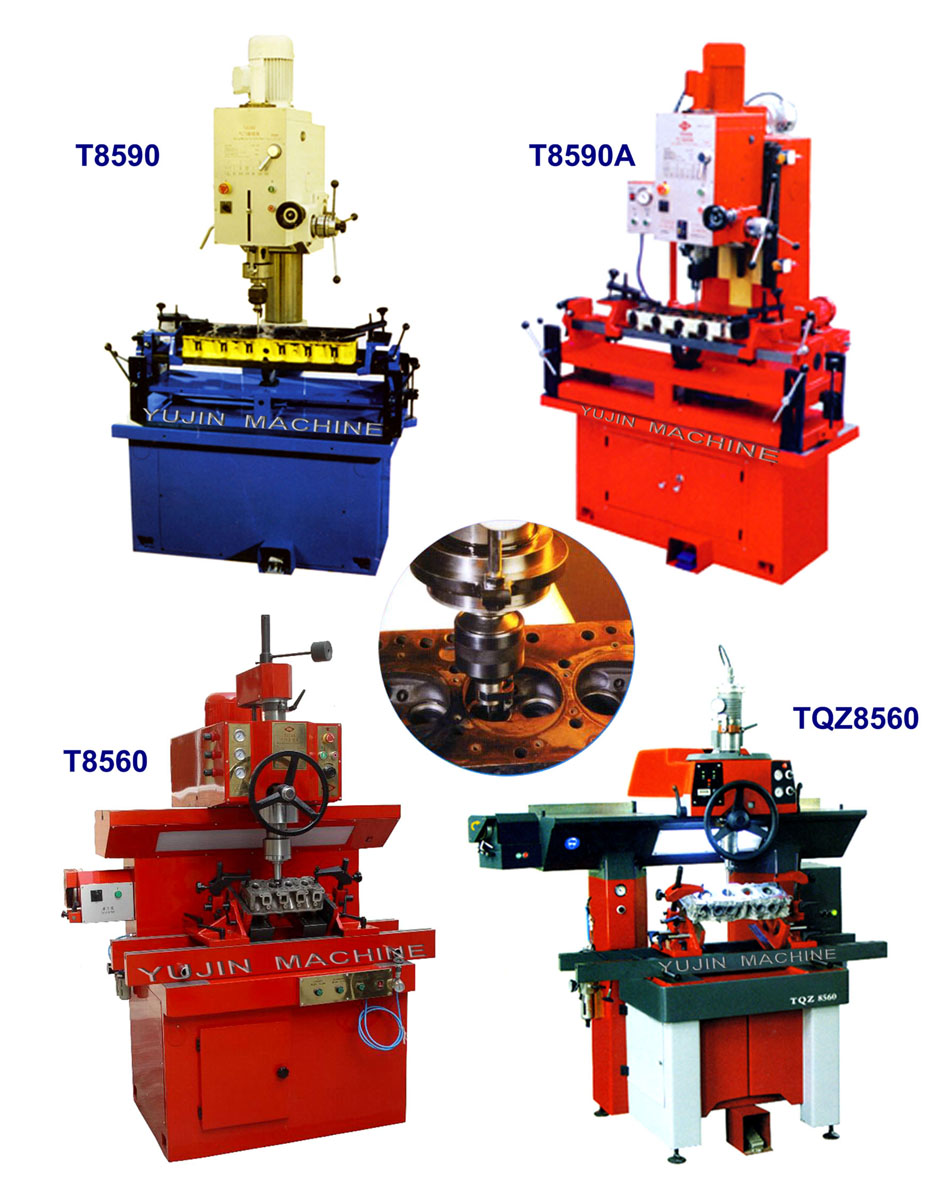

Valve Seats Boring Machine

详情

It mainly used for boring and repairing the gas valve seats hole. Structure Characters: 1. It adopts the air-floating work table, through which you can position easy the work piece and spindle. 2. The feeding system of the tools has two ways: Rough and Precision cutting, which can improve the work efficiency and processing rate. 3. It adopts vertical rectangle guide-way, which can increae the rigidity of the machine, and guarantee the processing precision for all kinds of the gas valve seats hole on different diameter. 4. It equips with the vacuum examining device, for quickly checking the cutting results. MODEL: T***0 Boring diameter *0mm**0mm Spindle speed range *5, *5, **0, **0, **0, **0 rpm Spindle travel **0mm Distance from spindle axis to guideway surface **0mm Max. Distance from end of spindle to working table **0mm Cylinder head fixture movement on the table (Cross) **0mm Cylinder head fixture movement on the table (longitudinally) **0mm Main motor power 1.1/0.*5kw ***0/**0rpm Overall dimensions ***0x**0x***0mm Packing size ***0x***0x***0mm N. W/G. W ***0/***0kg MODEL: T***0A Boring diameter *0mm**0mm Spindle speed range *5, *5, **0, **0, **0, **0 rpm Spindle travel **0mm Distance from spindle axis to guideway surface **0mm Max. Distance from end of spindle to working table **0mm Moving speed of machine head **2mm/min Cylinder head fixture movement on the table (Cross) **0mm Cylinder head fixture movement on the table (longitudinally) **0mm Main motor power 1.1/0.*5kw ***0/**0rpm Overall dimensions ***0x**0x***0mm Packing size ***0x***0x***0mm N. W/G. W ***0/***0kg MODEL: T***0 Boring diameter *0mm**0mm Main cylinder moving range: ***0***0***0mm Main cylinder rotating speed: **5mm Angle of broing head: **6 degree Translating of boring head: Tansversal: More or less *5; Loagitudinal **0mm. Rotating range: More or less *0degree Packing size ***0x***0x***0mm N. W ***0kg
