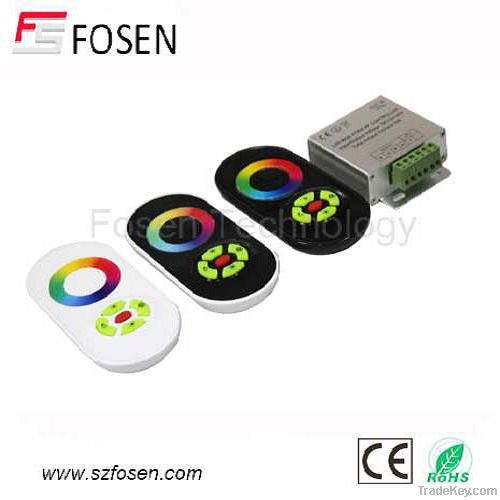

Wireless Touching LED RGB Controller

详情

Operating Instructions:

1.Touching ON/OFF ,you can switch on/off the led RGB strip.

2.Slide the color can adjust the same color.

3.Increasing color can adjust the current color to the most vivid,dicreasing color is contrary,until pure white.

4.You can adjust the brightness by dimming function,to brighten and dim the light.

5.Gradual change mode:Touch on buttom again under monochrome mode condition, RGB strip will be changed into gradual change mode .Increasing color will speed up the color change,decreasing color will slowdown.

6.Hopping mode:Under gradual change mode condition,touch on ,the RGB strip will be changed into hoppingmode.Increasing color will speed up the hopping,decreasing color will slowdown.

7.Under Gradual change or hopping mode,touching on switch will change one to the other.Close the RGB strip and restart it if you want to enter monochrome mode.

instruction

Summarization:

This product is a novel LED controller developed by our company which can realize multistage touch dimmer.

Adopting advanced touch design, through the touch remote way, realize flexible control. Touch remote has good

performance, beautiful, fashion, easy to change the color as you wishmatch with RGB strip to produce all kinds of

colored light. This product suit for every occasions, such as: LED flexible strip, LED wall washer, LED module,

glass curtain wall light and so on.

Basic parameters:

working temperature: *****0°C

Frequency: **3MHz

Input voltage: *2 and *4V DC

Output: 3 channels

Connection mode: common anode

Static power consumption: <1W

Output current: 3A (each channel)

Output power: *2V:<**8W, *4V:<**6W

Advantage:

1.Match with the RGB flexible strip,easily control the colors change

2.Wireless touching remote and control distance is more than *0meters

3.Two kinds of modes: Gradual change mode and hopping change mode.

4.The rate of color change and the brightness can be easily control

5. 3 kind of wireless remoter, you can choose as you like.

6: 2 years warranty

Package:

Net weight:**4.5g

Gross weight:**9g

General packing is white bag, special packing is available

The package includes:

1.RGB controller

2.Wireless touching Remote

3.instruction

Attentions:

1) Input voltage of remote control must be the same as RGB strips

2) Match the color of output wiring when connecting

3) When the color doesn’t match, for example, it displays blue when touch green,or displays green when touching blue ,please check

whether the wiring is correct ,in this case ,exchange blue and green
