1mm to 6.0mm glossy composite flex pvc roof sheet

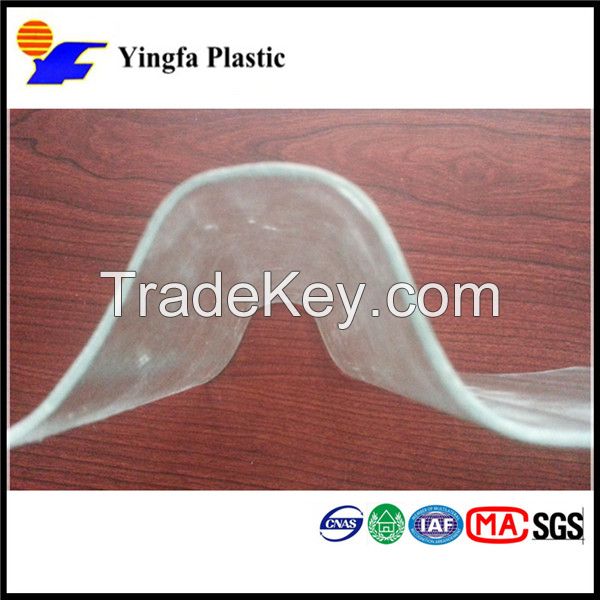

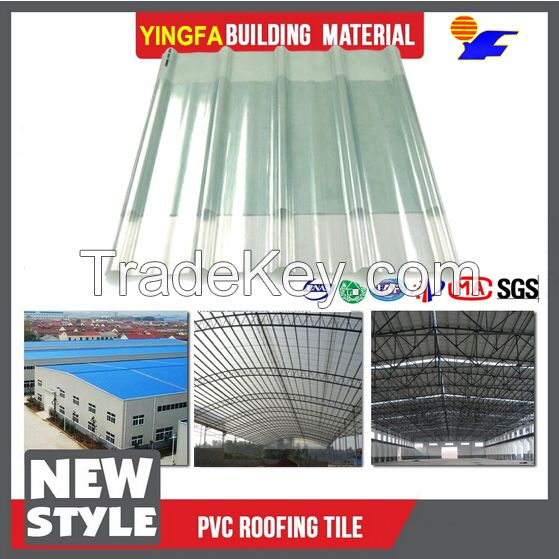

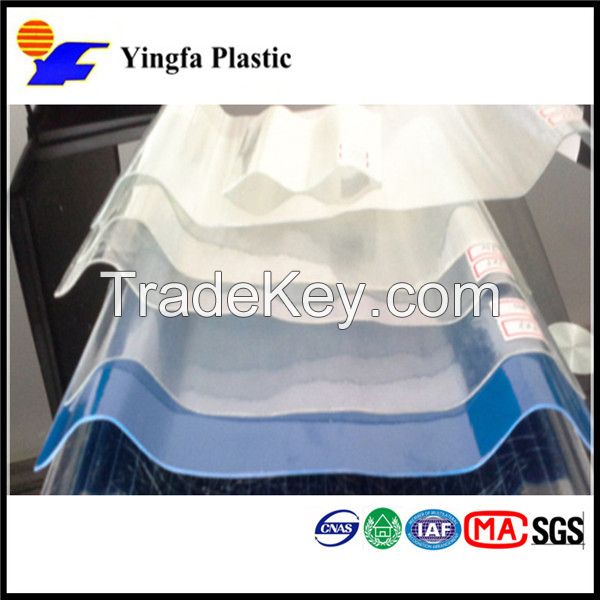

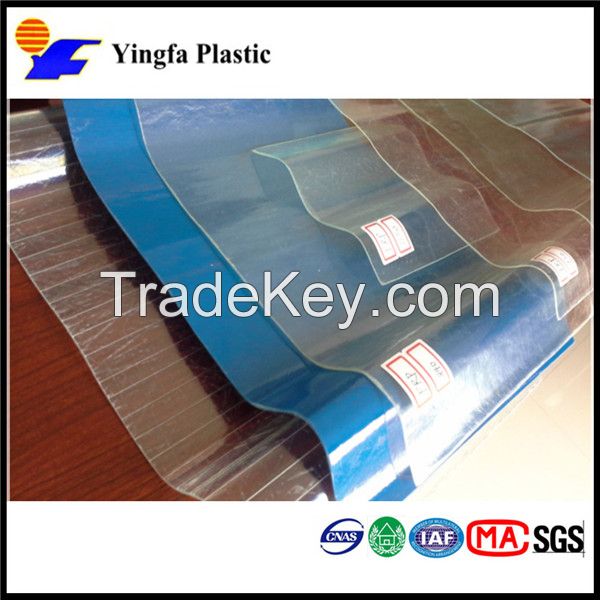

YINGFA FRP Corrugated Lighting Sheet, also known as fiberglass reinforced polyester light panel, covered with the high-performance protective film, is made of the unsaturated polyester resin and glass fiber. Because of its stable quality, durable features, deeply welcomed by customers

Thickness：0.8mm、1.0mm、1.2mm、1.5mm、2.0mm、2.5mm；
Color：clear, sky blue,lake blue & opal；
Length：cut as per customers' requirements （on the condition that it is suitable for transportation）

Density	1.5 g/cm3	Tensile strength	100Mpa
Fiber content	>25%	Bending strength	160Mpa
Curing degree	>82%	Impact ductility	135 KJ/㎡
Gel Coat Thickness	20-150μm	Thermal conductivity	0.158 W/m.k
Weathering film thickness	20-30μm	Thermal expansivity	2.2X10-5mm/mm/℃
Light transmissivity	60-85%	Water absorption	0.32%/24hr
Suitable temperature	-40℃-120℃	UV Rate	99.9%

Features of the product:
Light transmission
The light transmission of YINGFA FRP Corrugated Lighting Sheet is  between 60-85%. Light through FRP lighting sheet scatters and is mild. It will not form a light band so as to make the indoor brighter.
Weather resistance
The 23μm anti-aging film from Dupont covering on the surface of FRP sheet improves its property of weather resistance. The anti- ultraviolet adsorbing agent mixing in the raw materials absorbs 99.9% of ultraviolet ray of the visible light transmitted through the FRP sheets.This UV protection will help to prevent the dissolution and discoloration of the materials. The unique technology used in YINGFA FRP Corrugated Lighting Sheet makes the life span of the sheet up to over 15 years, probably 20 years ( a ten-year warranty is supplied).
Impact resistance
The strengthening fiber-glass materials crisscross the structure of the products,which  helps to improve the  impact resistance of FRP sheet. When impacted by spalls or hails, they are hardly broken.
Corrosion resistance
The products resist various acids, alkalies and peroxides, especially suitable for  application in the coastal areas and corrosive places.
Temperature performance
YINGFA FRP Corrugated Lighting Sheet is a kind of hot solid high polymer materials. It is designed for normal use in temperatures from - 40℃ to120℃.
Temperature insulation
The coefficient of heat-conduction of  YINGFA FRP Corrugated Lighting Sheet is 0.18kcat / mhr℃ , only 1/4 of the glass. That is why it has a good property of temperature insulation.
Fire-retardant
Fire-retardant  the fire-retardant of YINGFA FRP Corrugated Lighting Sheet is divided into ordinary gradeⅠ and gradeⅡ. The oxygen index of the gradeⅠof fire retardant is ≥32, the grade retardant is ≥26. It meets the standards of the fire brigade department.
Heat stability
YINGFA FRP Corrugated Lighting Sheet is a kind strengthening plastic of hot solid fiber-glass . Its coefficient of heat expansion is 2.2 x 10-5mm/mm/℃, only 2 times of metal materials. For this reason, when it matches with a metal sheet, the displacement is relatively small, not easy to leak.
Quality assurance
YINGFA FRP Corrugated Lighting Sheet made of high-quality raw materials to produce and provide quality assurance decade.
The other good performance
Small bubbles, no blisters,equithickness.

Application ：

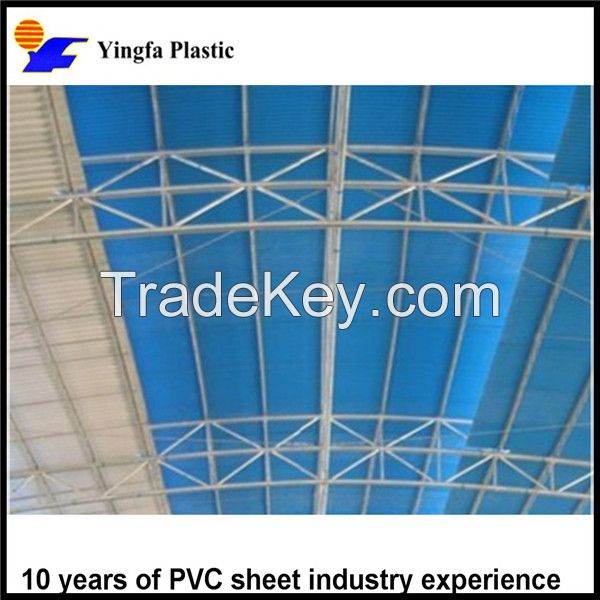

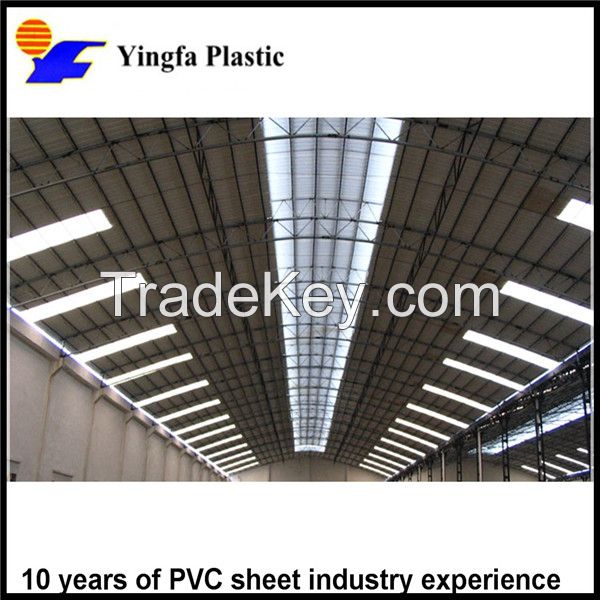

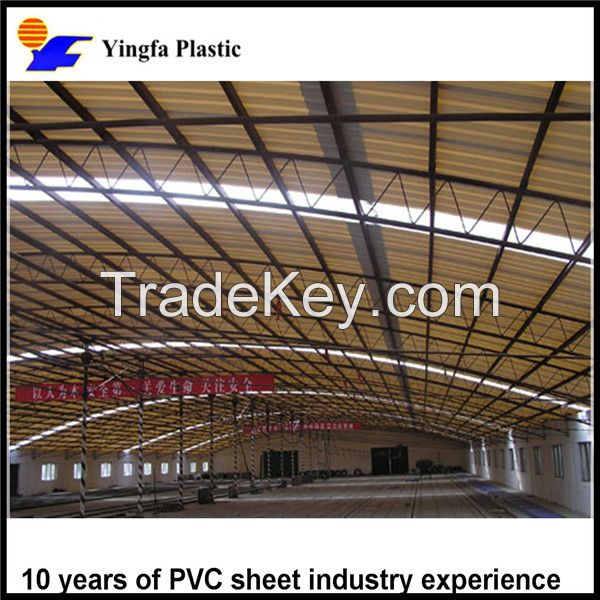

They are applied to steel structure workshops, warehouses, weather sheds, car parks, weather corridors, lighting sheds, sun sheds,
greenhouses, etc. They are the ideal materials for the choices of enterprises and institutions.
