离岸价格
获取最新报价|
10 Piece Minimum Order
国家:
China
型号:
XFZQPCB02A110920002
离岸价格:
位置:
Beijing, China (Mainland)
最小订单价格:
-
最小订单:
10 Piece
包装细节:
Inner package: Vaccum packing , plastic bag
交货时间:
7-8 workdays
供应能力:
2000 Square Meter per Month
付款方式:
T/T, Western Union, Money Gram, PayPal
產品組 :
-
联系人 Helen
Xisanqi, Beijing, Beijing

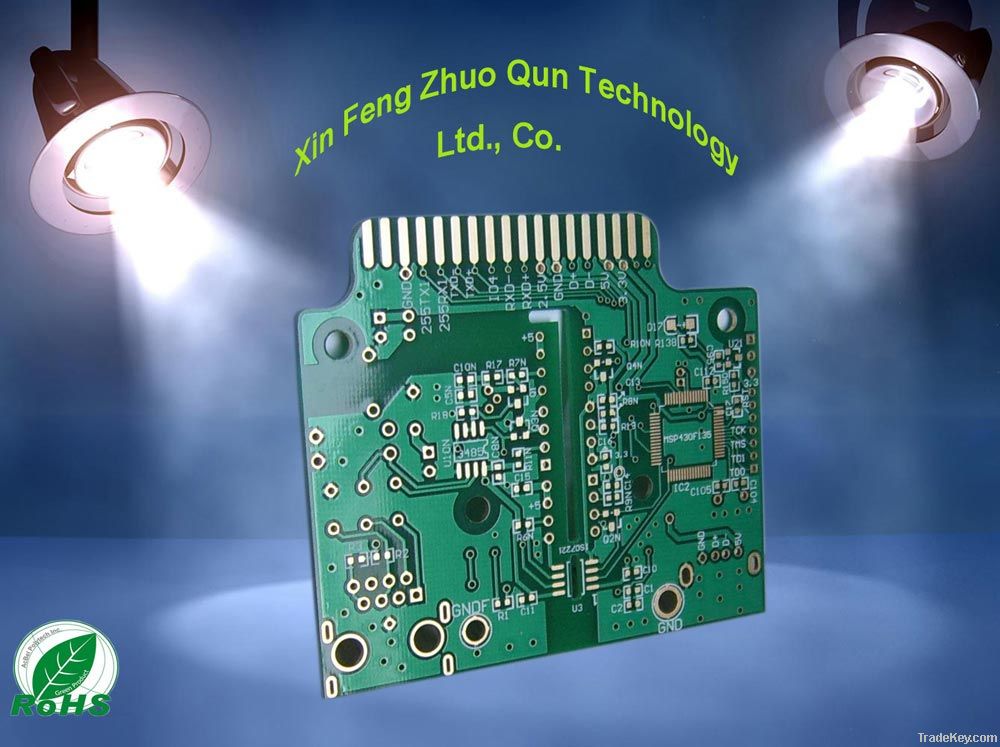

*-layer PCB for touch screen
1)Base material:FR*4
2)Surface Finish : immersion gold
3)Certificate:UL,ROHS,REACH,ISO***1,T/S****9
4)board thickness:1.6mm
5)Min hole size:0.3 mm
6)Min line width: 0.1mm
7)Min line spacing: 0.1mm
|
ITEMS |
SPECIFICATION |
|
LAYER |
***6 |
|
BOARD MATERIAL |
FR*4,CEM*1,CEM*3 |
|
BOARD THINCKNESS |
0.2mm*6.0mm |
|
CAMBER |
D≤0.*5% (DOUBLE SIDE) D≤0.7%(MULTILAYER) |
|
IMPENDENCE TOLERANCE |
±7% |
|
PIH TOLERANCE |
D>5.0 ±0.**6mm
0.3
D≤0.3
±0.*8mm
|
|
MIN. FINISHED HOLE SIZE |
0.2mm |
|
HOLE COPPER THICKNESS |
≥*0um |
|
MIN. TRACK WIDTH |
0.**5mm |
|
MIN. TRACK SPACING |
0.**5mm |
|
PROFILE SIZE TOLERANCE |
±0.1mm |
|
PROFILE |
MILLING MOULDING V-CUT CHANFER |
|
COATING |
HAL, LEAD FREE HAL, ENIG/IMMERSION GOLD, OSP |
|
SOLDER MASK COLOR |
GREEN, BLUE, BLACK, WHITE,RED |
|
TECHNNOLOGY |
BLOCK,BGA,PEELABLE,CARBON INK |
|
ASSEMBLY |
LEAD FREE,NOT LEAD FREE |
|
LEGEND COLOR |
WHITE, BLACK, YELLOW,GREEN |
|
CERTIFICATE |
UL,ROHS,REACH,ISO***1,T/S****9 |
| 国家: | China |
| 型号: | XFZQPCB02A110920002 |
| 离岸价格: | 获取最新报价 |
| 位置: | Beijing, China (Mainland) |
| 最小订单价格: | - |
| 最小订单: | 10 Piece |
| 包装细节: | Inner package: Vaccum packing , plastic bag |
| 交货时间: | 7-8 workdays |
| 供应能力: | 2000 Square Meter per Month |
| 付款方式: | T/T, Western Union, Money Gram, PayPal |
| 產品組 : | - |
