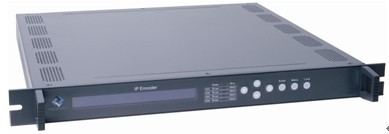

4 in 1 MPEG-2 Encoder with IP Output

详情

Function: 4 Channels MPEG*2 Encoder with Analog Video and Audio Input, and One Multiplexed TS Output from ASI and IP TLS***4I 4 in 1 MPEG*2 Encoder (with IP Output) is a user-friendly, powerful MPEG*2 encoder and multiplexer. It adds an ASI interface for multiplexing and IP outputting, on the basis of general 4 in 1 encoder. It supports analog composite video, mono/analog stereo, etc. The output interface for compressed data is ASI. Compression mode is MPEG*2 MP@ML. This encoder can encode maximum 4 channels of audio and video signal in real time, multiplexing with 1 TS to generate 1 MPTS multi-program transport stream. It completely complies with MPEG*2 standard, and has high compatibility. Its dimension is 1U standard case. Through the LCD display on the front panel, it can be set and operated completely offline. Features: 1. Add 1 ASI interface to multiplex the data stream 2. Support multiple streaming media transport protocols, including UDP 3. Encode and multiplex 4 channels of audio/video signal to generate 1 MPTS stream 4. Local and remote network management 5. Support MPEG*2 MP@ML (4:2:0) coding 6. LCD display, flexible in operation 7. Hi-Fi audio processing technology, R/L channel, stereo 8. High reliability design, stable in running 9. Output continuous and adjustable code rate, flexible in use *0. Data stream multiplexing function *1. Extensive and output interfaces, realizing free connection *2. PID display and setting *3. SDT, program name and provider settings Technical Specification 1) Input Interface Video Signal(CVBS): Level 1.0Vp-P Audio Signal: Level 2Vp-P 2) Output Interface ASI: DVB Standard Net Ether: UDP 3) Output Code Rate: 1.0~*5Mbps, Continuous and Adjustable *****
