This product is also available on Amazon for retail.

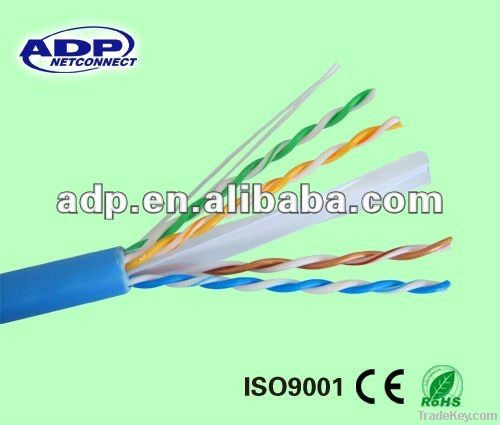

cat6

China

-

14 ~ 50 / Roll 获取最新报价

-

14 per Roll

200 Roll

Colour Box or Wooden Reels

7-15days after we receive the deposit

-

T/T, D/P, Western Union

lan cable

现在联系

详情

Features

  1. Cross stand inside the cable realizes the more stable transmission
  2. Solid copper conductor allows high performance
  3. Fast and reliable connection
  4. Twisted pairs with bright color for easy recognition
  5. Ripcord and footmark for convenient use
  6. Smooth jacket for easy pulling in tight space
  7. Colors: Light gray, dark gray, blue, white or as per your requirement

Specifications:

  1. Specification: 4P+F
  2. Rated Temperature: -20°C to 75°C
  3. Unshielded twisted pairs:
  4. Conductor: 23AWG or 24AWG Stranding or Solid Bare copper
  5. Insulation: HD-PE
  6. Filler: PE Cross or FM-PE Thin slice
  7. Unrip rope: optional
  8. Jacket: PVC or LSNH
  9. Impedance:100±15%Ω at 1~250MHz
  10. Reference standard: YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA-568B,UL 444
  11. Print Legend: CM or



Applications:

1.Computer Network Cabling Project.

2.Broadband Network Communication.

3.Digital ISDN Network and ATM 155Mbps Network

4.Ethernet Network

5.Audio and Data Transmission



Cable Assembly Specification

Conductor

Insulation

Core Number

Filler

Shielded

Braid

Jacket

AWG

Specification

(mm)

Material

Thickness

(NOM.mm)

Material

Thickness

(NOM.mm)

OD (NOM.mm)

26

1/0.404

HD-PE

0.20

4P

PE Cross

AL/Mylar

TC or AL-MG

PVC or LSNH

0.60

6.5

7/0.16

HD-PE

0.20

4P

PE Cross

AL/Mylar

TC or AL-MG

PVC or LSNH

0.60

6.5

24

1/0.58

HD-PE

0.20

4P

PE Cross

AL/Mylar

TC or AL-MG

PVC or LSNH

0.60

7.8

1/0.58

HD-PE

0.20

4P

FM-PE Thin slice

AL/Mylar

TC or AL-MG

PVC or LSNH

0.60

7.2

7/0.203

HD-PE

0.20

4P

PE Cross

AL/Mylar

TC or AL-MG

PVC or LSNH

0.60

7.5

7/0.203

HD-PE

0.20

4P

FM-PE Thin slice

AL/Mylar

TC or AL-MG

PVC or LSNH

0.60

7.0



cat6
