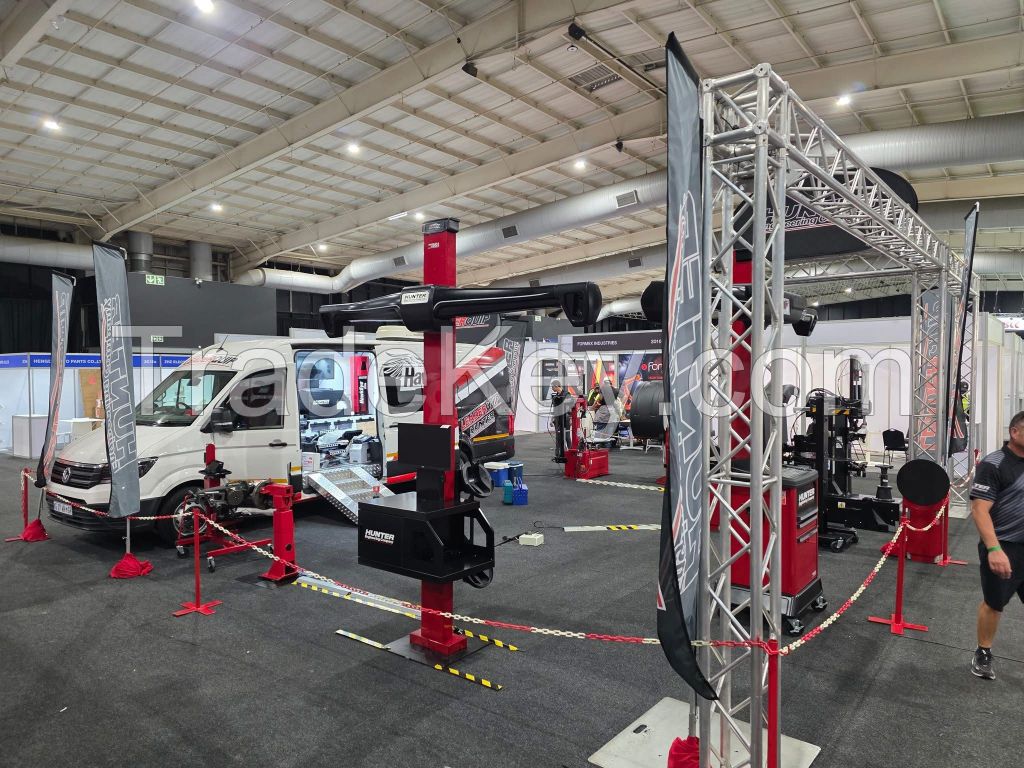

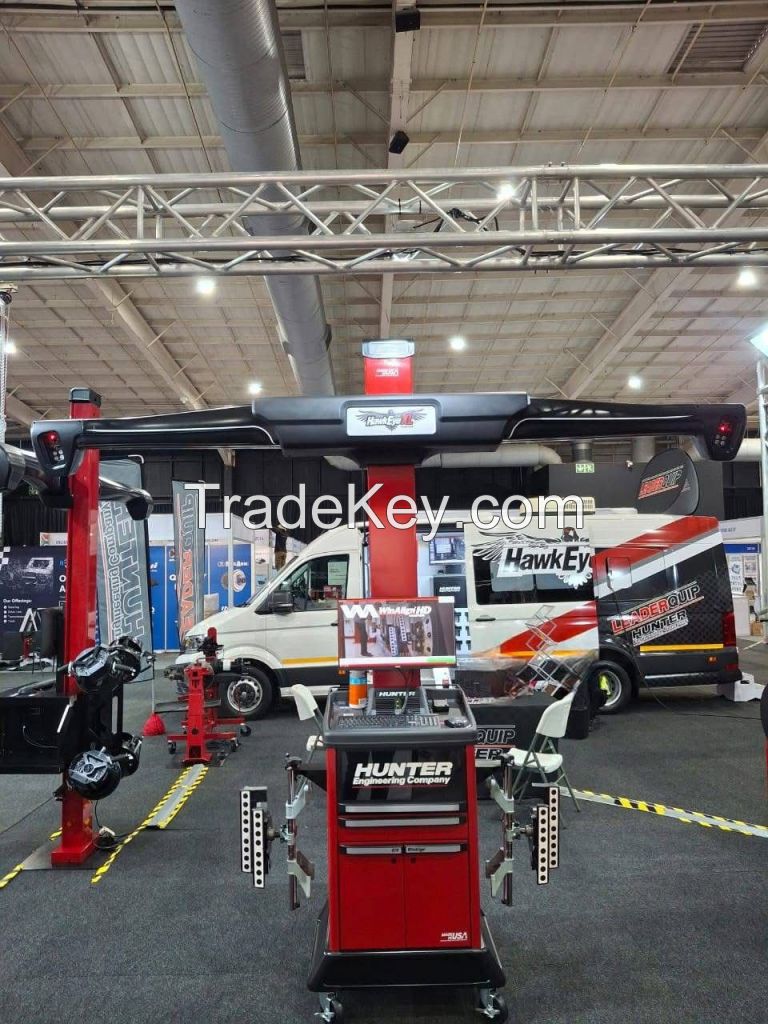

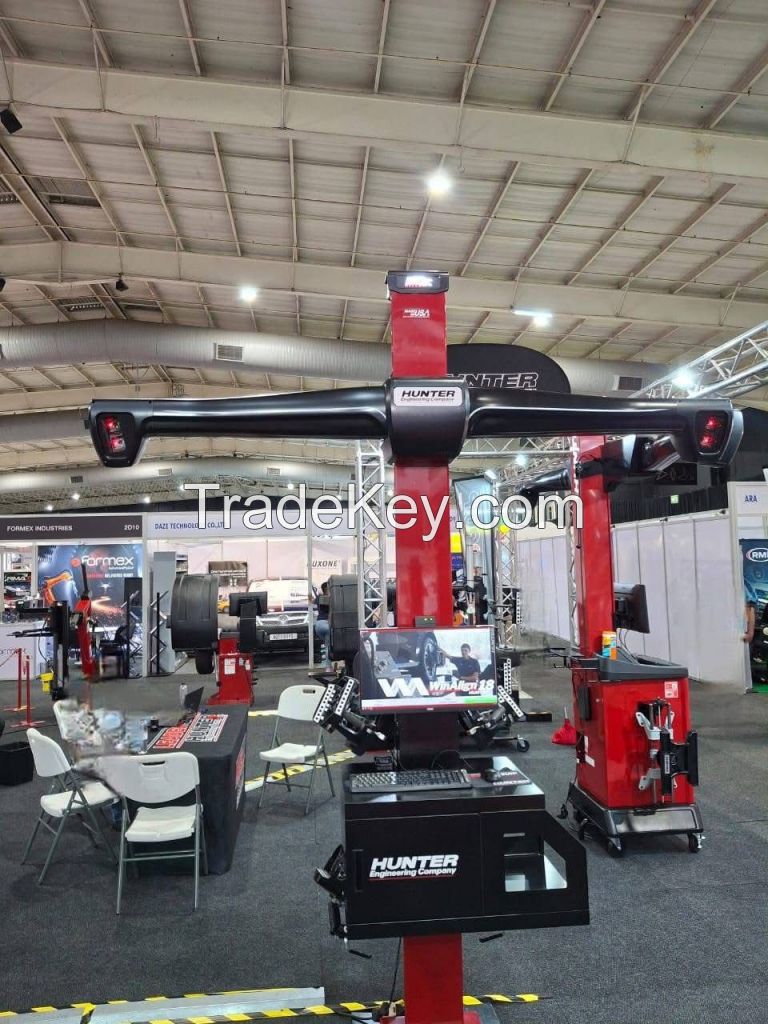

Complete 3D Wheel Alignment Machine

详情

Technical Specifications Alignment System

• Measurement Technology: 3D / Imaging / CCD cameras

• Camera Count: 24 high-resolution alignment cameras

• Target Type: Smart targets / LED targets

• Alignment Method: 3D imaging with laser assistance

• Alignment Software: Hunter proprietary alignment software

• Tire Diameter Range: 10″30″ (approx.)

• Track Width Range: Up to ~2,800 mm

• Wheelbase Range: Up to ~4,500 mm

• Accuracy: ±0.1° or better (camber, caster, toe)

• Speed: Rapid acquisition of alignment data (< 30 seconds)

• Repeatability: High repeat accuracy with auto-calibration

• Display: PC or Industrial Monitor (optional touch screen)

• Guidance: On-screen alignment graphics

• Reports: Print and digital alignment reports

• Software Updates: USB / network upgradeable

• Power Supply: AC 220V / 110V (region dependent)

• Frequency: 50/60 Hz

• Computer: Integrated PC or external diagnostic workstation

• Printer: Integrated or external report printer

• Fully automated alignment measurement

• Live graphical guidance & adjustment prompts

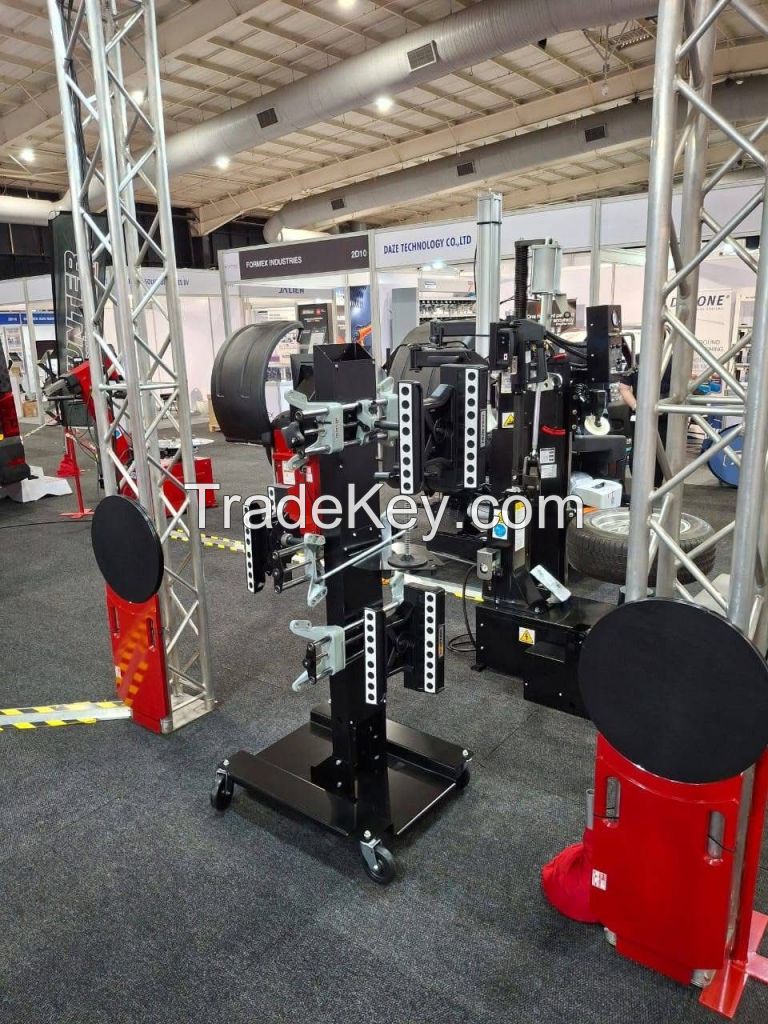

• Adjustable toe plates and targets

• Single-operator mode (optional)

• Multi-vehicle database for quick setup

• Exportable alignment reports (PDF/print)

• Automatic toe-in/out & camber reads
