Product Introduction

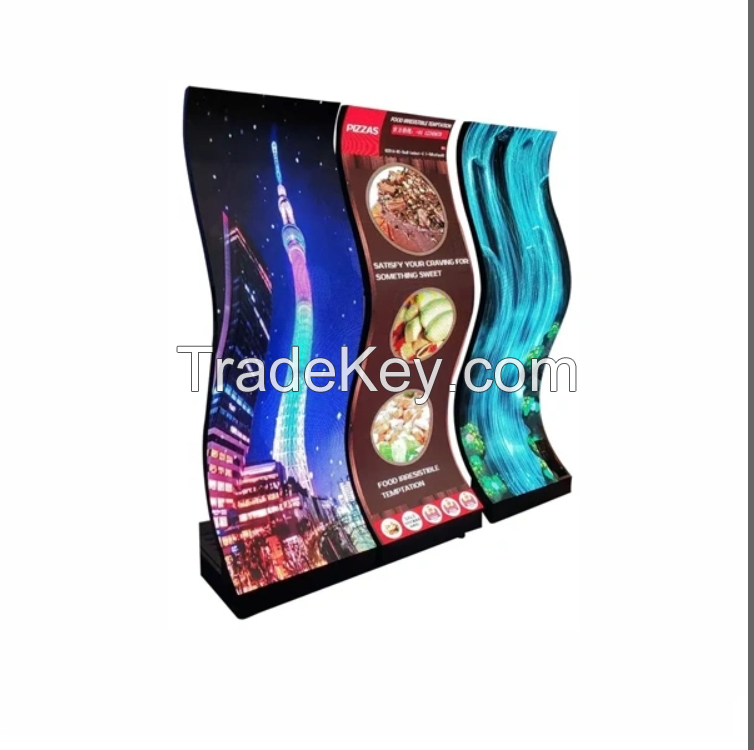

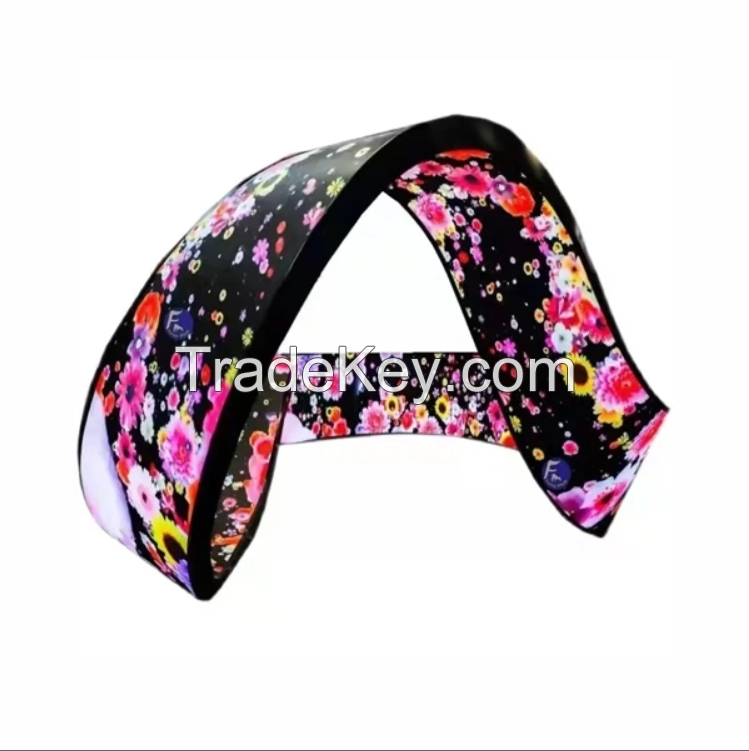

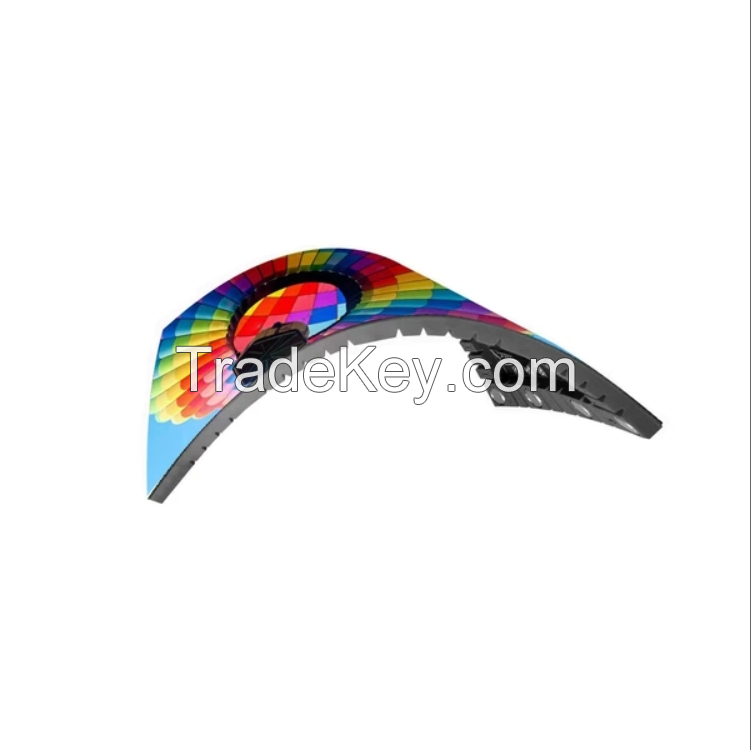

Flexible led screen is composed by flexible led modules. Flexible
led modules offers more advantages in creative solutions than

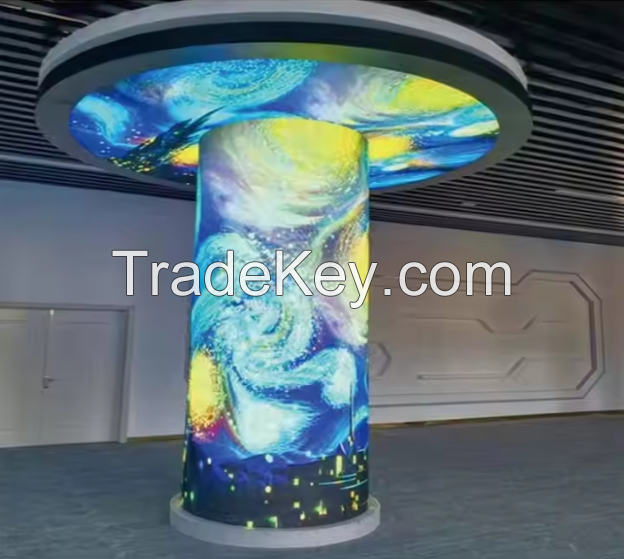

traditional led modules. It can achieve creative shapes, such as
cylindrical, concave, convex, waveform, Mobius strip and so on.
Various pixel pitch is optional, P1.5, P1.8, P2.5, P4, etc.to
meet different requirements.
To adopt surface waterproof requirement, glue on board treatment
is applied to flexible modules

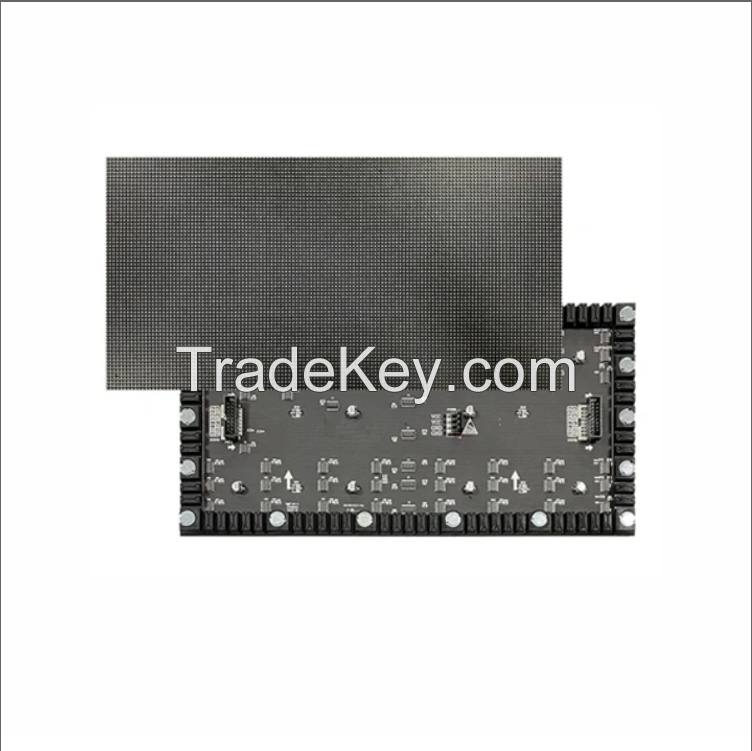

Every flexible module has several
magnetic columns with quick butt-joint signal and electricity
wires, firm and reliable, easily to be assembled or dismantled,
simply the best to moldify various columns, waves, belts or curve
screens,etc.
Regardless of flexible module model, every piece has the
thickness ≤4 mm & weight ≤ 260g, splicing error ± 0.1 mm, it
can be arbitrarily shaped according to project demanding,
seamless spliced and suitable for installation methods such as
hoisting, seating, embedding or wall-mounting...
| 320x160 | |||||||
| Model | P1.25 | P1.56 | P1.86 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch(mm) | 1.25 | 1.568 | 1.86 | 2 | 2.5 | 3.076 | 4 |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515/2121 | SMD1515/2121 | SMD2121 |
| Pixel Density (dot/m²) | 640,000 | 406,406 | 288,906 | 250,000 | 160,000 | 105,625 | 62,500 |
| Module Size (mm) | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Module Resolution (dots) | 256x128 | 204x102 | 172x86 | 160x80 | 128x64 | 104x52 | 80x40 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Brightness (nits) | 650-800 | 650-800 | 650-800 | 650-800 | 650-800 | 650-800 | 650-800 |
| Max. Power (W/m²) | 165 | 165 | 150 | 150 | 150 | 150 | 150 |
| Ave. Power (W/m²) | 550 | 550 | 550 | 550 | 550 | 550 | 550 |
| 240x120 | |||||||
| Model | P1.25 | P1.57 | P1.87 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch(mm) | 1.25 | 1.579 | 1.875 | 2 | 2.5 | 3.076 | 4 |
| LED Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515/2121 | SMD1515/2121 | SMD2121 |
| Pixel Density (dot/m²) | 640,000 | 401,135 | 284,444 | 250,000 | 160,000 | 111,111 | 62,500 |
| Module Size (mm) | 240x120 | 240x120 | 240x120 | 240x120 | 240x120 | 240x120 | 240x120 |
| Module Resolution (dots) | 192x96 | 152x76 | 128x64 | 120x60 | 96x48 | 80x40 | 60x30 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
