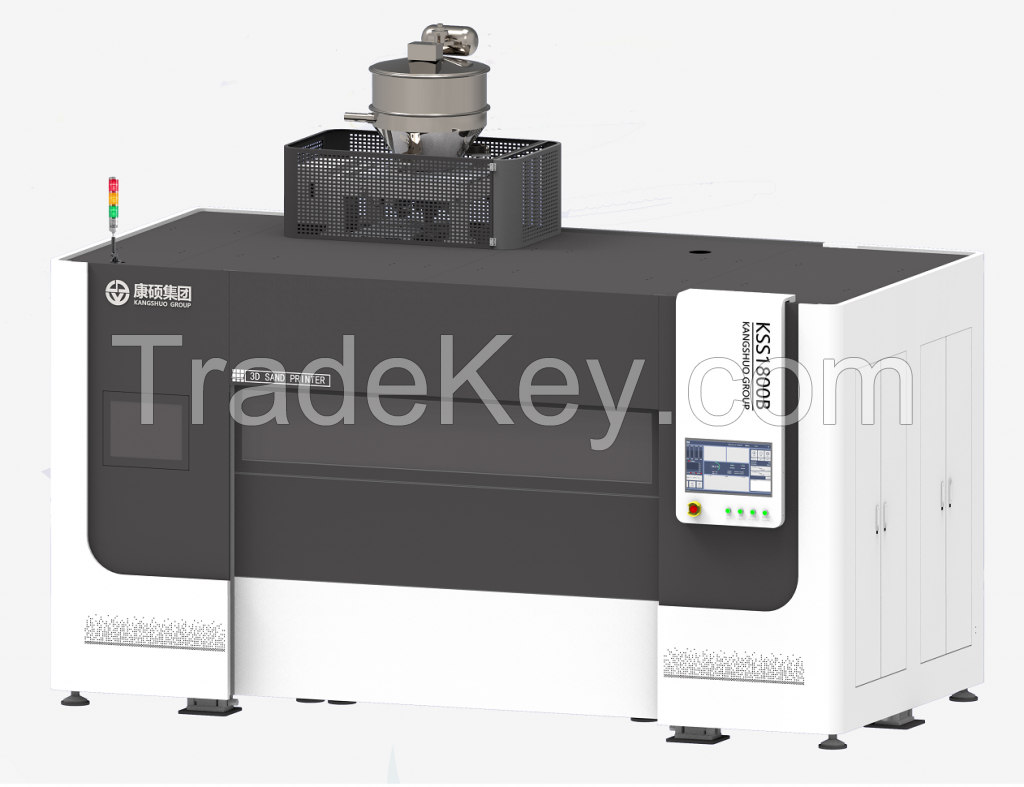

Industrial Binder Jetting 3DP printer professional manufacturer 3DP inkjet sand mold additive manufacturing 3DTEK KSS1800A

详情

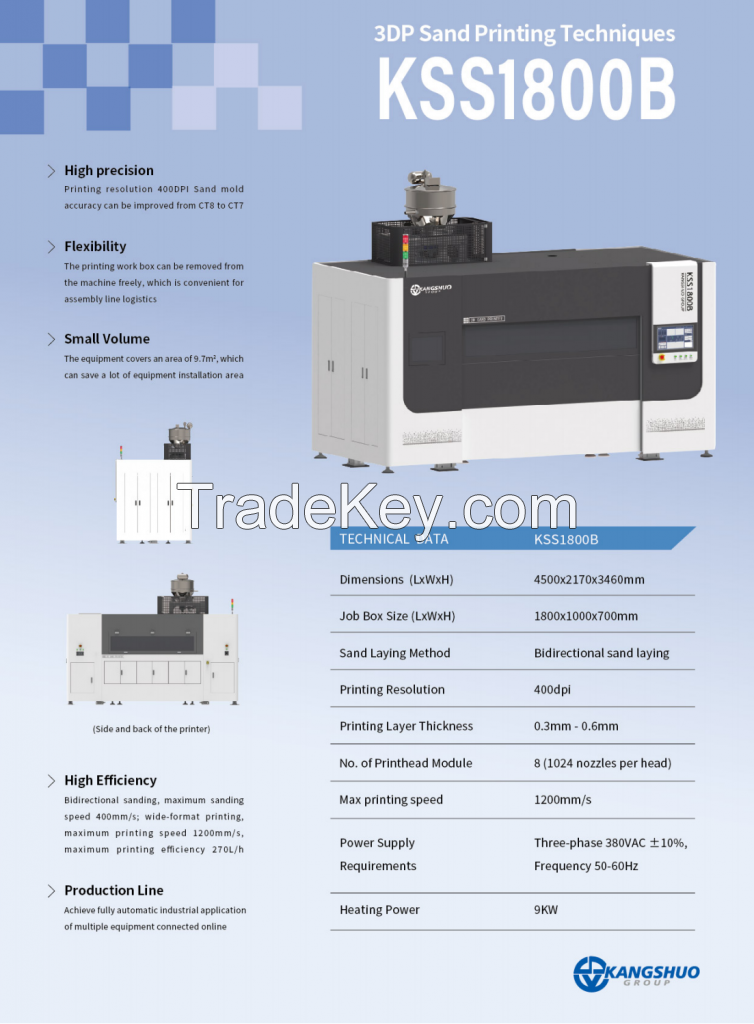

3DP Sand Printing Techniques KSS1800B

- High precision
  - Printing resolution 400DPI Sand mold accuracy can be improved from CT8 to CT7

- Flexibility
  - The printing work box can be removed from the machine freely, which is convenient for assembly line logistics

- Small Volume
  - The equipment covers an area of 9.7m², which can save a lot of equipment installation area


- High Efficiency
  - Bidirectional sanding, maximum sanding speed 400mm/s; wide-format printing, maximum printing speed 1200mm/s, maximum printing efficiency 270L/h

- Production Line
  - Achieve fully automatic industrial application of multiple equipment connected online
TECHNICAL DATA
KSS1800B

Dimensions (LxWxH)    4500x2170x3460mm
Job Box Size (LxWxH)   1800x1000x700mm
Sand Laying Method    Bidirectional sand laying
Printing Resolution     400dpi
Printing Layer Thickness   0.3mm - 0.6mm
No. of Printhead Module8 (1024 nozzles per head)
Max printing speed1200mm/s
Power Supply Requirements Three-phase 380VAC±10%,  Frequency 50-60Hz
Heating Power  9KW

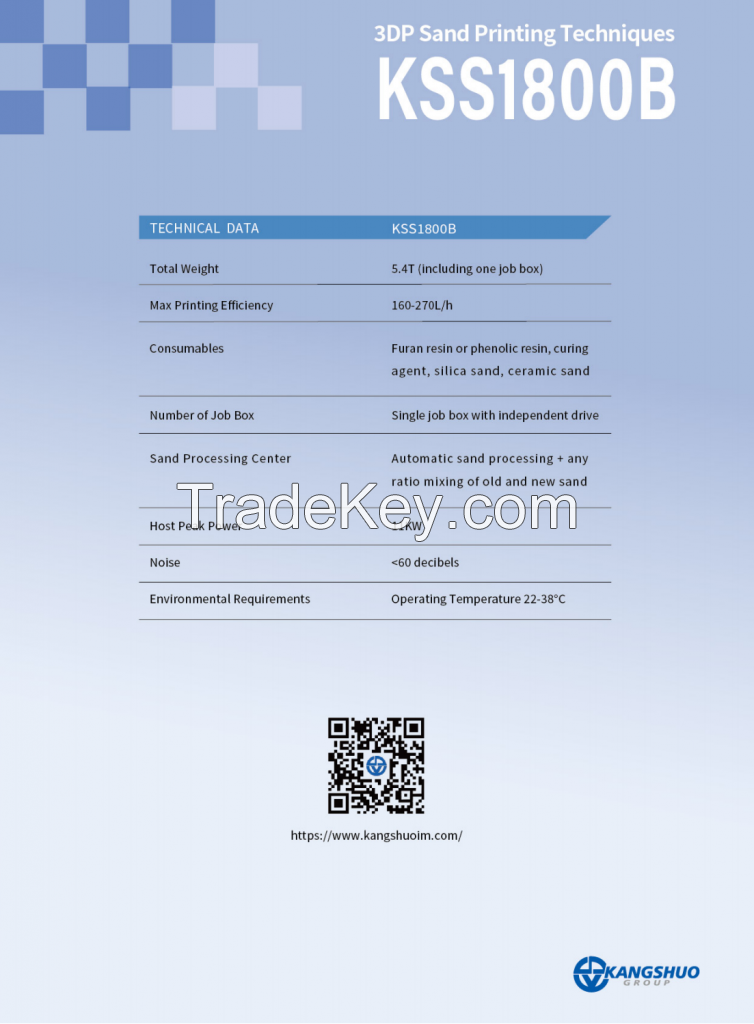

TECHNICAL DATA
KSS1800B

Total Weight   5.4T (including one job box)
Max Printing Efficiency    160-270L/h
Consumables   Furan resin or phenolic resin, curing agent, silica sand, ceramic sand
Number of Job    Box Single job box with independent drive
Sand Processing Center   Automatic sand processing + any ratio mixing of old and new sand
Host Peak Power     11KW
Noise    <60 decibels
Environmental Requirements   Operating Temperature 22-38°C
