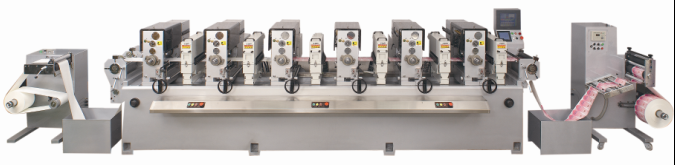

Intermittent Rotary Label Printing Machine

China

FD300

获取最新报价

-

-

-

-

-

-

T/T

-

现在联系

产品规格

Model : FD300 Paper Width : 50-300mm Color : 2-10C Full Rotary Feeding : 280*326mm Printing Speed : 12000/h

详情

1.    Servomotor ink supply system controlled by the touch screen,transform ink stably.

2.    Printing process of forward and backward micro adjustment can be adjusted on the touch screen.

3.    Ink rollers can be separated from the ink doctor when the machine is not working

4.    Tension control of various type of printing materials could be selected on the screen

5.    Angular adjustment for printing plates

6.    Second pass printing device

7.    Two servomotor operating synchronously at each station

8.    No reducter with the servomotor of paper drawing,keeping shape undamaged



Technical Parameters:



Model

FD 300-6C

Paper Width

50-300mm

Optional Station

2-10C

Full Rotary Feeding

280*326mm

Intermittent Feeding

Max

280*270mm

Min

50*30mm

Printing Speed

12000m/min

UV Dryer

1-5

3.6kw

6

4.8kw

Machine Dimension(L,W,H

4800*1500*1480

Machine Weight

5500kg

Main Power

Intermittent Rotary Label Printing Machine
