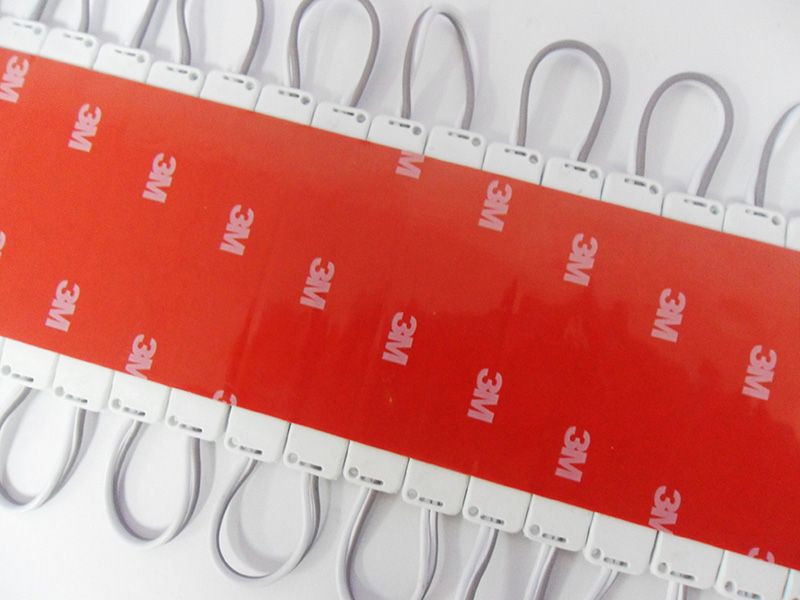

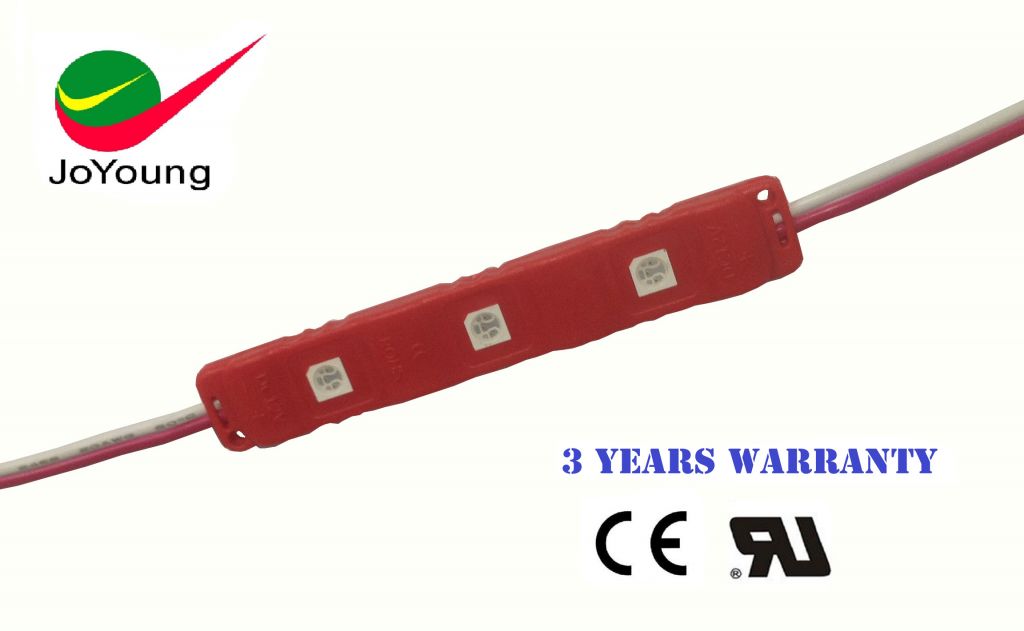

LED injection module

China

-

获取最新报价

-

-

-

-

-

-

-

-

现在联系

详情

  • Specifications:
    • Power: 0.75W
    • Input voltage: 12V DC
    • Color: green
    • LED type: 5050 SMD
    • LED quantity: 3 pieces
    • Dimensions: 73 x 12.5 x 7mm
    • Weight: 10kg, ±5%/1000 pieces
    • Cover materials: plastic and PCB
    • Working temperature: -40 to 60°C
    • Protection grade: IP67
    • PCB covered by resin
    • Working mode static voltage current: 18mA
    • Light performance
    • Luminous flux: 18 to 20lm (≥20lm)
    • Beam angle:
      • 3-chip 5050 SMD LED angle: 150 to 180°
  • Features:
    • Super high brightness: 5050 SMD LEDs water-resistant module adopts 3-chip SMD LEDs as luminous body with high intensity and can emit higher brightness at lower cost
    • So larger chip in LED
    • No spot
    • No shadow
    • Five colors are available: red, yellow, blue, green and white
    • Safe and stable
    • Maintenance-free
    • Low power consumption, up to 60% more energy efficient than neon and nice heat dissipation
    • Long lifespan: 50,000 to 80,000 hours
    • Totally water-resistant with IP65, works well under harsh conditions
    • Easy to install with mounting holes and 3M adhesive tape on back for convenient mounting
    • Eco-friendly
    • Certification: CE
    • RoHS Directive-compliant
  • Applications:
    • Commercial advertisement signs backlight
    • Channel letters backlight
    • Advertisement light box backlight and decoration
LED injection module LED injection module
