 router  CMQ**0

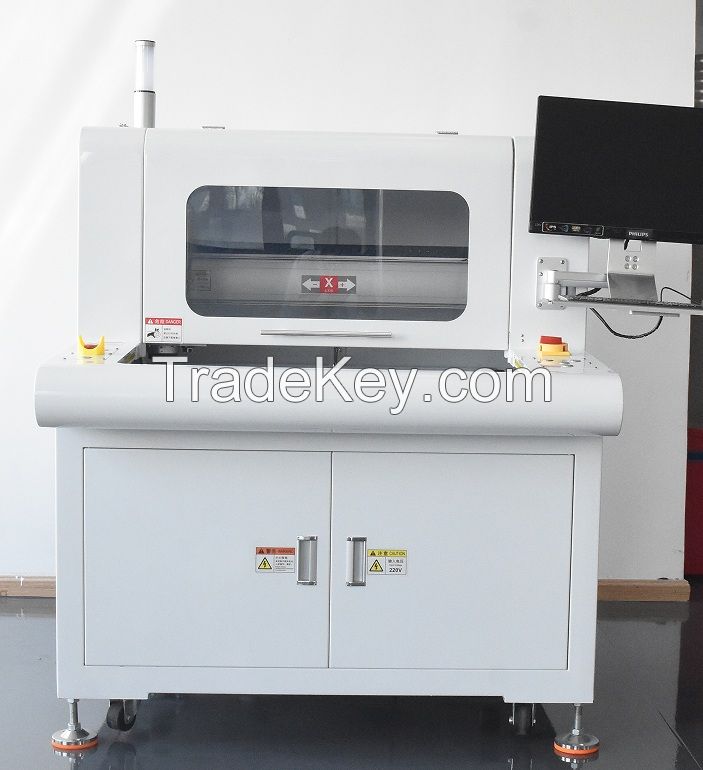

PCB Depaneling Machine Q-Series Overview

MOREL EQUIPMENTS CO., LIMITED is a professional manufacturer of advanced PCB depaneling solutions, based in Shenzhen, China. The companys Q-Series, including the Q**0, Q**0, Q**0A, and Q**0L models, represents state-of-the-art technology designed to enhance precision, efficiency, and automation in PCB separation processes. Featuring a user-friendly Chinese/English switchable software interface with a clear hierarchical layout and seven intuitive function menus, the machines ensure easy operation, quick learning, and intelligent editing and debugging through a panoramic physical product display.

The core innovation of the Q-Series lies in its advanced vision and programming system. Utilizing high-speed German Basler cameras, the machine employs a whole-board photo programming mode that enables accurate and rapid positioning of MARK points and cutting lines without manual CCD observation or XY-axis adjustments. This dual-platform imaging approach颠覆s traditional programming by allowing users to define cutting paths simply by selecting the first and last points in the image, significantly reducing programming and debugging time and supporting unmanned remote operation.

Further enhancing reliability and automation, the Q**0A model includes automatic tool change, real-time broken tool detection, and automatic tool height correction. These functions ensure continuous operation by monitoring tool condition, replacing tools at the end of their life cycle, and maintaining consistent cutting depth. This eliminates risks associated with manual tool handling, such as height deviation, PCB damage, or incorrect cutting of bottom-side components, thereby improving process stability and product quality.

Designed for high-volume production, the Q-Series features a dual-table working mode that allows uninterrupted processing—while one table is in operation, the other can be loaded or unloaded, maximizing productivity. Operator safety is ensured through integrated safety gratings, and specialized board fixtures reduce handling time. Suitable for consumer electronics, home appliances, automotive electronics, and other multi-connected PCB applications, these machines combine precision, intelligence, and safety to meet modern manufacturing demands.
