Characteristics |
Description |
|
Model No. |

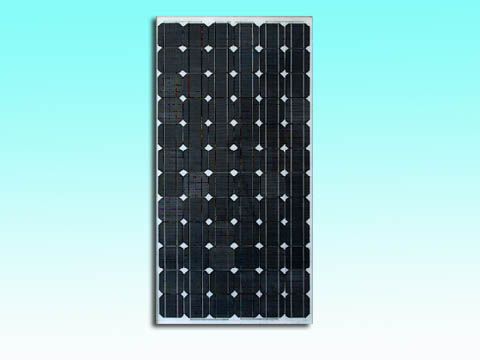

HFP-1230 |
|
Maximum Power |
230Wp |
|
Efficiency Of Cell |
15.5-16.8% |
|
Cell Brand |
German/Taiwan |
|
Power Tolerance |
1%～3% |
|
Optimum Operating Voltage |
39.4V |
|
Optimum Operating Current |
6.14A |
|
Open Circuit Voltage |
57.6V |
|
Short Circuit Current |
5.71A |
|
Maximum System Voltage |
1000V DC |
|
Voltage Temperature Coefficient |
-155±10mV/℃ |
|
Current Temperature Coefficient |
+0.06±0.01%/℃ |
|
Power Temperature Coefficient |
-0.5±0.05%/℃ |
|
Dimension |
1950*985*50mm |
|
Weight |
17.2kg |
|
Frame Material |
Clear anodized aluminium frame |
|
Operating Temperature |
-40℃～+85℃ |
|
Storage Temperature |
from-40℃~+85℃ |
|
Voltage Standoff |
AC200V DC3000V |
|
Maximum Wind Resistance |
60m/s |
|
Surface Maximum Load Capacity |
200Kg/㎡ |
|
Maximum Hail Load Capacity |
25mm,80km/h |
